High-Efficiency Capacitor Motor
This series capacitor motor is engineered specifically for home appliances, such as electric fans, requiring reliable and continuous operation. Designed with a standard S1 duty cycle and Insulation Class B, it ensures durability and consistent performance in demanding residential environments. The motor features a robust construction with clockwise rotation, making it a versatile component for various cooling and ventilation applications.
Electrical Specifications
- Rated Voltage
- 220 V
- Frequency
- 50 Hz
- Rated Power
- 120 W
- Rated Current
- 1 A
- Capacitor Requirements
- 5uF / 450V
Mechanical Specifications
Duty Cycle
S1
- Insulation Class
- Class B
- Rotation Direction
- Clockwise (CW)
- Pole Count
- 4

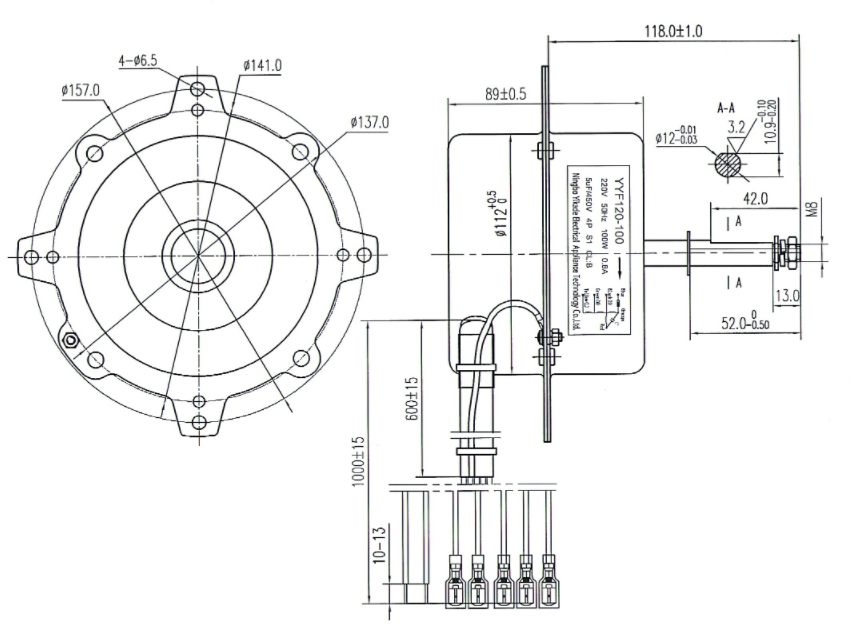

Technical Dimensions
Key Dimensions
| Feature | Value |
|---|---|
| Motor Body Diameter | Ø112±0.5mm |
| Mounting Hole Circle | Ø157.0mm |
| Shaft Diameter | Ø12-0.03mm |
| Shaft Length | 52.0±0.50mm |
| Overall Length | 118.0±1.0mm |
