Cantilever Sump Slurry Pump
This heavy-duty cantilever sump pump is designed for handling abrasive and corrosive liquids and slurries. The design makes it ideally suited for continuous handling while submerged in sumps or pits.
Technical Specifications
Overview
Heavy-Duty Cantilever Sump Pump
The TS/TSR heavy-duty cantilever sump pump is engineered for applications requiring superior reliability and durability compared to conventional vertical process pumps. Its robust cantilever design eliminates the need for submerged bearings, packing, or mechanical seals, making it ideal for continuous handling of abrasive and corrosive slurries in sumps or pits. The pump features a high-capacity double suction design, with options for recessed impellers and suction agitators to handle large particles efficiently.

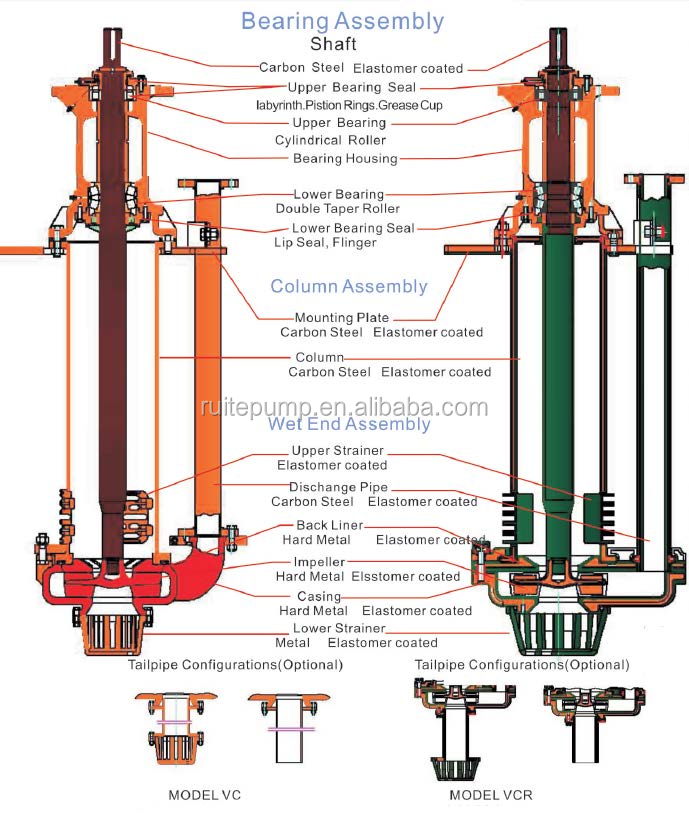

Design & Construction
Key Design Features
Fully CantileveredNo Submerged BearingsDouble Suction DesignLarge Particle Handling
- Available Construction Types
- Hard Metal ConstructionRubber Covered Construction
Performance Data

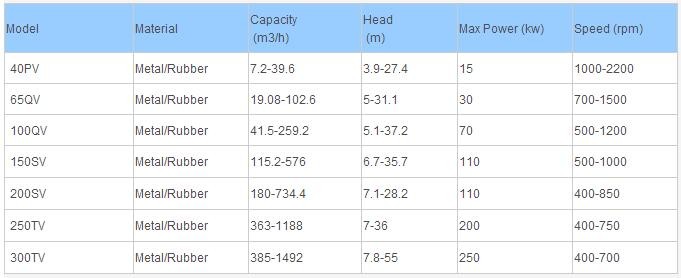

Model Performance Specifications
| Model | Capacity (m³/h) | Head (m) | Max Power (kW) | Speed (rpm) |
|---|---|---|---|---|
| 40PV | 7.2-39.6 | 3.9-27.4 | 15 | 1000-2200 |
| 65QV | 19.08-102.6 | 5-31.1 | 30 | 700-1500 |
| 100QV | 41.5-259.2 | 5.1-37.2 | 70 | 500-1200 |
| 150SV | 115.2-576 | 6.7-35.7 | 110 | 500-1000 |
| 200SV | 180-734.4 | 7.1-28.2 | 110 | 400-850 |
| 250TV | 363-1188 | 7-36 | 200 | 400-750 |
| 300TV | 385-1492 | 7.8-55 | 250 | 400-700 |
