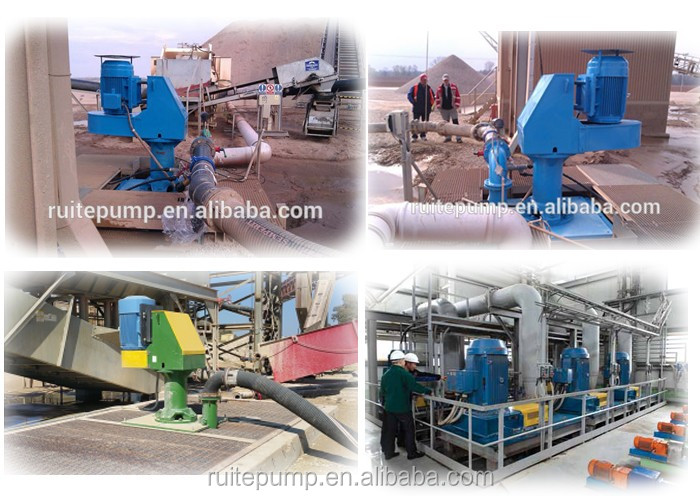

Heavy Duty Cantilever Sump Pump

The TS/TSR series is a heavy-duty cantilever sump pump designed for applications requiring greater reliability and durability than conventional vertical process pumps. Its robust cantilever design eliminates the need for submerged bearings or mechanical seals, making it ideally suited for continuous handling of abrasive and corrosive slurries. Available in both hard metal and elastomer-lined constructions, these pumps are engineered for the most demanding industrial environments.

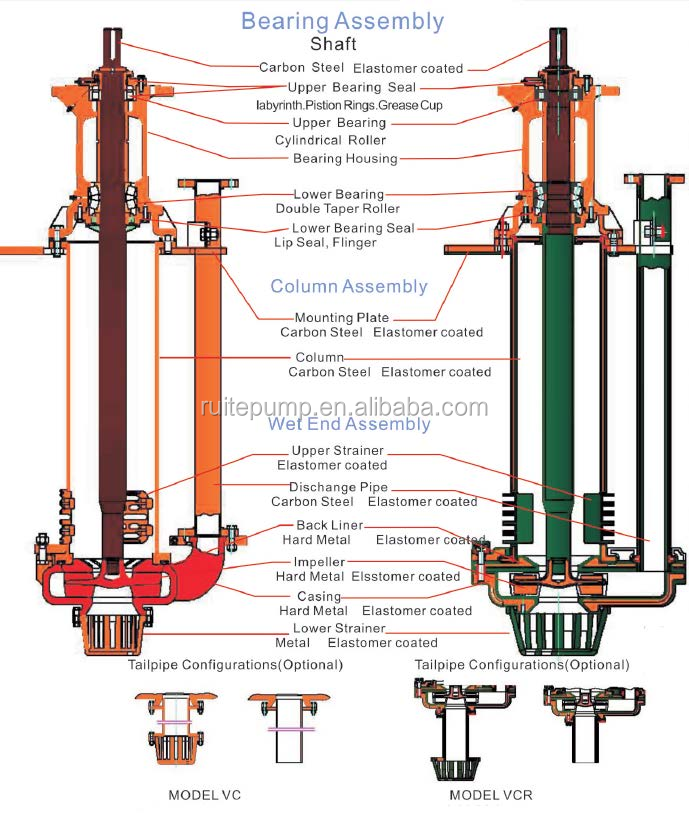

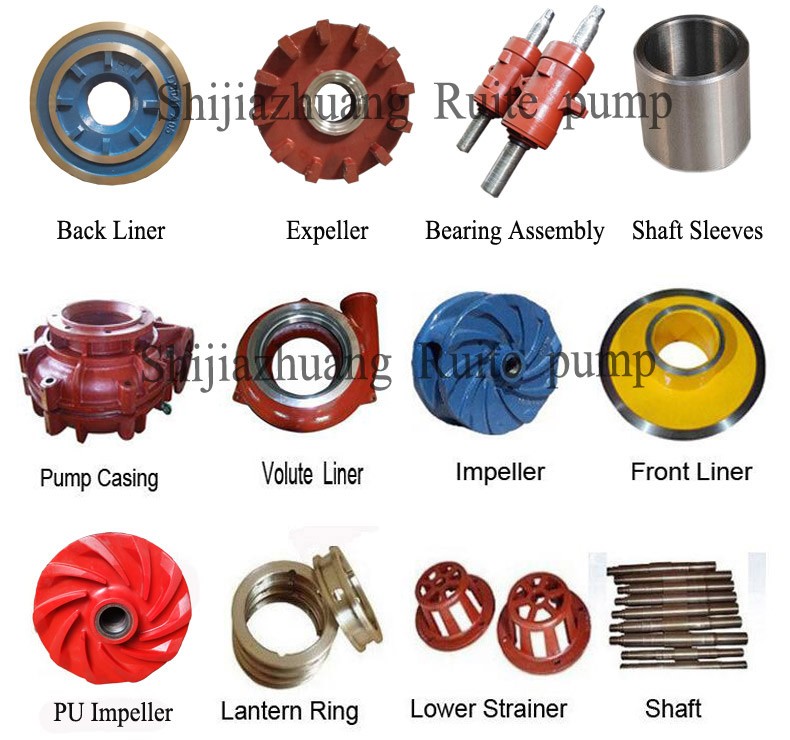

Internal structure diagram of the cantilever sump pump — Detailed breakdown of the bearing assembly, column assembly, and wet end components showing the cantilevered design.

Key Features

Design Advantages

Fully cantilevered design eliminates submerged bearings and packing
Double suction impeller design reduces thrust load and eliminates shaft seals
Optional recessed impeller for large particle handling
Available in hard metal (TS) or rubber-covered (TSR) construction
Suction agitator options available for settled solids

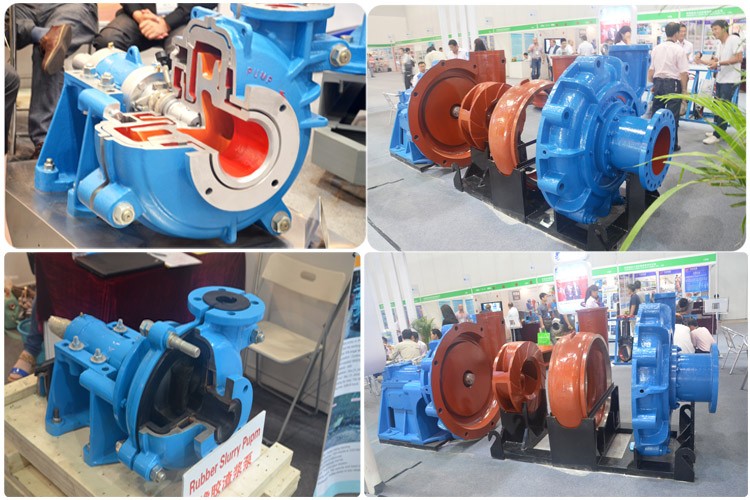

Industrial centrifugal pump assembly — Robust casing and mounting plate construction for stable industrial operation.

Technical Performance

Performance Range

1,492 m3/h

Max Capacity

55 m

Max Head

250 kW

Max Power

Model Comparison Table

Model	Capacity (m3/h)	Head (m)	Max Power (kW)	Speed (rpm)
40PV	7.2 - 39.6	3.9 - 27.4	15	1000 - 2200
65QV	19.08 - 102.6	5 - 31.1	30	700 - 1500
100QV	41.5 - 259.2	5.1 - 37.2	70	500 - 1200
150SV	115.2 - 576	6.7 - 35.7	110	500 - 1000
200SV	180 - 734.4	7.1 - 28.2	110	400 - 850
250TV	363 - 1188	7 - 36	200	400 - 750
300TV	385 - 1492	7.8 - 55	250	400 - 700
