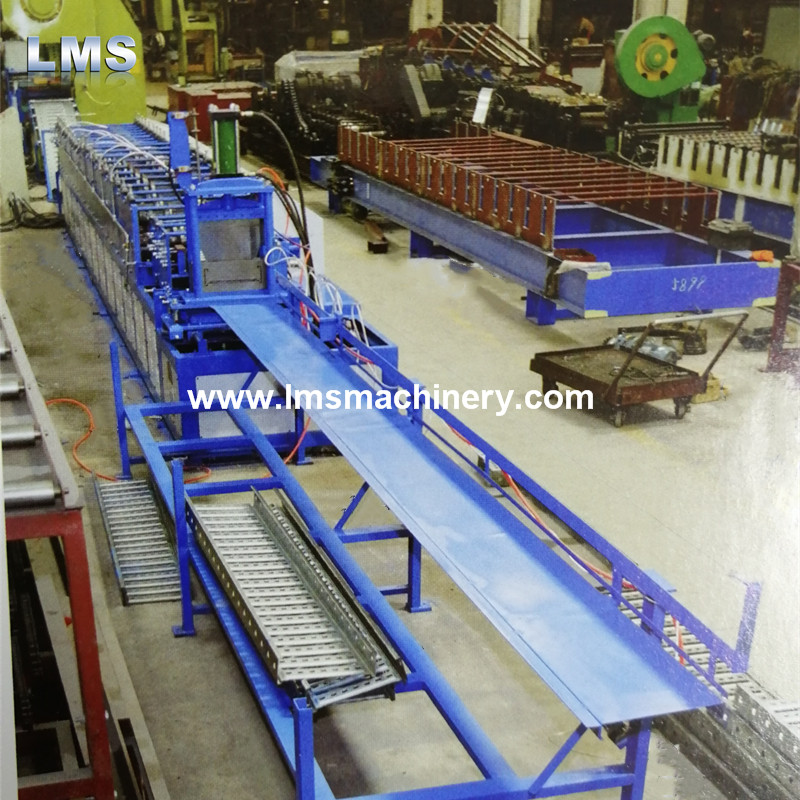

Cable Tray Roll Forming Machine
The cable tray roll forming machine efficiently manufactures cable trays with precision. Metal strips are progressively shaped into the desired cable tray profile through a series of rollers.
Technical Specifications
Overview
Automated Cable Tray Production
This fully automatic production line is engineered for high-efficiency manufacturing of cable support systems suitable for offshore, marine, and onshore building industries. The system utilizes advanced electric control and touch-screen operation, enabling streamlined mass production with consistent quality. By integrating decoiling, punching, roll forming, and cutting into a single automated workflow, it significantly reduces manual labor and increases throughput.
System Configuration
Production Line Components
- Decoiler
- Punching Machine
- Roll Forming Machine
- Cut-Off Device
- Control Interface
- Electric ControlTouch Screen OperationProgrammable Logic Controller (PLC)
Operational Features
Key Operational Advantages
- Automated feeding system
- Precise length control via integrated cutting system
- Easy parameter adjustment for speed and dimensions
- Modular design for maintenance and customization
Safety Standards
Emergency Stop ButtonsProtective Guarding
