Cable Tray Roll Forming Machine

Professional Cable Tray Manufacturing Solution

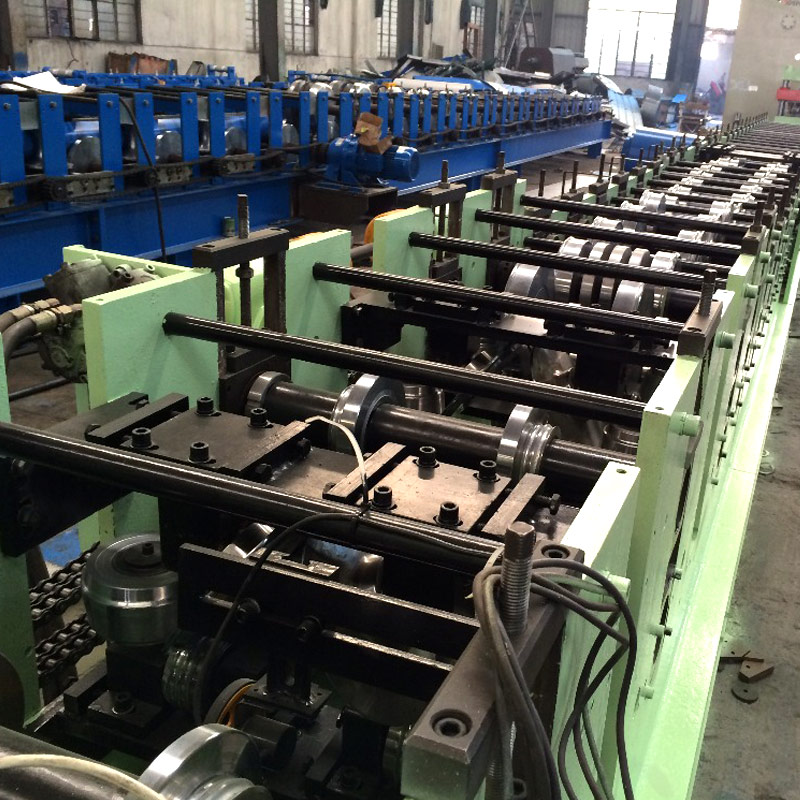

This high-precision roll forming machine is engineered for the efficient production of ventilated cable trays used in industrial and commercial electrical distribution. It features a robust 350mm H-steel body and GCr15 quenched rollers to ensure long-term durability and consistent profile accuracy. With integrated PLC controls and an automated cutting system, it provides a reliable solution for high-volume manufacturing of galvanized steel cable management systems.

Performance Metrics

Forming Process

• 14 Total forming steps
• 9 Shafts dedicated for leveling
• 4 Step side wheels for coil-input deviation control
• Side wheel rotation forming to reduce friction

Mechanical Specifications

Operation Features

• Outside debugging for size changes
• Easy and fast debugging via side wheel rotation
• Stable and low-noise cycloid reducer

Technical Support

Technicians are available for international dispatch to assist with machine setup and repair. Buyers are responsible for travel costs (visa, airfare, accommodation) and a daily service fee.

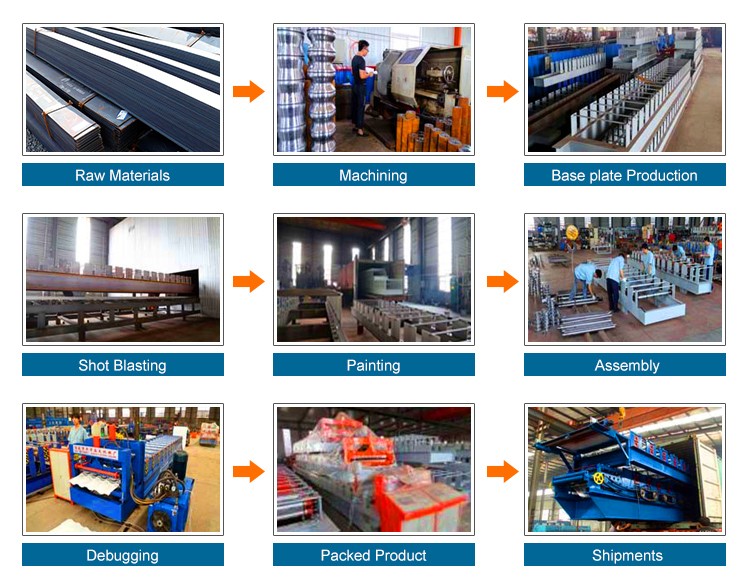

Manufacturing Workflow

• Raw Material Preparation
• Machining & Base Plate Production
• Shot Blasting & Painting
• Assembly & Debugging
• Packing & Shipment
