Cable Tray Roll Forming Machine

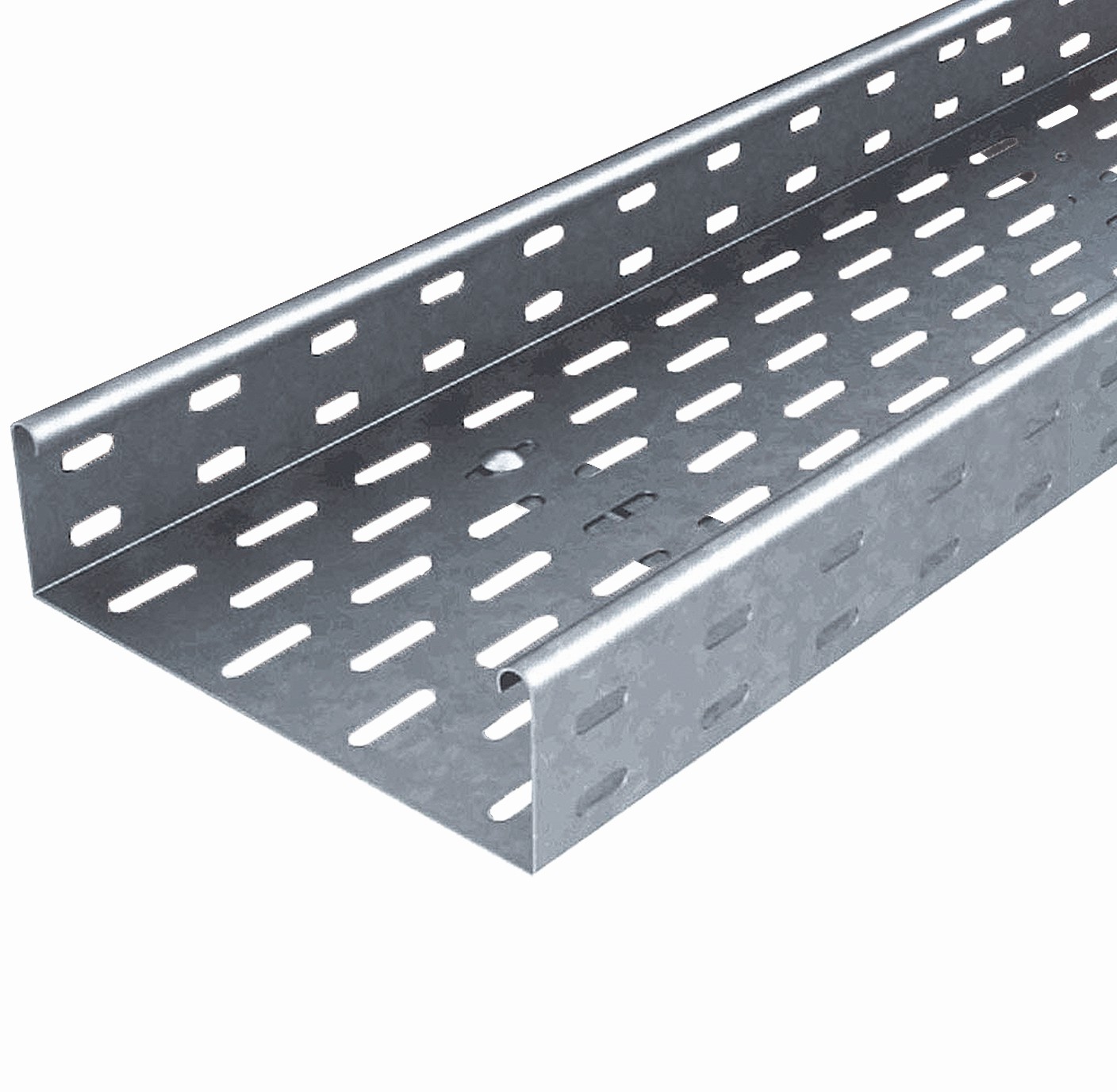

This machine produces cable trays with perforations for cable management systems. It is constructed from robust metal to ensure durability and consistent performance.
Technical Specifications
Product Overview
High-Efficiency Cable Tray Production

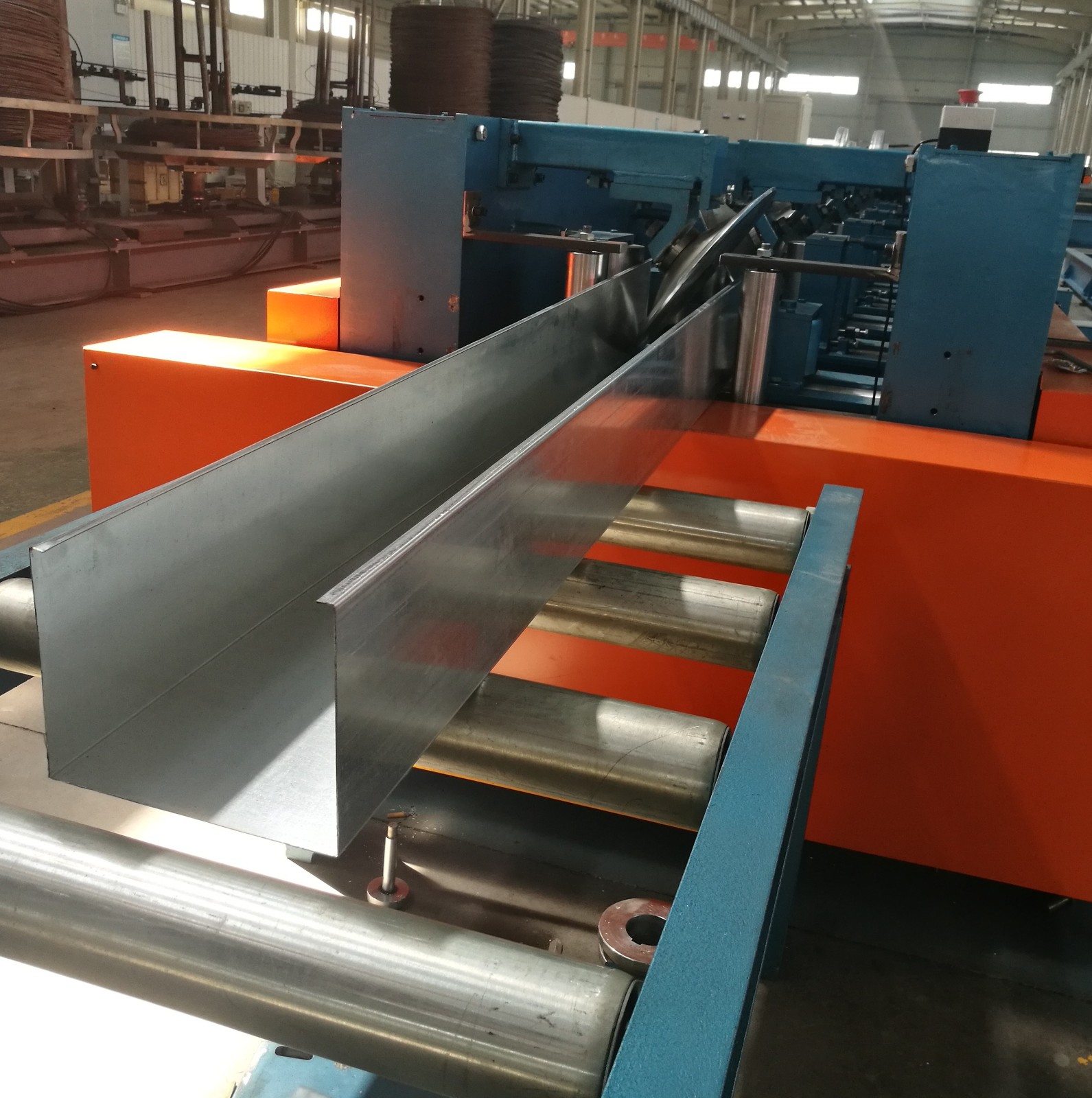

This automated roll forming machine is engineered for the high-speed, precise manufacturing of various cable tray types including trough and ladder styles. Featuring an integrated hydraulic punching system and rapid size changeover capabilities via a telescope shaft, it ensures minimal downtime and consistent output. The system is designed for ease of operation and supports remote technical assistance to maintain optimal production efficiency.
Technical Specifications
Performance Metrics
10 m/min
Production Speed
1 mm
Size Tolerance

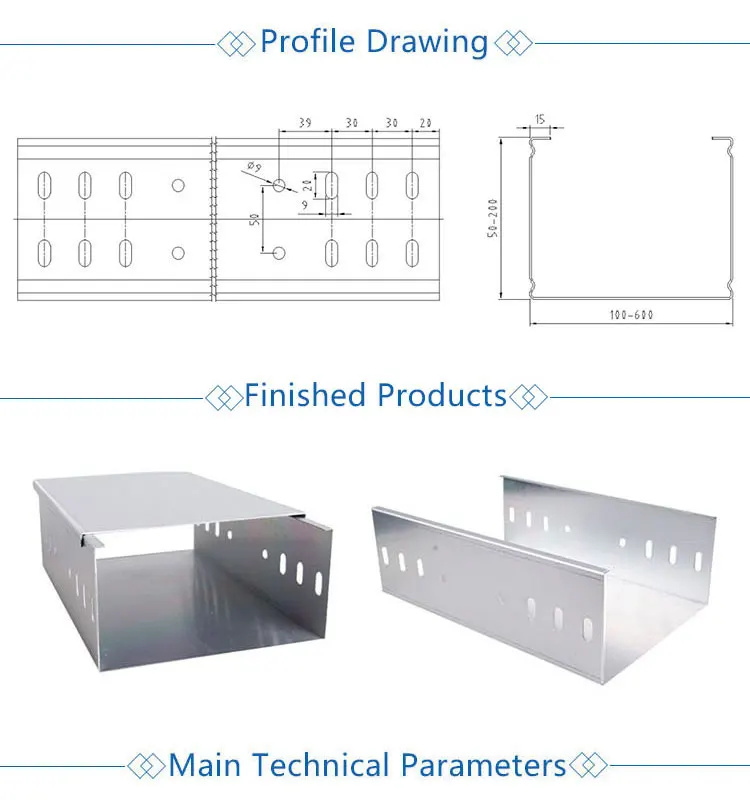

Forming Range
| Parameter | Range |
|---|---|
| Tray Width | 100-600mm |
| Tray Height | 50-200mm |
| Material Thickness | 0.6-2.0mm |
| Feeding Width | 200-1050mm |
- Material Compatibility
- Galvanized steel coilStainless steel coilAluminium sheet coil
Key Features
Operational Features

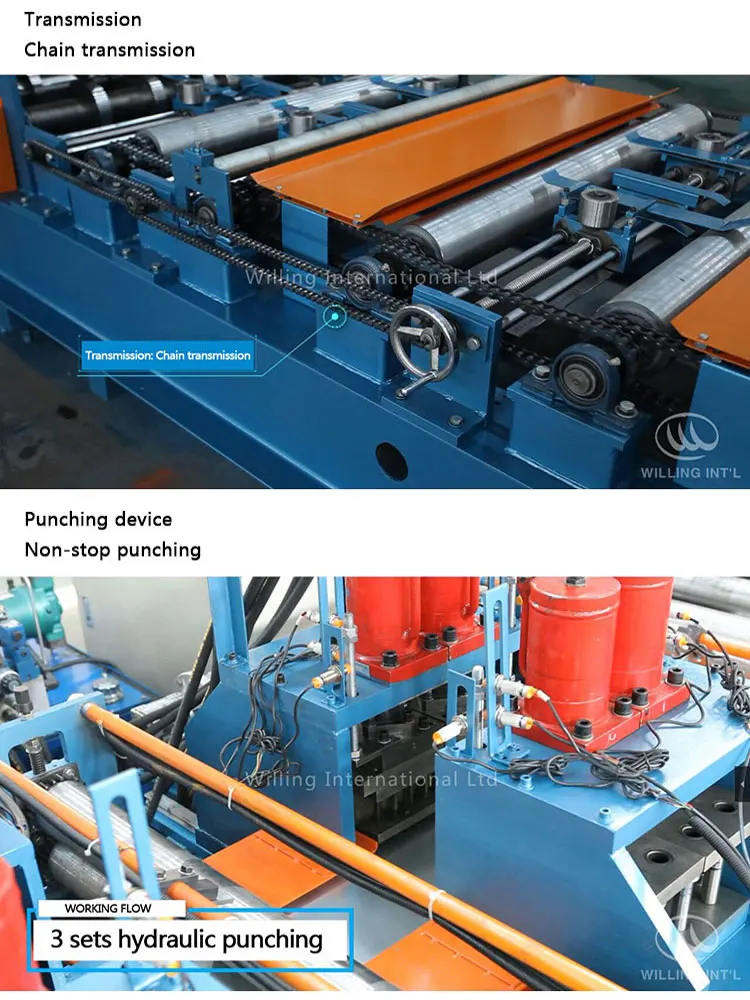

- Integrated hydraulic punching device for radiation holes
- Telescope shaft for rapid size changeover without tool change
- Pre-cutting device for finished products

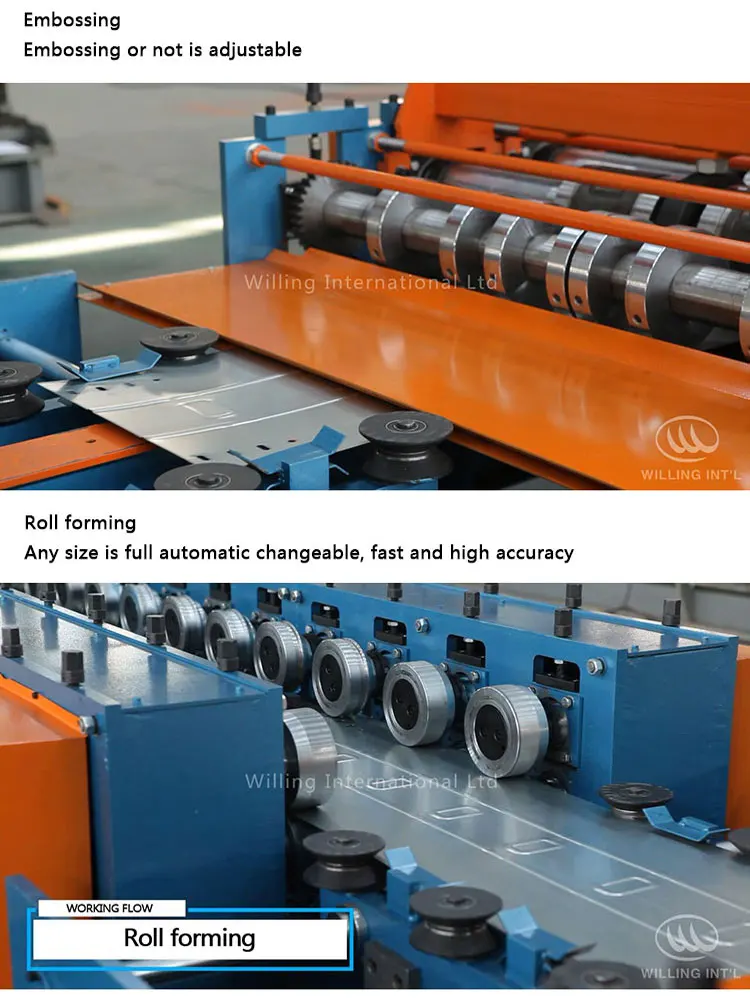

- Adjustable embossing capabilities
- Fully automatic size change functionality
Compliance
CEISO 9001:2008
