Cable 3D Torsion Tester
This cable torsion tester is designed for comprehensive evaluation of cable torsion resistance. It accurately measures the torsional strength and behavior of cables under three-dimensional stress conditions, providing critical data for quality control and product development.
Technical Specifications
Product Overview

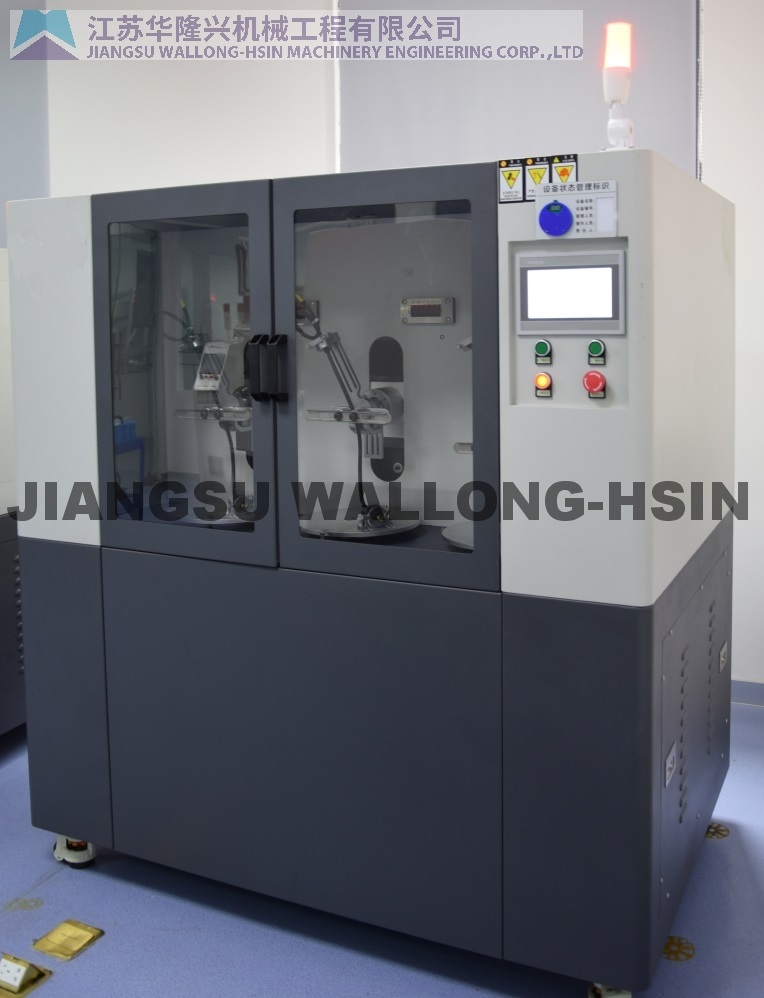

Comprehensive 3D Cable Torsion Testing
The Cable 3D Torsion Tester is a high-precision testing system designed for synchronous torsion-bending combined stress evaluation. Engineered for international standards such as TUV, VDE, and UL, it enables manufacturers to verify the durability of high-flexible cables and metal wires under repetitive physical deformation. Featuring an automated, unattended shutdown mechanism and advanced PLC control, this machine ensures reliable quality supervision for wire, rope, and cable production environments.
Test Performance
Key Operational Metrics
Technical Specifications
Testing Parameters
| Parameter | Specification |
|---|---|
| Sample diameter | 1.0-30mm |
| Bending angle | ±12° |
| Torsion angle | ±360° |
| Bending/Torsion gap | 100-300mm |
| Counter range | 0-99999999 |
- Electrical Requirements
- 220V, 50 / 60Hz, 10A
Standards & Compliance
- Compliance Certification
- TUVVDEUL
Key Features
Automation Capabilities
- Automated circuit monitoring
- Automatic shutdown upon wire break
- Synchronous or independent torsion-bending control
- Multi-channel resistance monitor integration
System Configuration
Core Components
| System | Component |
|---|---|
| Control | PLC Controller & Color Touch Screen |
| Drive | Panasonic Servo Motor & Driver |
| Transmission | Planetary Reducer & Synchronous Belt |
| Structure | 45# Steel & Aluminum Alloy Fixtures |
