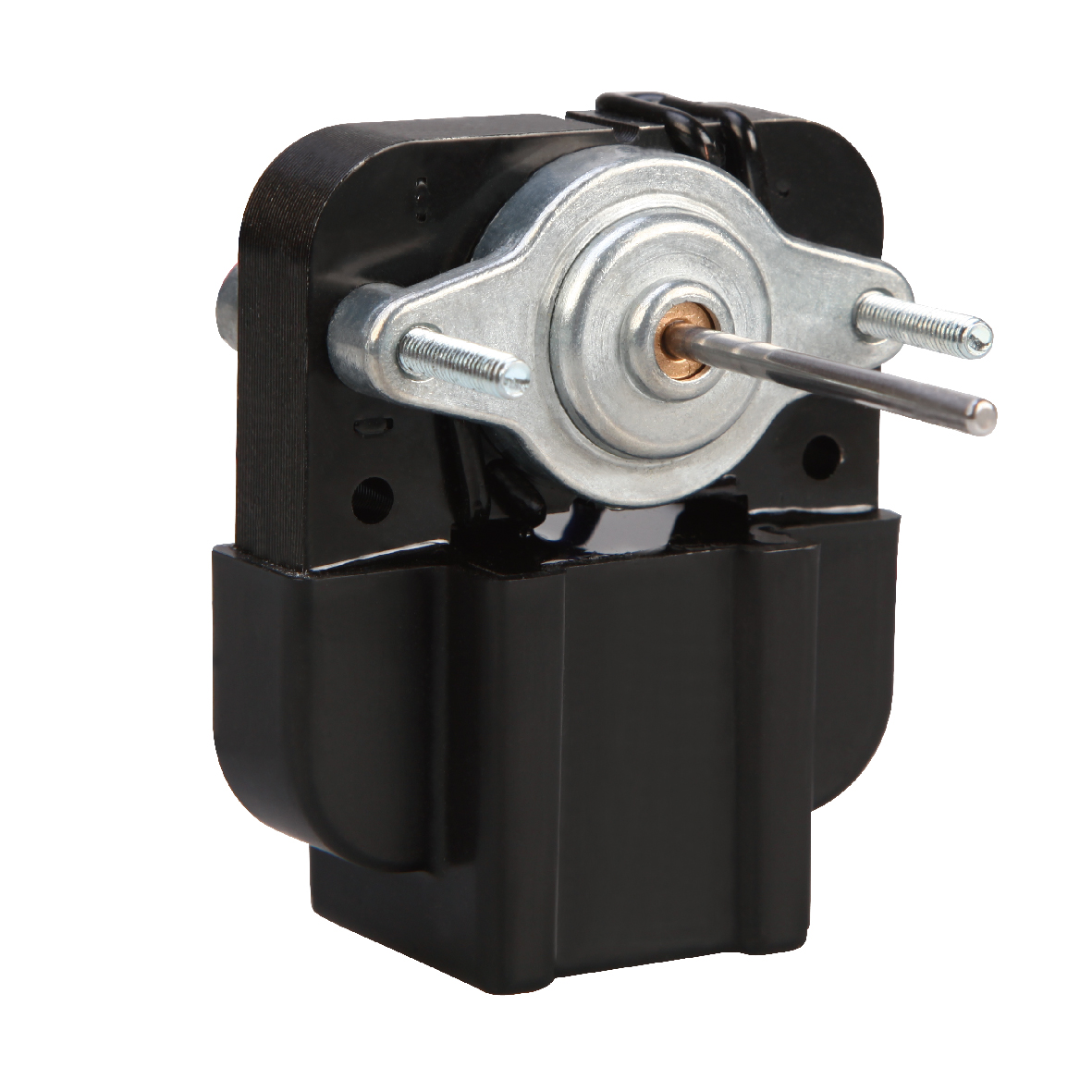

C-Frame Motor for Air Conditioners and Ventilation
This C-frame motor is commonly used in air conditioners and ventilation equipment. It features a compact design with a shaft extending from the center, designed for connecting to a fan or other rotating component.
Technical Specifications
Product Overview
High-Efficiency Shaded Pole Motors
The YZF series C-frame motor is designed for optimal performance in refrigeration, air conditioning, and ventilation systems. These single-phase, 4-pole motors offer versatile output power ranging from 2W to 34W to accommodate various industrial needs. Built for reliability, the series features robust insulation and thermal protection, ensuring a service life exceeding 20,000 hours in diverse operating environments.
Technical Specifications
Output Power Range
2 W
Min Output
34 W
Max Output
- Protection Class
- IP42 (IP44 available on request)
- Insulation Class
- B
- Ambient Temperature
- -30°C to 50°C
Electrical Ratings
Voltage & Frequency
- 220V-240V, 50/60Hz
- 110V-120V, 60Hz
Safety & Compliance
Protection Type
| Output Power | Protection Mechanism |
|---|---|
| Below 10W | Impedance Protected |
| Above 10W | Thermal Protected |
- Approvals
- CEVDEULCCCRoHS Compliant
