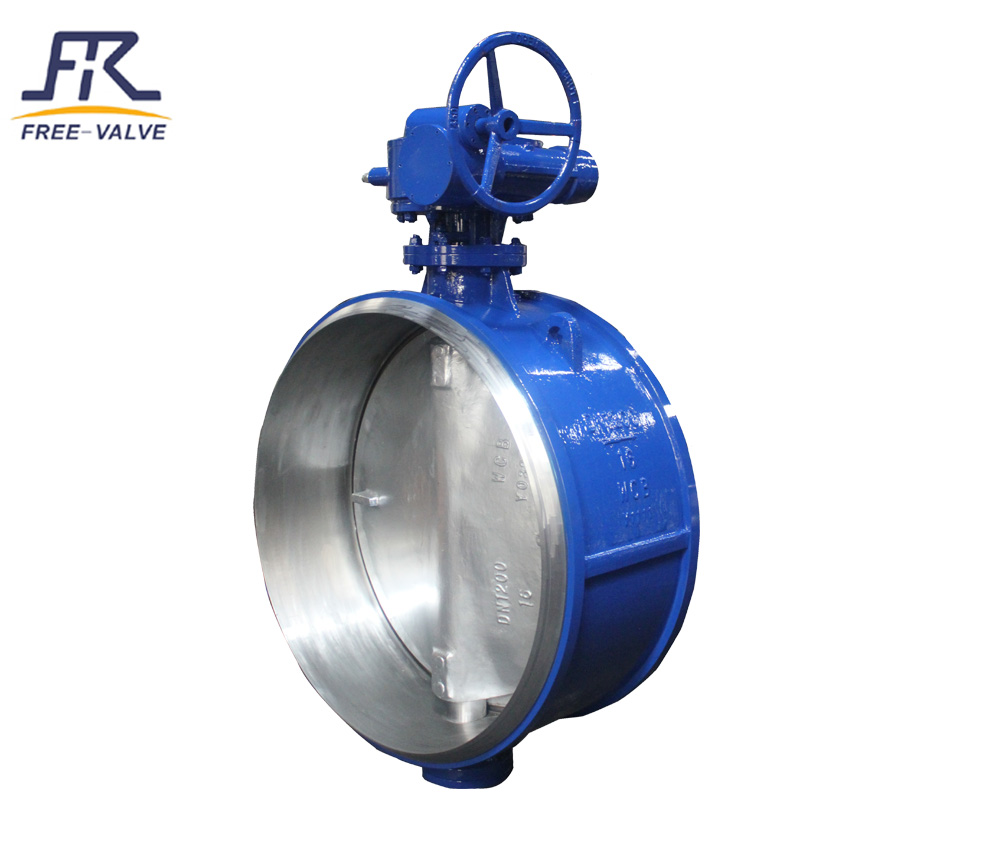

Butt Welded Triple Offset Butterfly Valve
This butt welded butterfly valve features a triple offset structure, making it suitable for high-temperature, high-pressure, and corrosive environments. These quarter-turn valves are used for isolating or regulating flow.
Technical Specifications
Overview
High-Performance Triple Offset Design
These triple offset butterfly valves are engineered for demanding industrial environments, including high-temperature and high-pressure applications. Featuring a robust butt-welded connection, they ensure a leak-proof seal and structural integrity in water, gas, and chemical processing systems. The design allows for easy maintenance, with replaceable disc seals that help reduce long-term operational costs.
Technical Specifications
Operating Methods
- Worm gear
- Electric
- Pneumatic
- Size Range
- NPS 6 - NPS 42DN 150 - DN 1050
- Pressure Ratings
- Class 150Class 300PN 10PN 40
- Connection Type
- Butt weld
Materials & Construction
Body Materials
Carbon SteelStainless Steel
Sealing Materials
Stainless steelHard alloy
Standards & Compliance
Industry Standards
| Category | Standards |
|---|---|
| Pressure test | GB/T13927, API598 |
| Structure length | GB/T12221, API609 |
| Jointing dimension | GB/T12224, ANSI B16.25 |
Applications
Suitable Industries
- Heating systems
- Chemical processing
- Petroleum & Refining
- Natural gas
- Energy sector
- Food industry
- Mining
