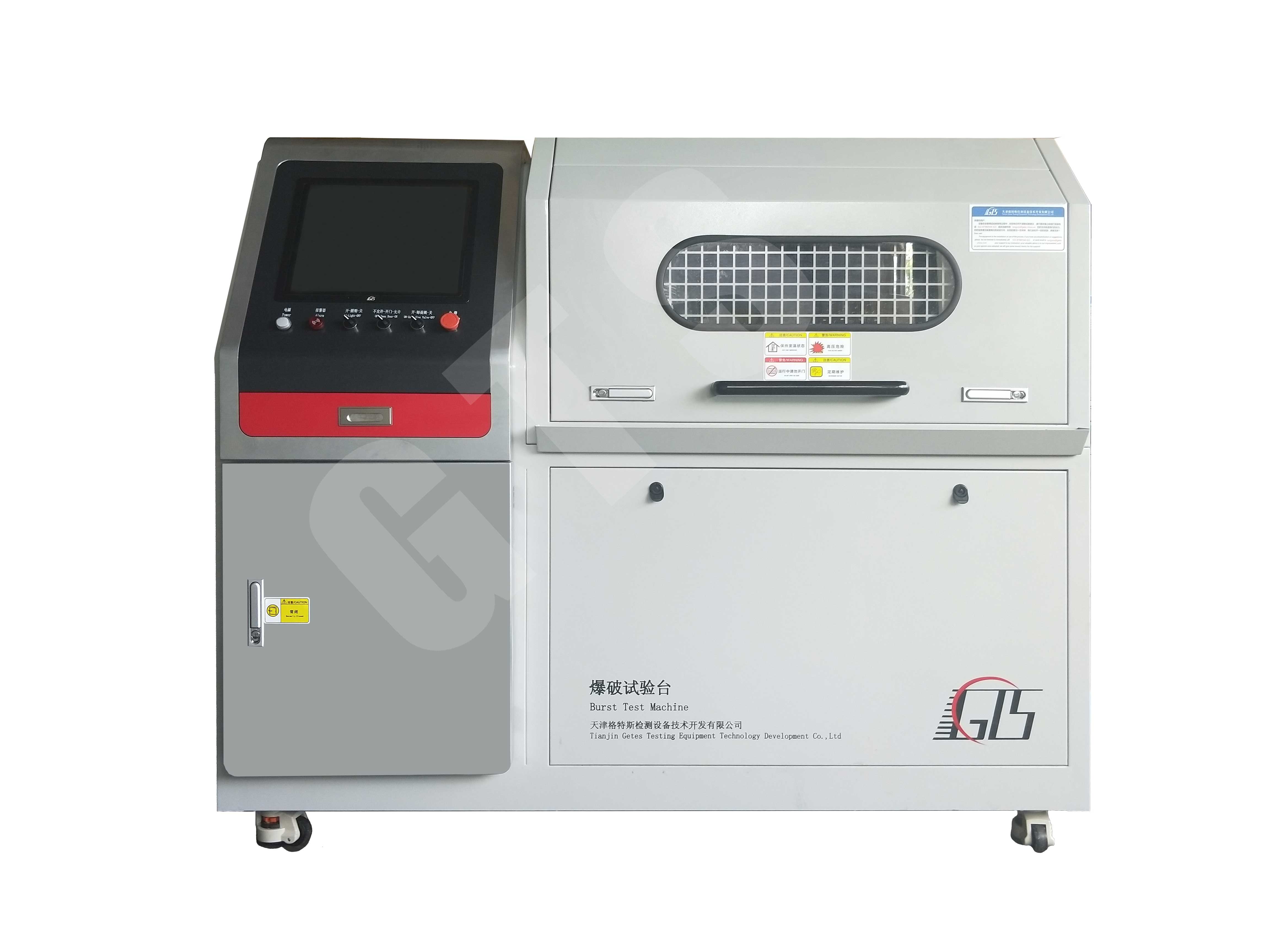

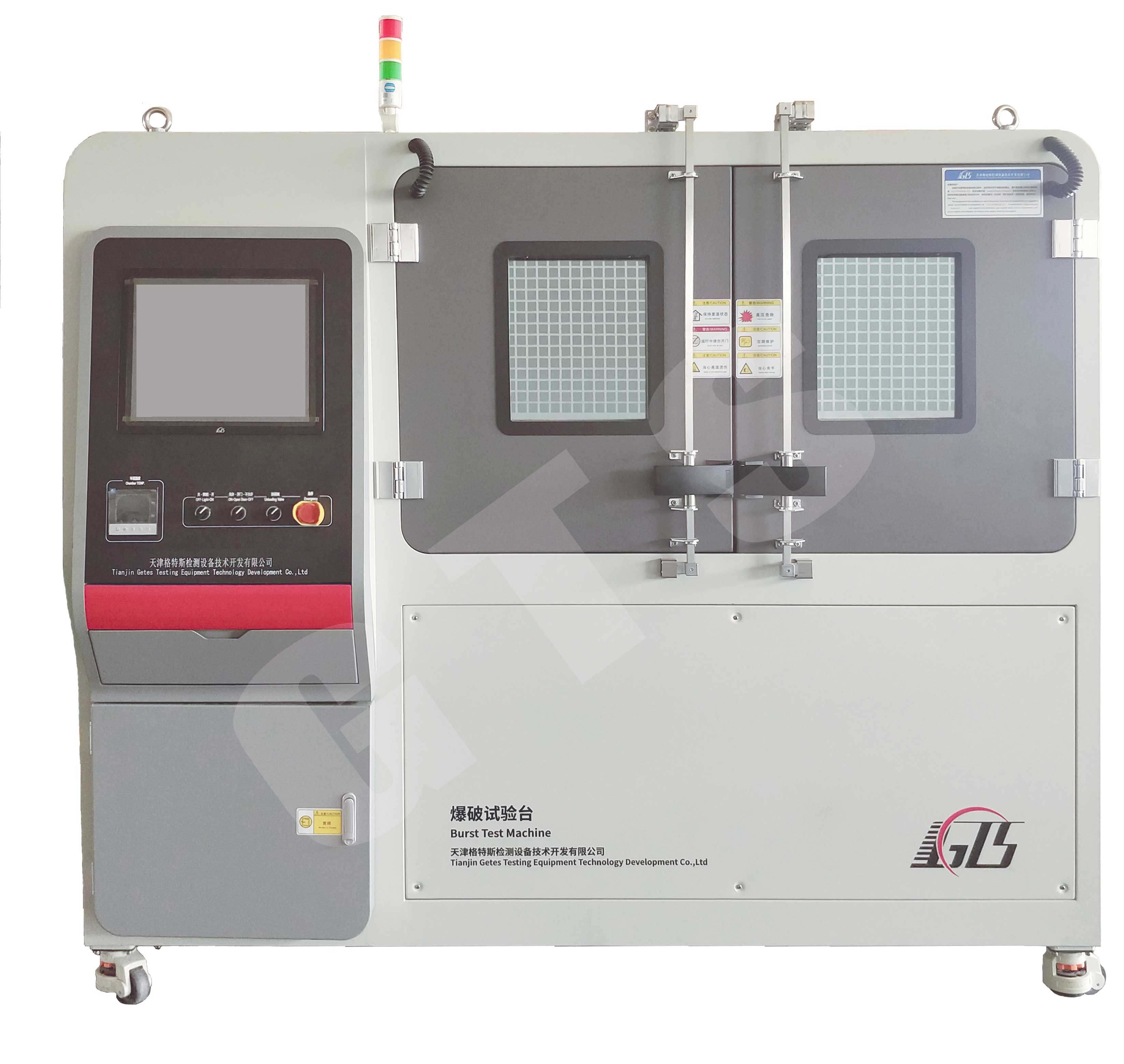

Burst Pressure Testing Machine
This burst test stand is used for proof pressure and burst testing of products such as radiators, condensers, and pipelines. Test pressure, pressurization rate, and temperature parameters can be set, and the machine completes testing automatically.
Technical Specifications
Product Overview
Industrial Burst Pressure Testing
This advanced burst pressure testing machine is engineered for rigorous material and component validation. It offers precise control over pressurization rates and supports a wide range of testing environments and media types. Designed with operator safety in mind, it includes advanced interlocks, viewing windows, and emergency stop systems to ensure secure operation during high-pressure testing procedures.
Performance Metrics
Maximum Test Pressure
500 MPa
Max Pressure
- Pressurization Rate
- 300 MPa/min
Sample Specifications
Sample Capacity
| Dimension | Range |
|---|---|
| Diameter | Φ3 - Φ150 mm |
| Length | 100 - 1000 mm |
Technical Capabilities
Temperature Ranges
| Type | Range |
|---|---|
| Environment | -60 to 180 °C |
| Media | RT to 180 °C |
- Compatible Media
- WaterWater-GlycolHydraulic Oil
Testing Procedures
Standard Procedures
- Constant speed pressurization to burst
- Constant speed pressurization with pressure maintaining to burst
- Constant speed pressurization with pressure maintaining to relief
- Multi-stage pressurization and pressure maintaining cycles
Safety & Operation
Safety Features
Pressure Relief ProtectionDoor InterlocksEmergency StopViewing Window
