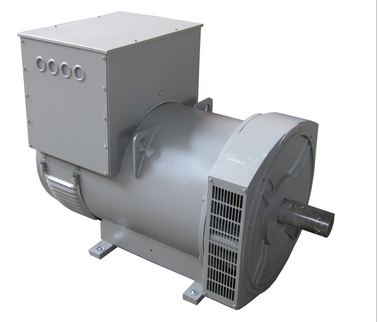

Brushless Three-Phase Synchronous Generator with AVR
This three-phase synchronous generator features a brushless design and automatic voltage regulation (AVR). The generator is engineered for efficient power generation in a variety of applications.
Technical Specifications
Overview
High-Performance Brushless Synchronous Generator
The MC series A.C. Alternators utilize advanced technology to deliver reliable three-phase power for a variety of industrial applications. Featuring a brushless design and Automatic Voltage Regulation (AVR), these units ensure stable voltage output with minimal maintenance requirements. Engineered with a 2/3 pitch winding and CAD-optimized stator cores, they provide exceptional power quality with very low waveform distortion.
Technical Standards
- Regulatory Compliance
- GB755IEC60034NEMA
Electrical Performance
Standard Features
- Voltage adjustment
- Stability adjustment
- Under frequency roll off
- Over exciting protection
- Low radio interference
- Phase
- Three-Phase
- Voltage Regulation
- Automatic Voltage Regulator (AVR)
Construction & Insulation
Insulation System
Class H
Winding Configuration
- Stators: 2/3 pitch winding
- Rotors: Fixed sequential damper winding
Design Excellence
- Stator Core Design
- CAD-optimized landler design for low waveform distortion
- Mechanical Properties
- High mechanical strength for rotating components with high build static windings
