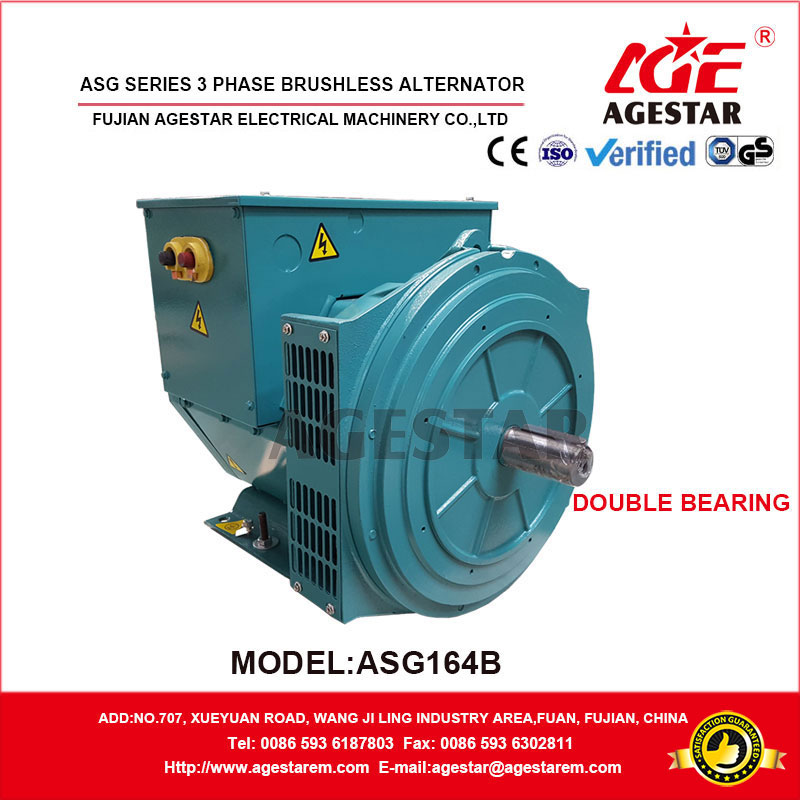

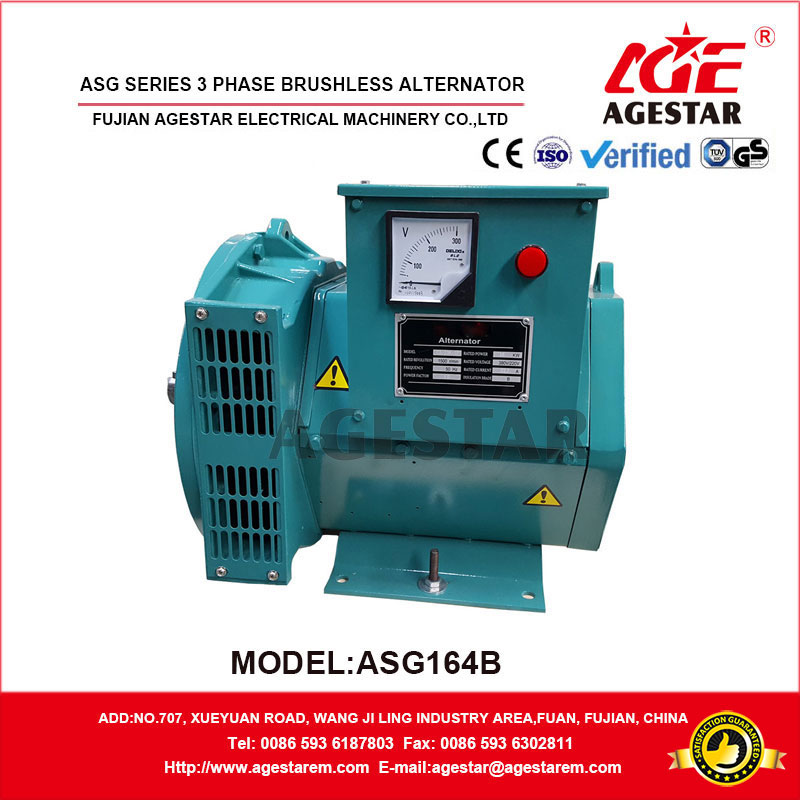

Brushless Synchronous AC Alternator
This is a synchronous AC alternator with a brushless design. It is suitable for various industrial and commercial power generation needs.
Technical Specifications
Product Overview
High-Efficiency Synchronous Alternator
The ASG164 series is a three-phase synchronous AC brushless alternator designed for robust power generation. By utilizing an automatic voltage regulation (AVR) system and a brushless excitive magnetic machine, this unit eliminates the maintenance issues associated with traditional brushes and slip rings. It delivers stable performance, reduced wireless interference, and reliable output suitable for demanding industrial applications.
Technical Specifications
- Model
- ASG164B
- Configuration
- Double Bearing
- Insulation Level
- Class H (125k rise)Class F (105k rise)
Performance Metrics
Steady-State Voltage Regulation
0.5 %
Regulation Rate
Waveform Distortion Rate
| Power Rating (PN) | Max Distortion |
|---|---|
| > 100 KW | ≤ 2.5% |
| ≤ 100 KW | ≤ 4.0% |
Operating Stability
- Voltage setting range: ≥±10% Un
- Voltage deviation (asymmetric load): ≤5%
- Cold-to-hot state variation: ≤2%
Certifications
Standards & Compliance
CEISOGSVerified
