Brushless Synchronous AC Alternator
This synchronous AC alternator is designed for power generation. The brushless design enhances reliability and reduces maintenance.
Technical Specifications
Product Overview
ASG Series Synchronous Alternator
The ASG series three-phase AC synchronous brushless alternator is engineered for reliable, high-performance power generation. By eliminating traditional slip rings and brushes, this unit utilizes an advanced brushless excitation system to reduce maintenance requirements and minimize wireless interference. Equipped with an integrated automatic voltage regulation (AVR) system, it ensures precise output voltage stability across diverse industrial and commercial applications.
Performance Metrics
Transient-state Voltage Regulation
- Positive: ≤+15% to +20%
- Negative: ≤-10% to 15%
- Steady-state Voltage Regulation
- 0.5 %
- Voltage Setting Range
- ≥±10%Un
Electrical Specifications
Line-Voltage Sinusoidal Waveform Distortion
| Power Rating | Distortion Rate |
|---|---|
| PN > 100KW | ≤ 2.5% |
| PN ≤ 100KW | ≤ 4.0% |
- Insulation Levels
- Class H (125k rise)Class F (105k rise)
- Voltage Deviation (Asymmetric Load)
- 5 %
Certifications
Certified Standards
CEISOGSTUV
General Info
Model Series

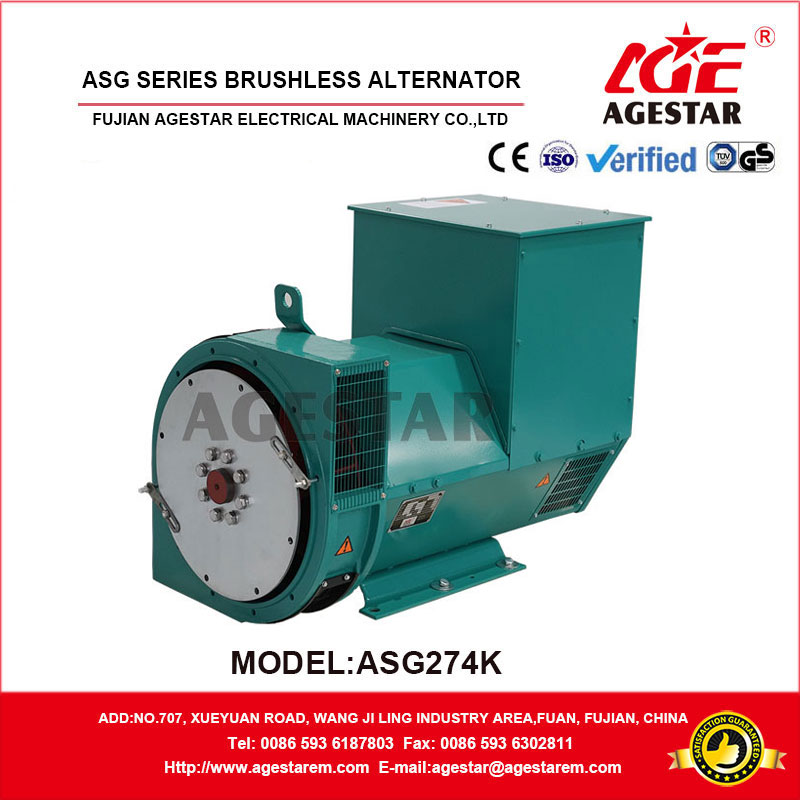

- ASG274K

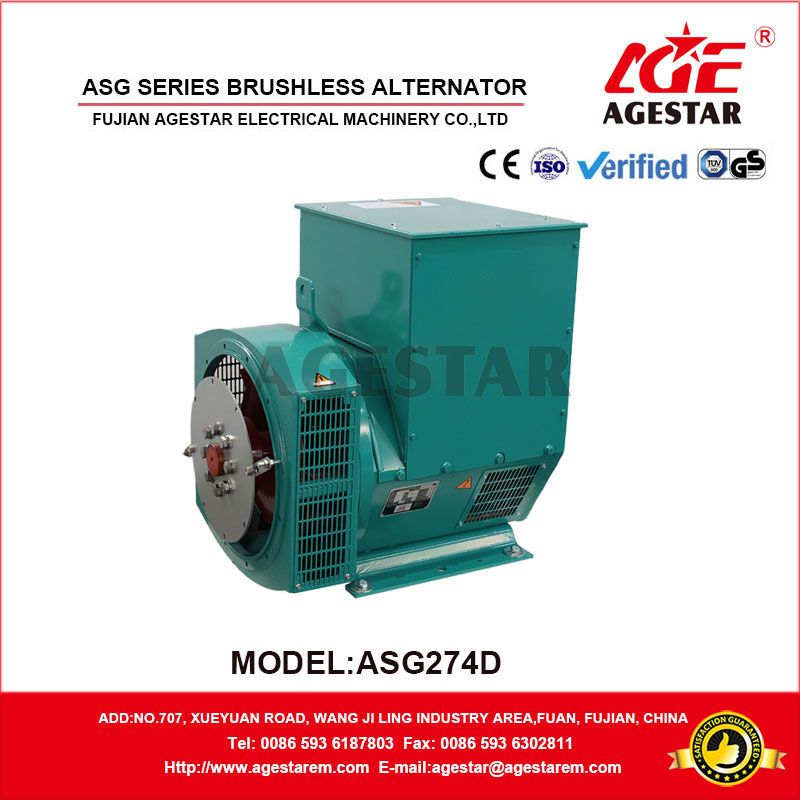

- ASG274D
- Connection Type
- Three-phase star connection with neutral point
