Technical Specifications
Product Overview

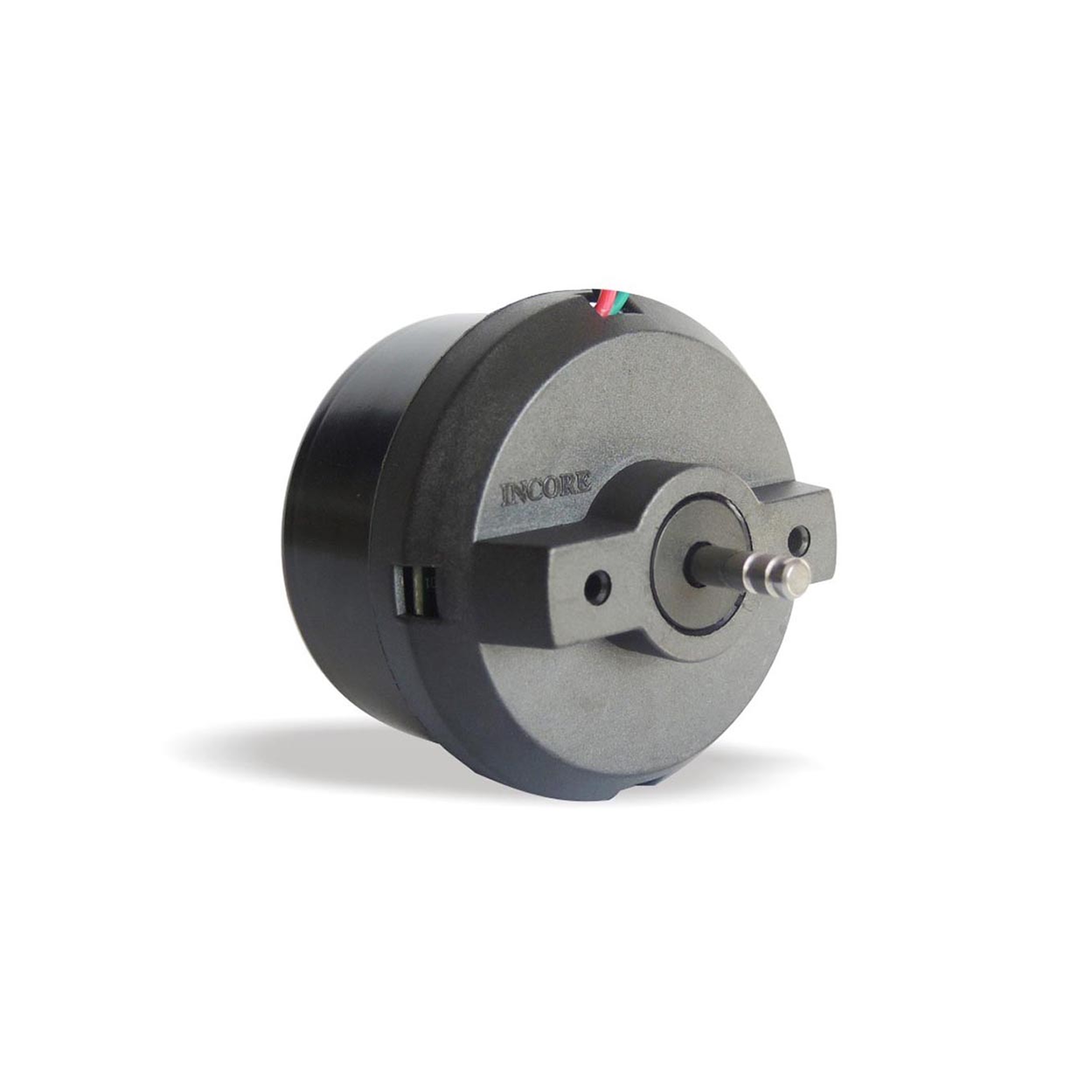

High-Efficiency BLDC Motor Solution
This brushless DC motor is engineered for extractor fans and small ventilation systems, offering a perfect balance of quiet operation and long-lasting durability. Designed with a compact external rotor architecture, it integrates seamlessly into domestic and commercial HVAC applications. With support for variable speed control via 0-10VDC or PWM, this motor provides precise airflow management while maintaining high energy efficiency.
Key Features
Electronic Protections
- Over-current protection
- Over-load protection
- Inverse power connection protection
- Core Features
- Three-phase BLDCExternal rotorVariable speed controlCompact designLow noise operation
Technical Specifications
Performance Metrics
55 %
Efficiency
3,500 RPM
Max Rated Speed
0.042 Nm
Max Rated Torque
Model Specifications
| Model | Voltage | Output | Rated Speed | Torque |
|---|---|---|---|---|
| ECT00050NA023000205 | 12VDC | 2 | 2,300 | 0.008 |
| ECT00050NA023000206 | 24VDC | 2 | 2,300 | 0.008 |
| ECT00050NA023000305 | 12VDC | 3 | 2,300 | 0.012 |
| ECT00050NA023000306 | 24VDC | 3 | 2,300 | 0.012 |
| ECT00050NA035001506 | 24VDC | 15 | 3,500 | 0.042 |
Control & Connectivity
Speed Control Interfaces
0-10VDCPWM
