Brushless DC Blower with IP68 Waterproofing
This brushless DC blower offers a 50000-hour lifetime and IP68 waterproof construction. It is made of UL94V-0 material and provides low noise with high air volume.
Technical Specifications
Product Overview
Professional Grade DC Blower
This high-performance brushless DC blower is engineered for optimal thermal management in demanding electronic environments. Featuring robust IP68 waterproofing and durable UL94V-0 construction, it ensures reliability and a long service life of 50,000 hours. The compact 97x33mm design delivers a high volume of airflow with low noise, making it an ideal choice for servers, computers, and other industrial cooling applications.
Physical Characteristics
Material Rating
UL94V-0
- Dimensions
- 97 x 33 mm
- Weight
- 205 g
Performance Ratings
Ingress Protection
IP68
- Lifespan
- 50000 h
Technical Specifications

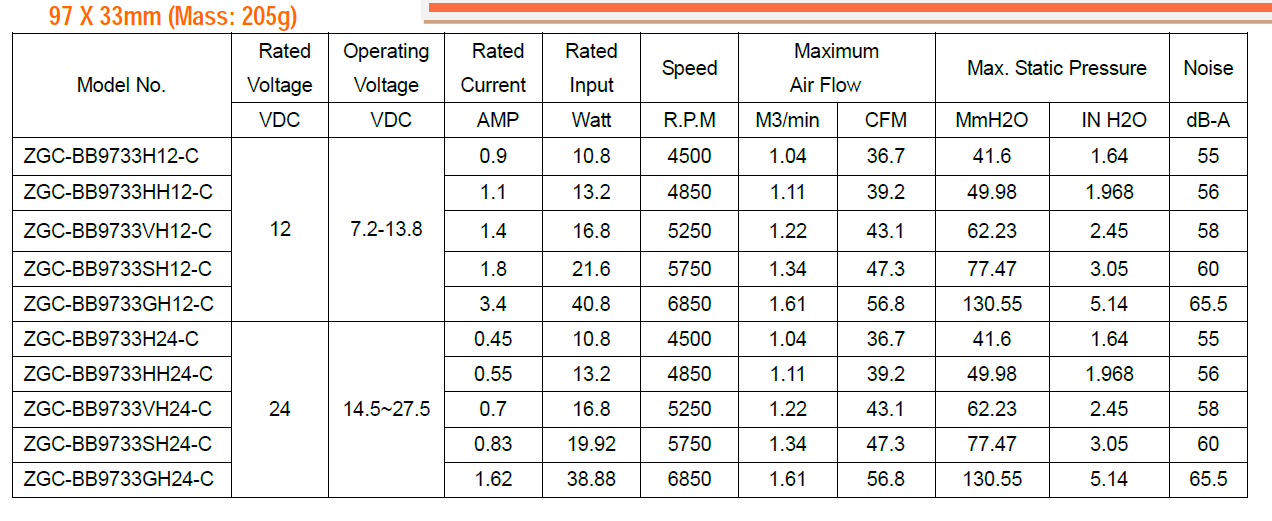

Performance Data
| Model | Voltage (V) | Speed (RPM) | Airflow (CFM) | Noise (dB-A) |
|---|---|---|---|---|
| ZGC-BB9733H12-C | 12 | 4,500 | 36.7 | 55 |
| ZGC-BB9733HH12-C | 12 | 4,850 | 39.2 | 56 |
| ZGC-BB9733VH12-C | 12 | 5,250 | 43.1 | 58 |
| ZGC-BB9733SH12-C | 12 | 5,750 | 47.3 | 60 |
| ZGC-BB9733GH12-C | 12 | 6,850 | 56.8 | 65.5 |
| ZGC-BB9733H24-C | 24 | 4,500 | 36.7 | 55 |
| ZGC-BB9733HH24-C | 24 | 4,850 | 39.2 | 56 |
| ZGC-BB9733VH24-C | 24 | 5,250 | 43.1 | 58 |
| ZGC-BB9733SH24-C | 24 | 5,750 | 47.3 | 60 |
| ZGC-BB9733GH24-C | 24 | 6,850 | 56.8 | 65.5 |
