Brushless DC Blower Fan
This is a brushless DC blower fan with an expected lifespan of 50000 hours. It is IP68 waterproof and constructed from UL94V-0 material.
Technical Specifications
Product Overview
High-Efficiency Cooling Solution
The ZGC-BB9733 is a compact brushless DC blower designed for demanding electronic thermal management. Featuring IP68 waterproof certification and a rugged UL94V-0 rated material construction, it ensures reliability in harsh environments. With a 50,000-hour service life, it provides an economical yet high-performance cooling solution for servers and industrial electronic equipment.
Physical Specifications
- Dimensions
- 97 x 97 x 33 mm
- Mass
- 155 g
Key Features
- Certification & Protection
- IP68 WaterproofUL94V-0 Rated
Performance Data

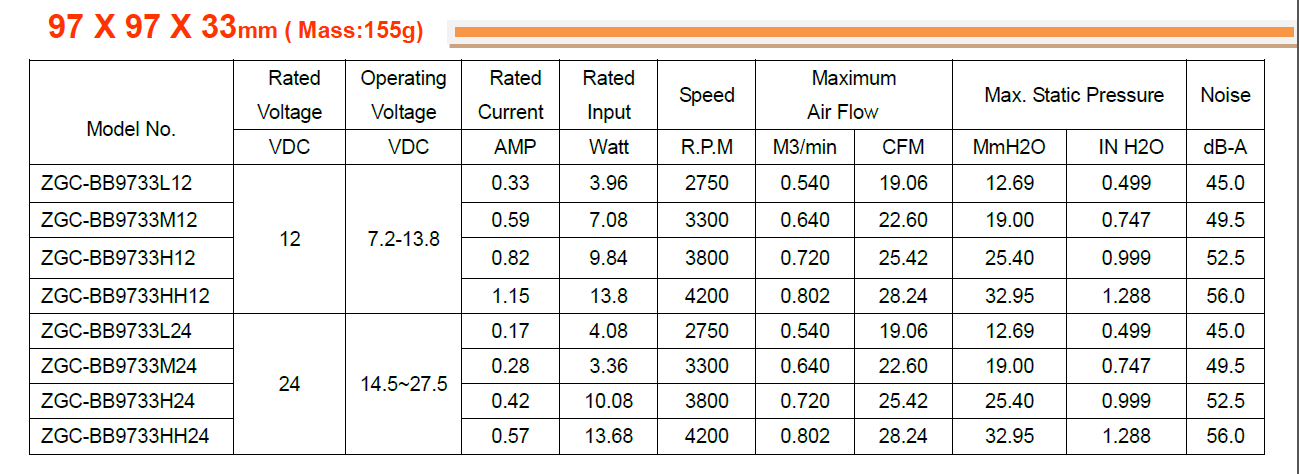

Model Specifications
| Model | Voltage | Speed | Max Airflow (CFM) | Noise (dB-A) |
|---|---|---|---|---|
| ZGC-BB9733L12 | 12V | 2,750 | 19.06 | 45 |
| ZGC-BB9733M12 | 12V | 3,300 | 22.6 | 49.5 |
| ZGC-BB9733H12 | 12V | 3,800 | 25.42 | 52.5 |
| ZGC-BB9733HH12 | 12V | 4,200 | 28.24 | 56 |
| ZGC-BB9733L24 | 24V | 2,750 | 19.06 | 45 |
| ZGC-BB9733M24 | 24V | 3,300 | 22.6 | 49.5 |
| ZGC-BB9733H24 | 24V | 3,800 | 25.42 | 52.5 |
| ZGC-BB9733HH24 | 24V | 4,200 | 28.24 | 56 |
Expected Service Life
50,000 h
Lifetime
