Brushed DC Motor for Massagers
This brushed DC motor is commonly used in massagers and other small appliances. Its compact size and simple design make it suitable for applications requiring a small, reliable motor.
Technical Specifications
Overview

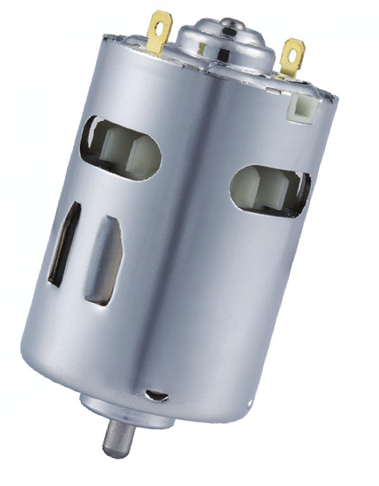

High-Performance Brushed DC Motor
This brushed DC motor is engineered specifically for personal care devices, particularly massagers and small appliances. Featuring a compact cylindrical design with integrated ventilation, it provides reliable rotational motion across a wide voltage range. With customizable EMC solutions and various performance models, this motor is an ideal component for manufacturers seeking consistent power and efficiency in compact form factors.
Technical Specifications
- Operating Voltage Range
- 6.0V - 36.0V
- Available Models
- 755-3090755-8016SF755-8513SF755-7018SF-CE-IE
Performance Data
Motor Performance Metrics
| Model | Nominal Voltage | No-Load Speed (rpm) | Stall Torque (mN-m) |
|---|---|---|---|
| 755-3090 | 24.0V | 5,200 | 346.08 |
| 755-8016SF | 18.0V | 23,000 | 131.96 |
| 755-8513SF | 12.0V | 18,000 | 85.88 |
| 755-7018SF-CE-IE | 19.5V | 22,500 | 108.53 |
Features
Customization
- Customizable EMC solutions
- Adjustable shaft length
- Performance parameter tuning
