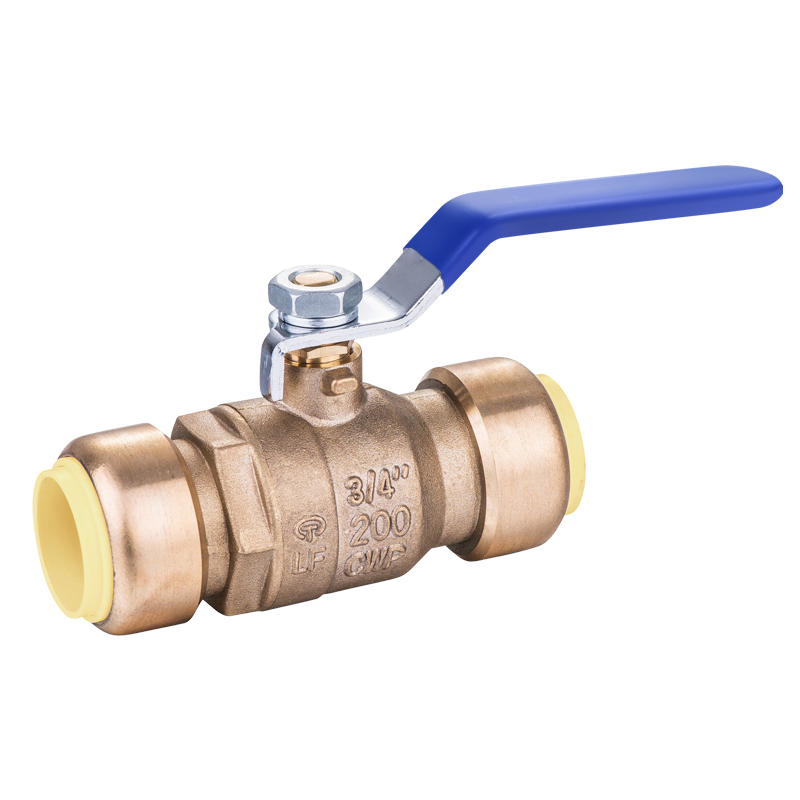

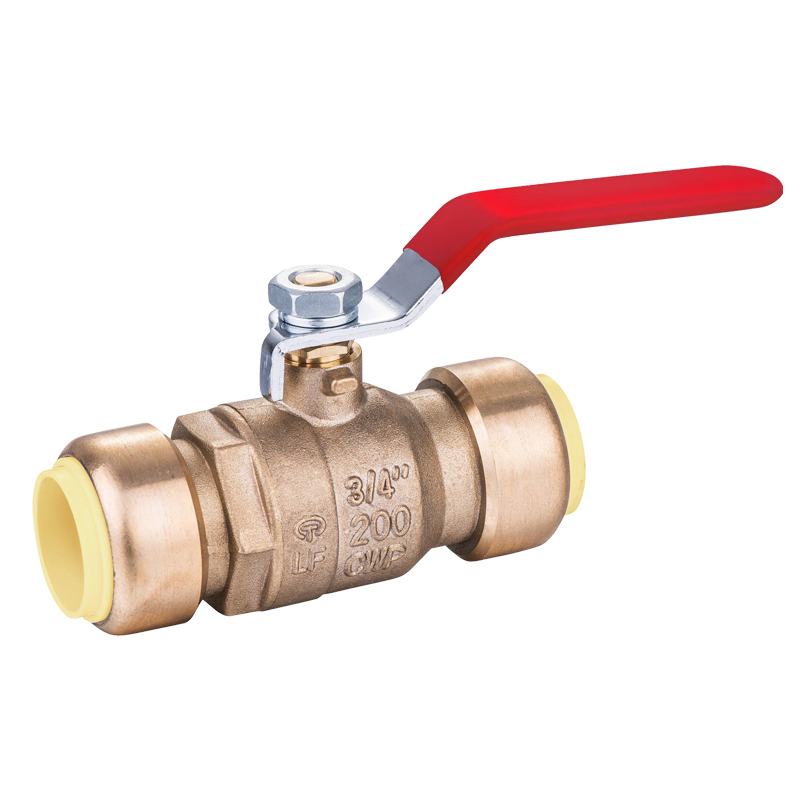

Brass Push Fit Ball Valve
This brass ball valve features push-fit connections for quick installation in water systems. It is designed for use with PEX, copper, and CPVC pipe and has a maximum working pressure of 200 PSI.
Technical Specifications
Product Overview
High-Performance Brass Push-Fit Ball Valve
This forged brass ball valve features a full-port design and a convenient push-fit end connection for rapid installation without soldering or glue. Engineered for potable water and hydronic heating systems, it is compatible with copper, CPVC, and PEX tubing. With a maximum working pressure of 200 PSI and lead-free construction, it provides a reliable and efficient solution for professional plumbing applications.
Technical Performance
Performance Metrics
200 PSI
Working Pressure
203 °F
Max Temperature
95 ℃
Max Temperature
- Applied Media
- Water
- Structure
- Full Port Ball Valve
Material & Construction
Model Numbers
- 4PF
- LF-4PF
- Material Grade
- C37700C46500Forged Brass
Installation & Sizing
- Available Sizes
- 1/2" - 1"
- Connection Type
- Push-fit end design (ASSE 1061 / IGC188)
- Compatible Tubing
- PEXCopperCPVC
Compliance & Certifications
Industry Approvals
cUPCNSF/ANSI 61NSF/ANSI 372IGC188CSAULFMIAPMO
Logistics & Supply
- Supply Ability
- 500,000 Pieces per Month
- Shipping Ports
- ShanghaiNingbo
- Packaging Details
- Standard export packaging; custom branded or colorful packaging available upon request.
