Technical Specifications
Product Overview
Professional Gas Pressure Regulation

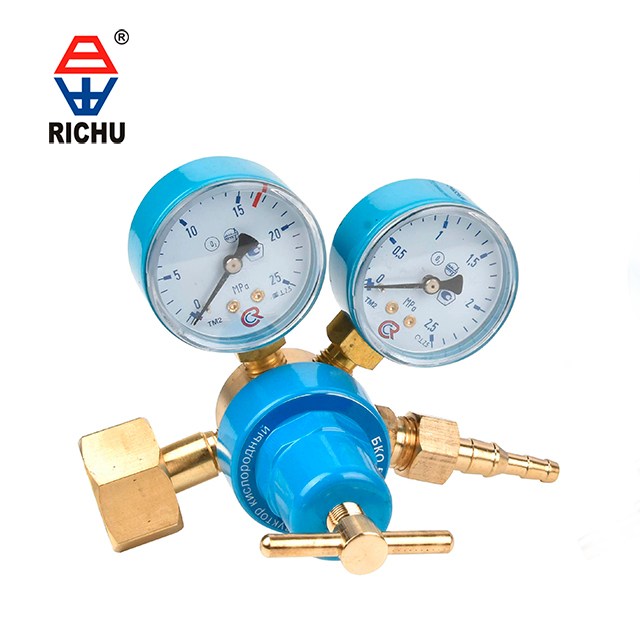

This economic light-duty gas pressure regulator is designed for precise control in industrial and commercial applications. Featuring a robust brass construction, it includes dual high-accuracy gauges for monitoring both inlet and outlet pressure. It is compatible with a variety of gases including Oxygen, Acetylene, Propane, and Argon, ensuring versatile performance for welding and cutting tasks.
Performance Data
Model Specifications
| Model | Gas Type | Max Inlet Pressure (MPa) | Working Pressure (MPa) | Rated Flow (m³/h) |
|---|---|---|---|---|
| OR-X57B | Oxygen | 15 | 1.25 | 40 |
| AR-X57B | Acetylene | 2.5 | 0.15 | 5 |
| LR-X57B | Propane | 2.5 | 0.4 | 5 |
| ArR-X57B | Argon | 15 | 0.75 | 0 |
Pressure Gauge Ranges
25 MPa
Oxygen High Pressure Gauge
40 l/min
Argon Low Pressure Gauge
Connectivity
Connector Specifications
- Inlet Connector: G3/4 Female or W21.8x1/14LH
- Outlet Connector: M16x1.5 RH or M16x1.5 LH
Logistics
- Packaging Details
- 20 PCS per CartonCarton Dimensions: 440x295x265 mm
