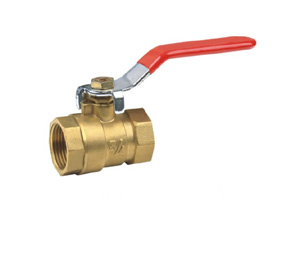

Brass Gas Ball Valve
This brass gas ball valve is suitable for controlling the flow of water, oil, and steam. It is designed with a working temperature range of -20°C to 150°C and complies with ISO 228 standards for pipe threads.
Technical Specifications
Product Overview
Professional Gas Flow Control
This brass gas ball valve is engineered for reliable flow control in both industrial and residential gas applications. Constructed with a robust brass body, it offers excellent durability and corrosion resistance, while the steel lever handle ensures quick and precise manual operation. Designed for secure, leak-proof installation, this valve is compatible with various media including natural gas and steam, providing a safe and efficient solution for fluid management.
Performance & Specifications
Working Temperature
-20 °C
Min Temp
150 °C
Max Temp
Available Finishes
Nickel PlatedBrass
- Nominal Pressure
- 1.6 MPa
- Working Medium
- WaterOilSteam
- Pipe Thread Standard
- ISO 228
- Quality Assurance
- Tested with water at pressure no less than 0.6MPa; no leakage.
Dimensions
Dimensional Data (mm)
| Size | DN | L | L1 | H | L2 |
|---|---|---|---|---|---|
| 1/2" | 14 | 45 | 11 | 52 | 100 |
| 3/4" | 17.5 | 53 | 12 | 55 | 100 |
| 1" | 21.5 | 62 | 14 | 66 | 115 |
| 1-1/4" | 27 | 70 | 15 | 81 | 144 |
| 1-1/2" | 36 | 78 | 16 | 87 | 144 |
| 2" | 45 | 92 | 18 | 95 | 163 |
Materials
Component Materials
| Component | Material |
|---|---|
| Body | Brass & Zinc |
| Bonnet | Brass & Zinc |
| Ball | Brass & Iron |
| Seat Ring | Teflon |
| Stem | Brass & Iron |
| Packing rings | Teflon |
| Washer | Brass |
| Handle | Iron |
| Nut | Iron |
