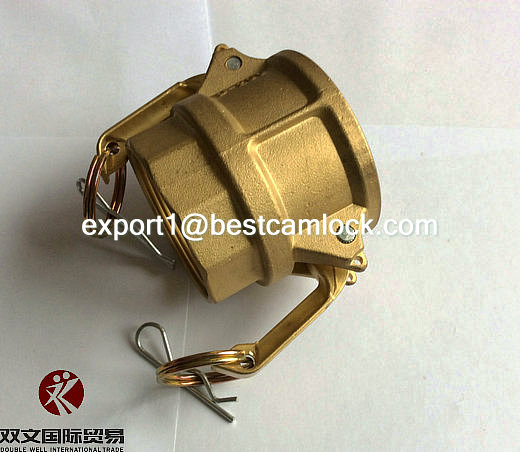

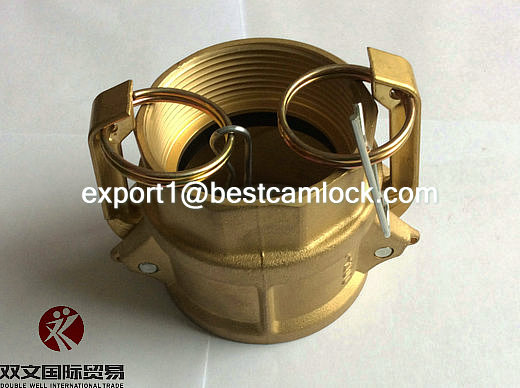

Brass Camlock Coupling with Viton Gaskets
This brass camlock coupling allows for quick and reliable connection of hoses and pipes. Viton gaskets provide a secure seal and compatibility with various fluids.
Technical Specifications
Product Overview
High-Performance Brass Camlock Couplings
These brass camlock couplings are designed for efficient, tool-free hose and pipe connections in industrial fluid transfer systems. Featuring durable brass construction and high-performance Viton gaskets, they offer excellent corrosion resistance and superior sealing capabilities. Ideal for low-pressure suction or discharge applications, these couplings provide a reliable solution for handling oils, coolants, and water in demanding environments.
Technical Specifications
Available Sizes
- 1/2"
- 3/4"
- 1"
- 1-1/4"
- 1-1/2"
- 2"
- 2-1/2"
- 3"
- 4"
- 5"
- 6"
- Body Material
- Brass
- Gasket Material
- Viton
- Thread Options
- NPTBSPPBSPT
Performance Metrics
Key Performance Metrics
250 psi
Max Working Pressure
232 °C
Max Temperature
-101 °C
Min Temperature
Compatibility & Standards
Available Coupling Types
Type AType BType CType DType EType FType DCType DP
- Standards Compliance
- A-A-59326MIL-C-27487DIN 2828DIN 14420-7
Usage Guidelines
Important Usage Notes
- Not suitable for compressed air applications
- Not suitable for steam transfer
- Not suitable for liquid gases
- Ideal for oils, coolants, and water
