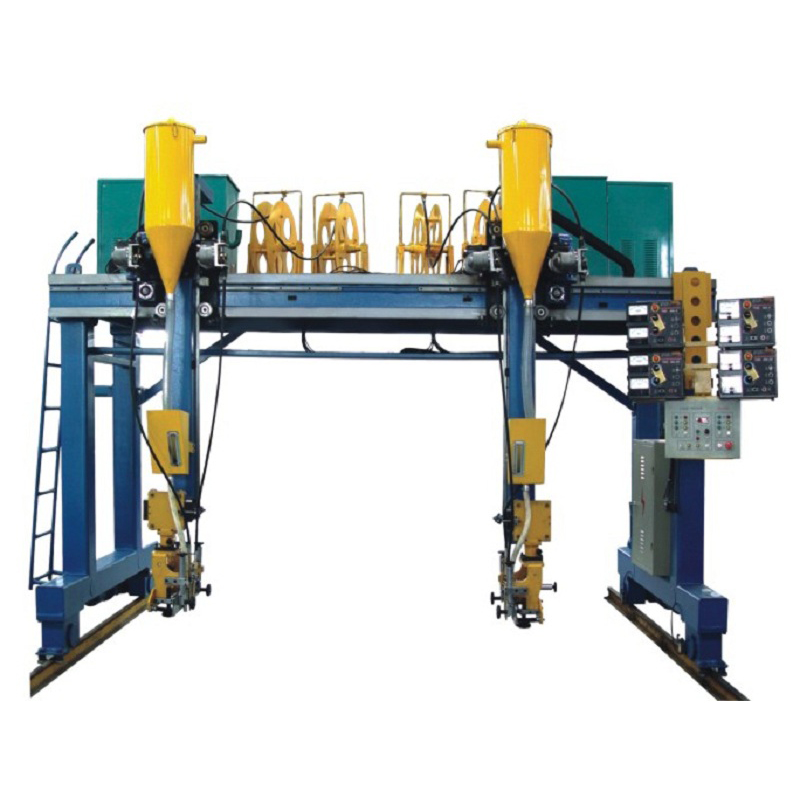

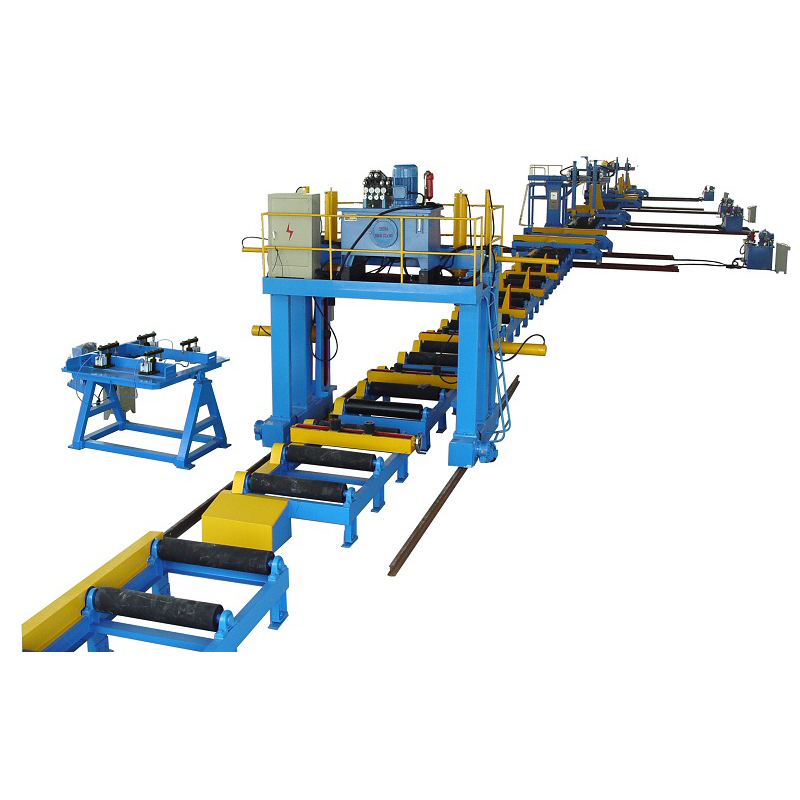

Box Beam Production Line
The box-beam production line is a specialized system for manufacturing box beams used in large bridge and tall building construction. This production line automates workpiece feeding, partition making, box assembling, backing welding, electroslag welding, submerged welding, and face cutting.
Technical Specifications
Overview
High-Efficiency Box Beam Fabrication
This specialized box-beam production line is engineered for the automated manufacturing of structural components used in large bridges and tall buildings. The system integrates multiple critical processes, including material feeding, partition making, box assembling, and various welding techniques such as electroslag and submerged welding. Designed for reliability and high-volume output, it offers a complete configuration that streamlines the entire fabrication workflow.
Technical Parameters
- Max Cross-Section
- 1200 mm
- Min Cross-Section
- 300 mm
- Work-piece Length
- 4000 - 15000 mm
- Work-piece Thickness
- 20 - 80 mm
Performance
Max Yearly Output
Process Capabilities
Integrated Processes
- Work-piece feeding
- Partition making
- Box assembling
- Backing welding
- Electroslag welding
- Submerged welding
- Face cutting
