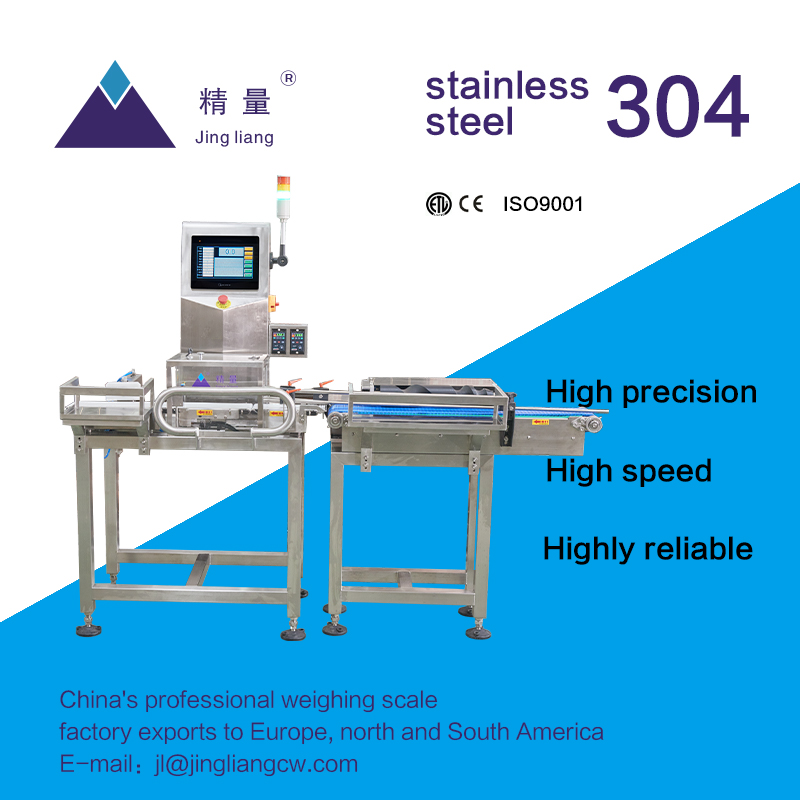

Bottled Product Weighing Scale
This high-precision weighing scale is designed for bottled products, providing accurate weight control and quality assurance. The system features stainless steel (304 grade) construction for durability and hygiene, offering high-speed operation for automated production lines.
Technical Specifications
Product Overview
High-Efficiency Bottled Product Weighing Scale
This modular weighing scale is designed to enhance productivity and streamline quality control processes for bottled products. Featuring a robust SUS304 stainless steel construction, it offers simple maintenance and superior hygiene standards. With a user-friendly 10-inch touch screen and up to 200 product presets, this system enables rapid switching between production lines, ensuring high throughput and precision.
Performance Metrics
Key Performance Indicators
150 pcs/min
Throughput
1 g
Accuracy (3σ)
0.1 g
Minimum Scale
Technical Specifications
IP Grade
IP-65
- Weighing Range
- 1000 g
- Construction Material
- SUS304 Stainless Steel with surface polishing
- Power Requirements
- AC 200V-240V (110V/380V available on request)
System Configuration
- Language Support
- ChineseEnglishTurkishSpanish
Dimensions
Physical Dimensions
| Component | Dimensions |
|---|---|
| Overall Equipment | L2000mm x W750mm x H1360mm |
| Weighing Section Belt | L300mm x W130mm |
| Conveyor Belt Height | 650mm - 750mm |
