Borehole Inspection Camera with 360° Rotating Probe

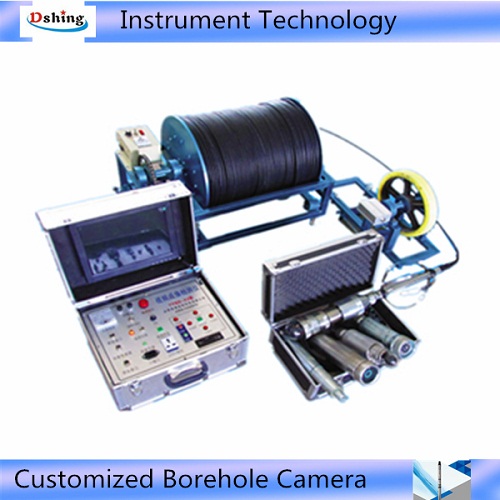

This borehole camera system is designed for detailed visual inspection of boreholes and wells. It features a high-resolution camera probe with adjustable lighting and a motorized cable reel for controlled deployment and retrieval.
Technical Specifications
Overview
Professional Borehole Inspection System
This high-performance borehole camera system is engineered for detailed visual assessment of wells, boreholes, and confined spaces. Featuring a 360° rotating probe and a high-resolution 1200-line CMOS camera, it provides comprehensive coverage and clear imaging for geological surveys and infrastructure inspections. The system is built for durability with a 15 MPa pressure rating, allowing for reliable operation at depths of up to 1500 meters.
Camera Probe
Rotation Range
360 °
Circle Turn
180 °
Horizontal Turn
Camera Specifications
| Feature | Specification |
|---|---|
| Camera Size | 90 mm Φ |
| Material | 304 Stainless Steel |
| Lens Material | Explosion-proof Optical Glass |
| Sensor | CMOS 1200 line |
| Pressure Resistance | 15 MPa (up to 1500m depth) |
Illumination
- Front: 18 highlight patch lamp beads
- Rear: 16 strong LED light source lamp beads
- 5-level adjustable brightness via main box
Display Unit
Monitor Specifications
| Parameter | Value |
|---|---|
| Screen Size | 12-inch LCD |
| Dimensions | 291 x 251 x 48 mm |
| Resolution | 1024 x 768 |
| Aspect Ratio | 4:3 |
| Brightness | 1000 CD/㎡ |
| Contrast | 500:1 |
- Supported Color Systems
- PALNTSCSECAM

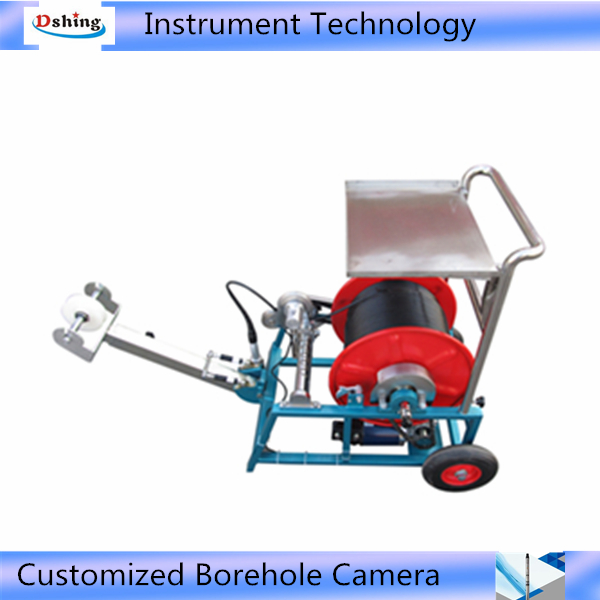

Cable & Winch
Winch Operation
ElectricManual
Logging Cable Details
- Material: Modified Polypropylene
- Anti-Pull Capacity: 280 kg
- Outside Diameter: 8.2 mm
- Heat Resistance: Up to 70°C
Power Supply
- Operating Voltage
- 12 V DC
