Bolted Brass Wire Connector
This bolted brass connector is designed for secure electrical connections in power transmission and distribution systems. Its brass construction ensures excellent conductivity and corrosion resistance.
Technical Specifications
Overview
WCJC Series Bolted Brass Connector

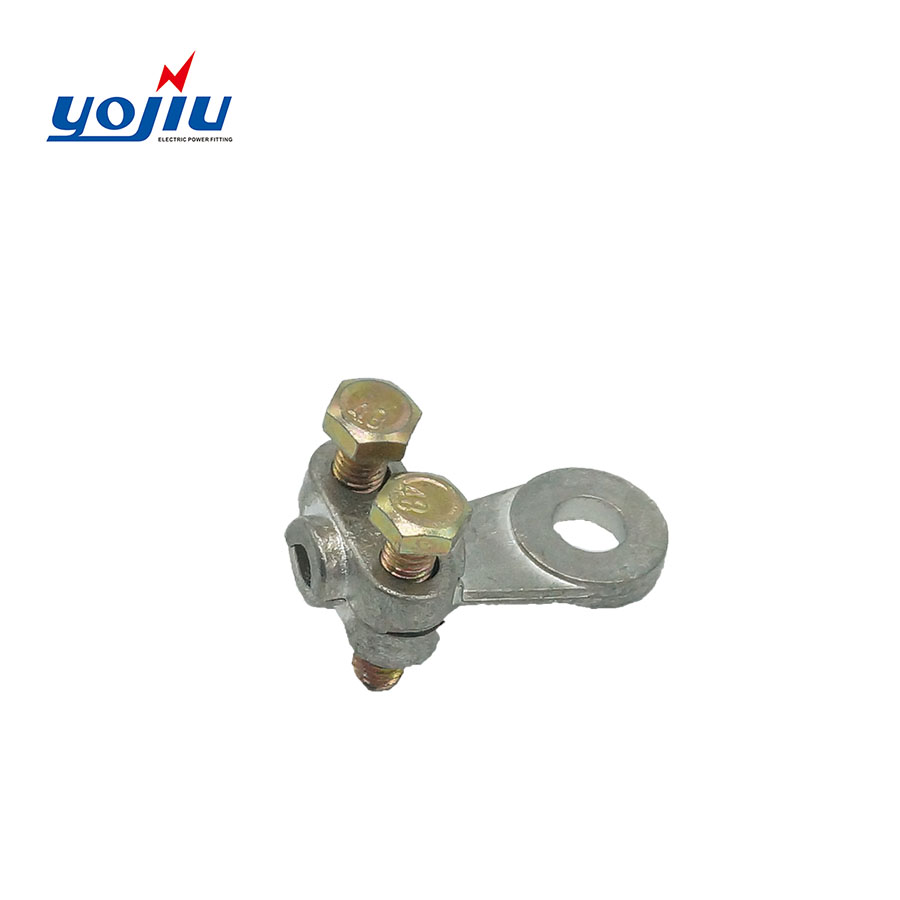

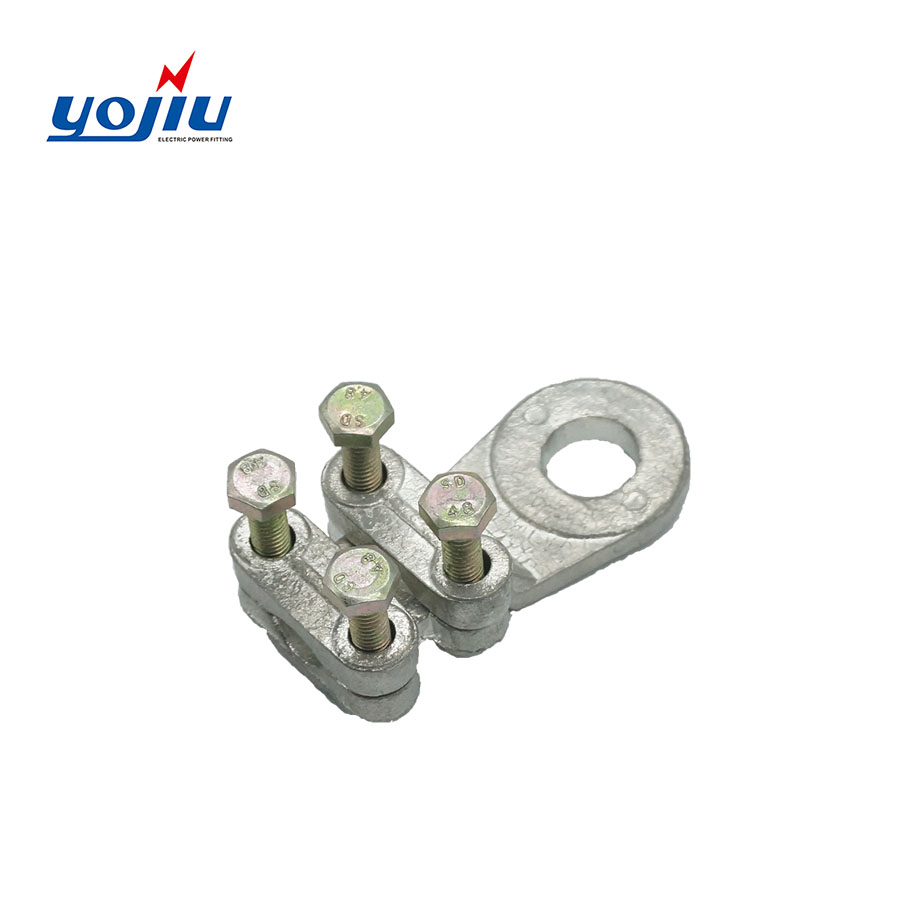

The WCJC series bolted brass connector is engineered for secure and reliable connections between electrical equipment and cables. Designed for indoor distribution systems, these connectors feature a durable brass construction with a tin electro-plated surface for enhanced corrosion resistance. The bolted design ensures a strong mechanical grip, facilitating easy installation and long-term performance in power transmission applications.
Technical Specifications
- Material and Surface
- BrassTin Electro Plated
- Installation Method
- Bolted
- Application Environment
- Indoor distribution equipment
Dimensions and Compatibility
Model Specifications
| Item No. | Conductor (mm²) | Ø (mm) | A (mm) | L (mm) |
|---|---|---|---|---|
| WCJC-1 | 16-25 | 12.5 | 21 | 36.5 |
| WCJC-2 | 25-35 | 10.5 | 22.5 | 47.5 |
| WCJC-3 | 50-70 | 10.8 | 31 | 61 |
| WCJC-4 | 70-95 | 12.5 | 32.5 | 66 |
| WCJC-5 | 95-120 | 14.5 | 35.5 | 73 |
| WCJC-6 | 120-150 | 14.5 | 35.5 | 73 |
| WCJC-7 | 185-240 | 17.5 | 46 | 91 |
| WCJC-8 | 210-250 | 17.5 | 46 | 91 |
| WCJC-9 | 300 | 19.5 | 56 | 109.5 |
| WCJC-10 | 300-500 | 23 | 61 | 121 |
