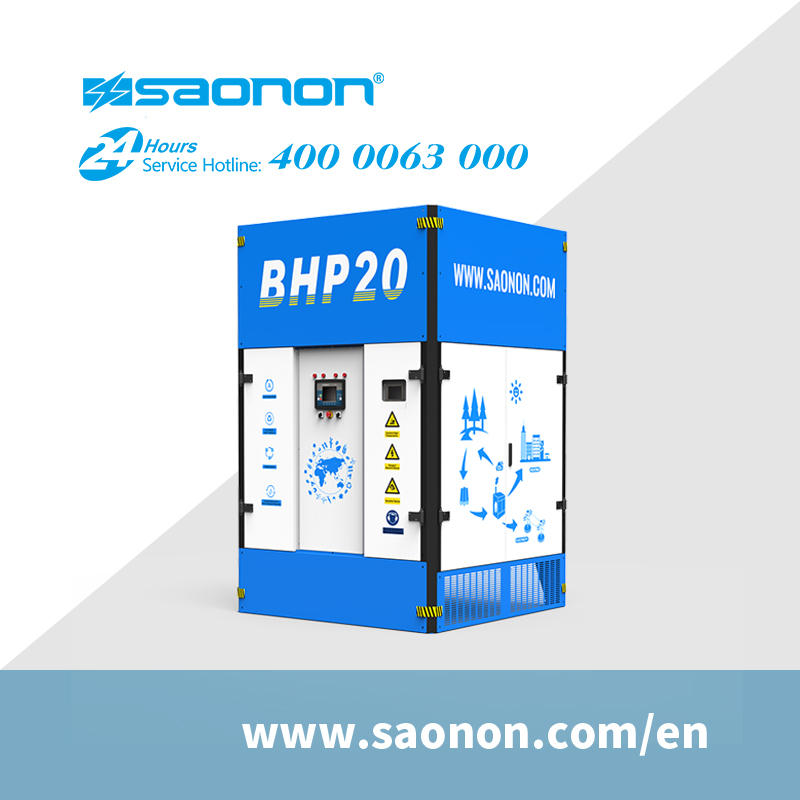

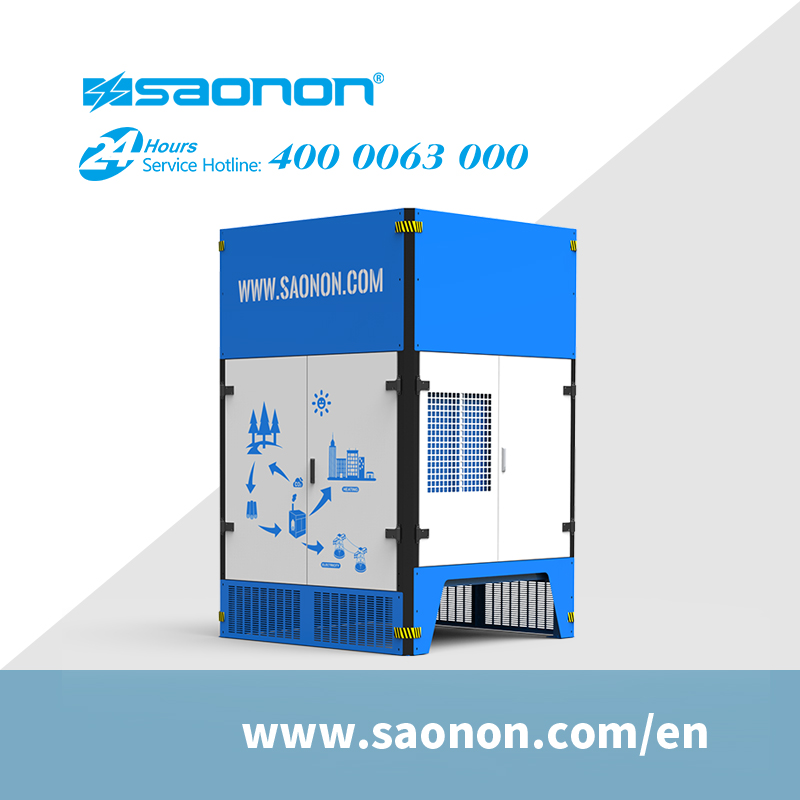

Biomass Gasification Power Generation System
This integrated system efficiently converts biomass into electricity through gasification. The system integrates gasification, gas cleaning, and power generation into a single unit, optimizing energy conversion and reducing emissions.

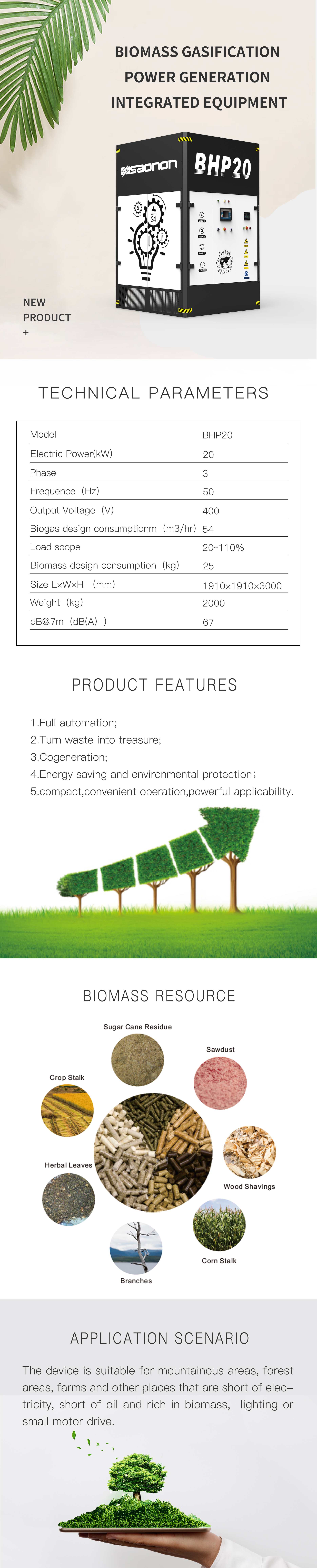

Technical Specifications
Overview
Integrated Biomass Power Solution
This biomass gasification power generation unit is an advanced, fully automated system designed to convert agricultural and forestry waste into reliable electricity. By integrating gasification, gas cleaning, and power generation into a single compact structure, it offers a sustainable energy solution for areas with abundant biomass resources but limited infrastructure. It is highly versatile, serving as a practical tool for lighting and powering small motors in remote or agricultural settings.
Technical Specifications
Performance Metrics
20 kW
Electric Power
50 Hz
Frequency
400 V
Output Voltage
67 dB(A)
Noise Level
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Weight | 2000 kg |
| Dimensions (LxWxH) | 1910x1910x3000 mm |
Operational Parameters
- Phase: 3
- Load Scope: 20-110%
- Biomass Design Consumption: 25 kg
- Biogas Design Consumption: 54 m3/hr
Application & Features
System Highlights
Full automationCogenerationWaste-to-energyEnvironmentally friendlyCompact design
- Compatible Biomass Resources
- Sugar cane residueCrop stalkSawdustHerbal leavesWood shavingsBranchesCorn stalk
