Bimetallic Wire Connector
These bimetallic connectors are designed for transitioning between aluminum and copper cables. The barrel features clear markings to indicate the correct crimping location.
Technical Specifications
Overview
Bimetallic Wire Connector
These bimetallic connectors are engineered for the reliable transition connection between aluminum or aluminum alloy cables and copper cables. Utilizing a friction-welded construction, they effectively prevent galvanic corrosion between dissimilar metals, ensuring long-term electrical integrity. Each unit features prefilled jointing compound and clear barrel markings to facilitate accurate crimping and installation in power transmission and distribution systems.
Technical Specifications
Key Features
Oil blocking structureFriction weldedPrefilled jointing compoundClear crimping markings
- Material Purity
- Aluminum ≥ 99.5%Copper ≥ 99.9%
- Primary Application
- Intermediate transition connection of aluminium or aluminium alloy cable with copper cable

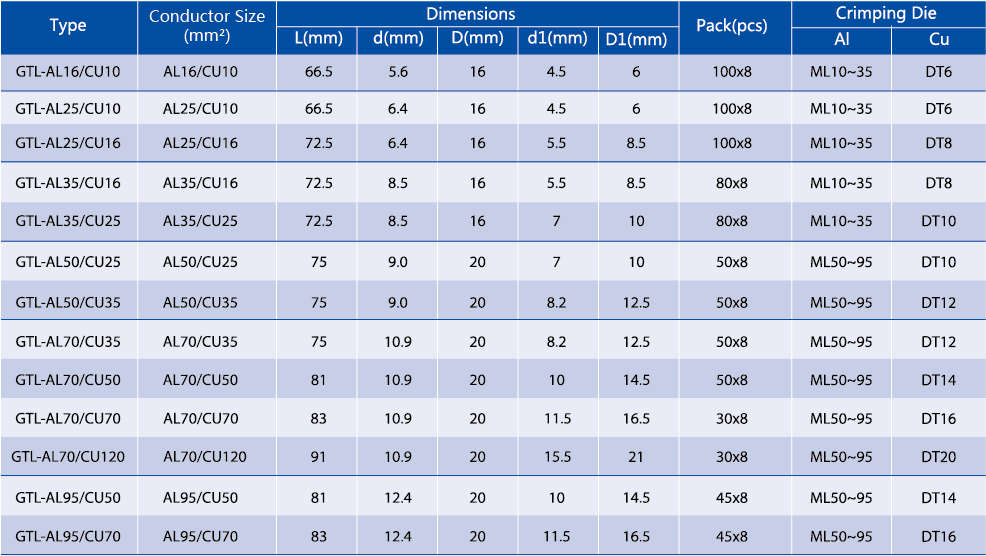

Dimensional Data
Common Size Specifications
| Type | Al Conductor (mm²) | Cu Conductor (mm²) | Length (mm) |
|---|---|---|---|
| GTL-AL16/CU10 | 16 | 10 | 66.5 |
| GTL-AL50/CU25 | 50 | 25 | 75 |
| GTL-AL120/CU70 | 120 | 70 | 99 |
| GTL-AL185/CU95 | 185 | 95 | 107 |
| GTL-AL300/CU300 | 300 | 300 | 159.5 |
