Bimetallic Wire Connector
This bimetallic connector facilitates the transition between aluminum and copper cables in medium-voltage applications. It utilizes friction welding and an oil-blocking structure for secure connections.
Technical Specifications
Overview
Bimetallic Connector Overview
These GTL bimetallic connectors are engineered for the reliable transition connection between aluminium or aluminium alloy cables and copper cables. Featuring a specialized oil-blocking structure and friction-welded design, they effectively prevent galvanic corrosion in medium-voltage electrical systems. Each connector comes pre-filled with jointing compound to ensure optimal conductivity and longevity in power transmission and distribution applications.
Technical Specifications
Key Features
Oil blocking structureFriction weldedPrefilled with jointing compoundClear crimping markings
- Material Purity
- Al ≥ 99.5%Cu ≥ 99.9%
Application Data

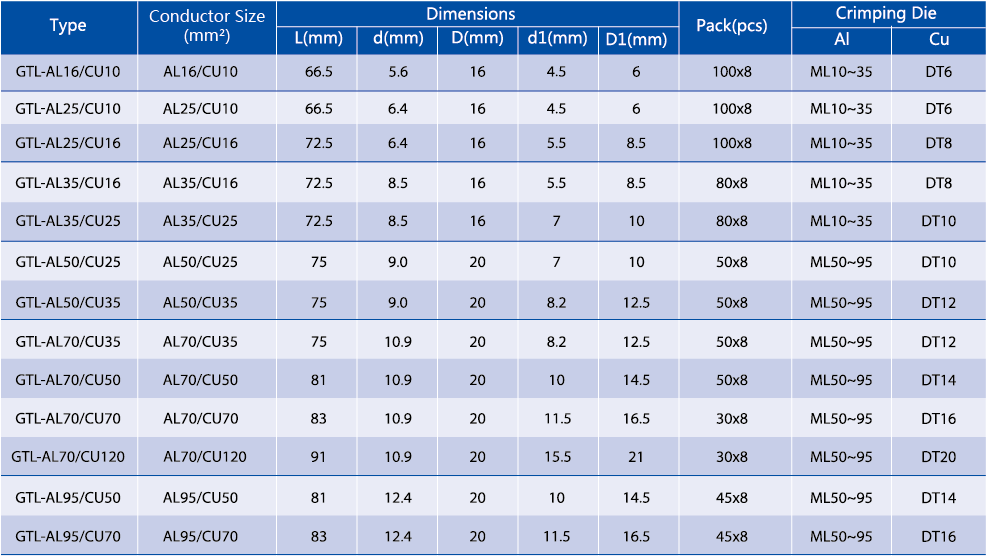

Standard Connector Specifications (Small Range)
| Type | Length (mm) | Crimping Die |
|---|---|---|
| GTL-AL16/CU10 | 66.5 | DT6 |
| GTL-AL25/CU16 | 72.5 | DT8 |
| GTL-AL35/CU25 | 72.5 | DT10 |
| GTL-AL50/CU35 | 75 | DT12 |
| GTL-AL70/CU70 | 83 | DT16 |
| GTL-AL95/CU70 | 83 | DT16 |

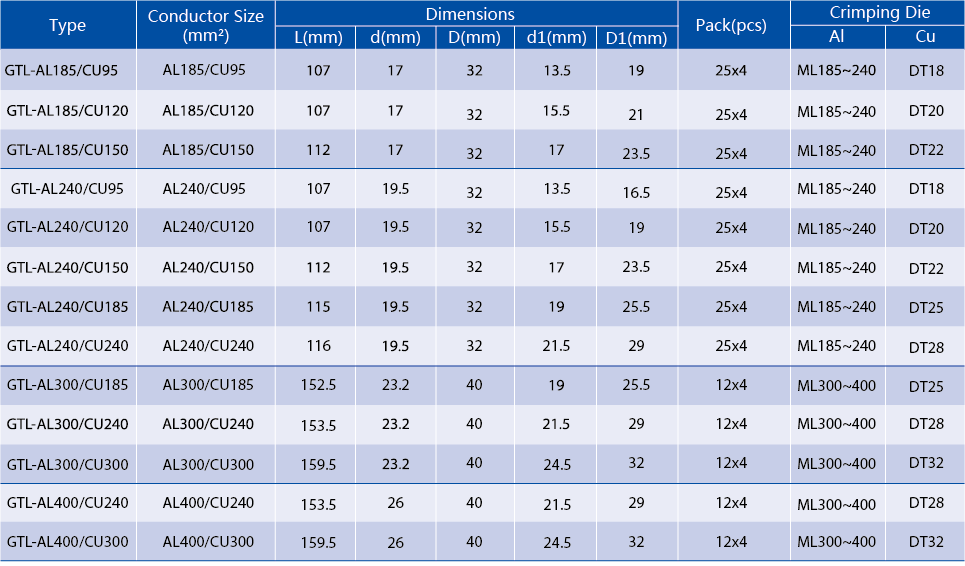

Heavy Duty Connector Specifications
| Type | Length (mm) | Crimping Die |
|---|---|---|
| GTL-AL185/CU95 | 107 | DT18 |
| GTL-AL240/CU150 | 112 | DT22 |
| GTL-AL300/CU300 | 159.5 | DT32 |
| GTL-AL400/CU300 | 159.5 | DT32 |
