Bimetallic Pin Lug Connector

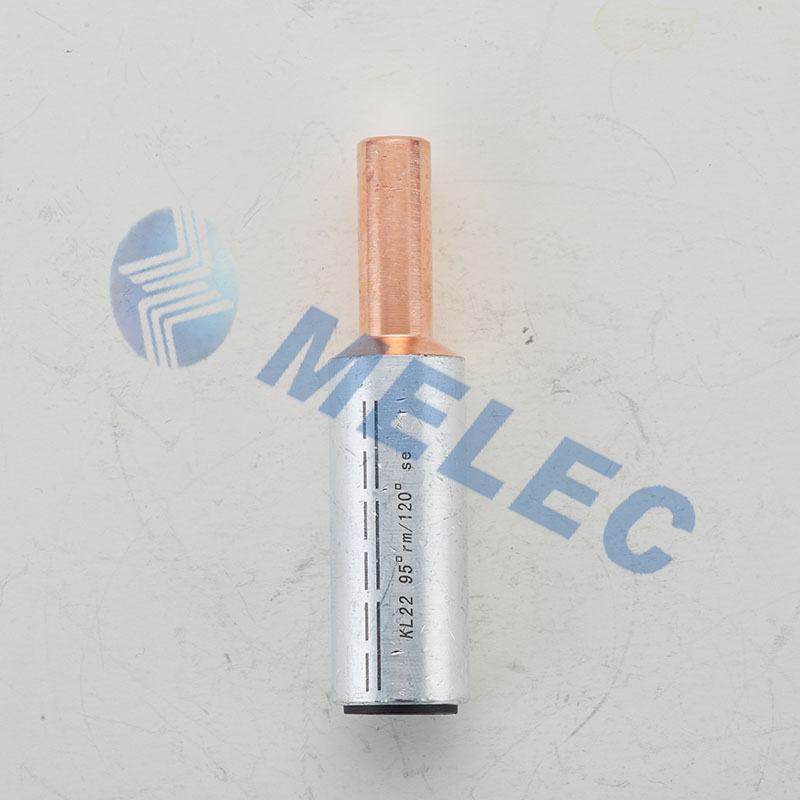

These bimetallic pin lugs are designed for the reliable transition connection of aluminum or aluminum alloy cables to copper terminals, specifically for miniature circuit breakers in low voltage applications. Engineered with an oil-blocking structure and friction-welded construction, they ensure high conductivity and corrosion-resistant joints. Each unit is prefilled with jointing compound and features clear barrel markings to guide precise crimping according to DIN standards.
Technical Specifications
Material Purity
- Aluminum (Al) ≥ 99.5%
- Copper (Cu) ≥ 99.9%
- Standard
- DIN 46329
- Key Features
- Oil blocking structureFriction weldedCylinder copper pinPrefilled with jointing compound
Dimensions and Sizing
Specification Table

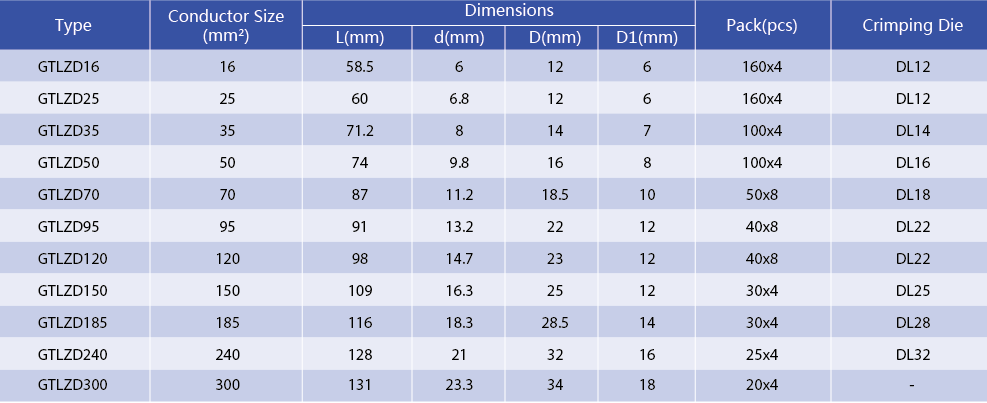

| Type | Conductor (mm²) | Length (mm) | d (mm) | D (mm) | D1 (mm) | Crimping Die |
|---|---|---|---|---|---|---|
| GTLZD16 | 16 | 58.5 | 6 | 12 | 6 | DL12 |
| GTLZD25 | 25 | 60 | 6.8 | 12 | 6 | DL12 |
| GTLZD35 | 35 | 71.2 | 8 | 14 | 7 | DL14 |
| GTLZD50 | 50 | 74 | 9.8 | 16 | 8 | DL16 |
| GTLZD70 | 70 | 87 | 11.2 | 18.5 | 10 | DL18 |
| GTLZD95 | 95 | 91 | 13.2 | 22 | 12 | DL22 |
| GTLZD120 | 120 | 98 | 14.7 | 23 | 12 | DL22 |
| GTLZD150 | 150 | 109 | 16.3 | 25 | 12 | DL25 |
| GTLZD185 | 185 | 116 | 18.3 | 28.5 | 14 | DL28 |
| GTLZD240 | 240 | 128 | 21 | 32 | 16 | DL32 |
| GTLZD300 | 300 | 131 | 23.3 | 34 | 18 | N/A |
