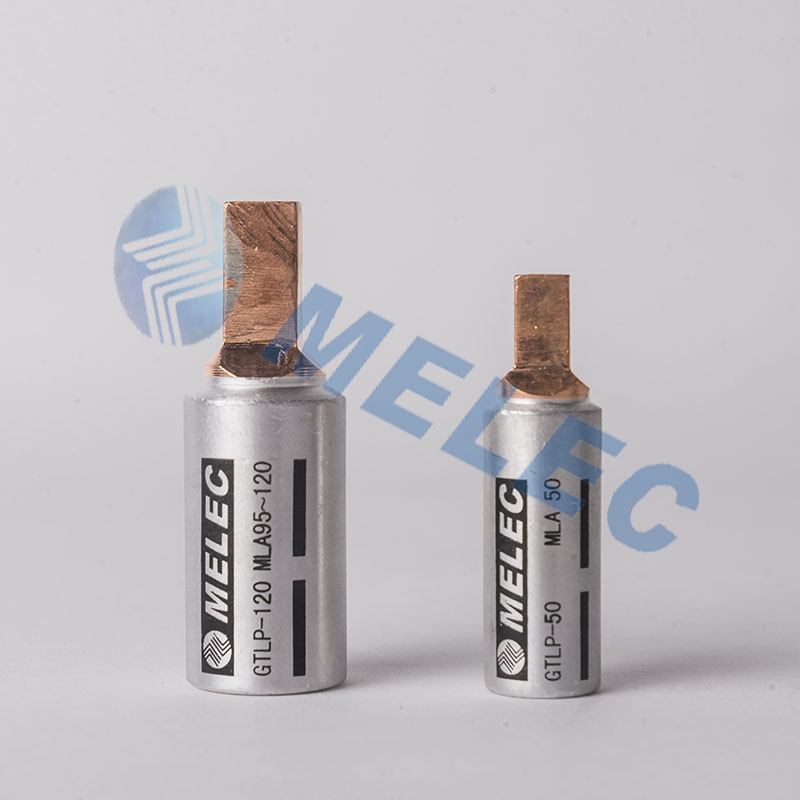

Bimetallic Pin Lug Connector
These bimetallic pin lug connectors are used for transition connections between aluminum cables and the copper ends of miniature circuit breakers in low voltage systems. They feature an oil-blocking structure and are prefilled with jointing compound.
Technical Specifications
Product Overview
Bimetallic Pin Lug Connector
These bimetallic pin lugs are engineered for the transition connection of aluminium or aluminium alloy cables to copper terminals in low voltage mini circuit breakers. Featuring a robust friction-welded construction, they effectively prevent galvanic corrosion between dissimilar metals. Each unit is prefilled with jointing compound to ensure optimal electrical conductivity and long-term reliability.
Technical Specifications
- Material Purity
- Al ≥ 99.5%Cu ≥ 99.9%
- Compliance Standard
- IEC61238-1:2003
Features
Key Features
- Oil blocking structure
- Friction welded
- Prefilled with jointing compound
- Cubic copper pin
- Clear crimping location markings
Dimensional Data
Size Specifications
| Type | Conductor (mm²) | Length (mm) | Inner Dia (mm) | Outer Dia (mm) |
|---|---|---|---|---|
| GTLP-10 | 10 | 49 | 4.5 | 12.5 |
| GTLP-16 | 16 | 49 | 5.5 | 12.5 |
| GTLP-25 | 25 | 49 | 7 | 12.5 |
| GTLP-35 | 35 | 49 | 8 | 12.5 |
| GTLP-50 | 50 | 52 | 9 | 15 |
| GTLP-70 | 70 | 56 | 11 | 17.5 |
| GTLP-95 | 95 | 62 | 12.5 | 21 |
| GTLP-120 | 120 | 62 | 13.7 | 21 |
