Bimetallic Pin Lug Connector
Bimetallic pin lug connectors are used for transition connections of aluminum cable or aluminum alloy cable with copper ends in low voltage applications. They feature clear markings on the barrel to indicate the correct crimping location.
Technical Specifications
Product Overview
Bimetallic Pin Lug Connector
The Bimetallic Pin Lug Connector is designed for the reliable transition connection of aluminum or aluminum alloy cables to the copper terminals of mini circuit breakers in low-voltage applications. These connectors feature a high-performance friction-welded construction, ensuring optimal electrical conductivity and preventing galvanic corrosion between dissimilar metals. Each unit comes pre-filled with jointing compound and features clear barrel markings to ensure precise crimping for secure, long-lasting installations.
- Compliance Standard
- IEC61238-1:2003
Technical Features
Material Composition
- Aluminum (Al) ≥ 99.5%
- Copper (Cu) ≥ 99.9%
- Key Features
- Oil blocking structureFriction weldedPrefilled with jointing compoundCubic copper pinClear crimping markings
Dimensions and Compatibility

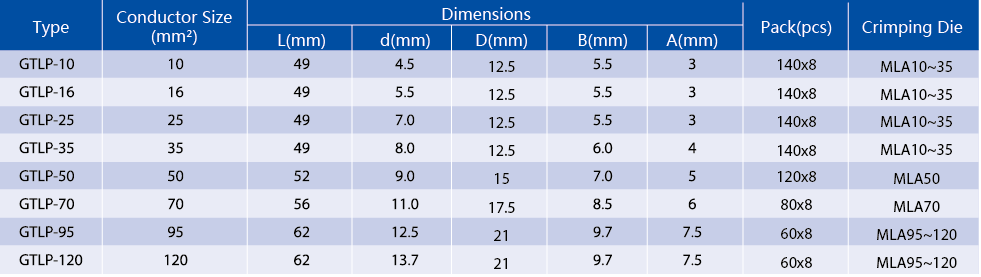

Technical Specifications Table
| Type | Conductor Size (mm²) | Length (mm) | Inner Ø (mm) | Outer Ø (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|
| GTLP-10 | 10 | 49 | 4.5 | 12.5 | 5.5 | 3 |
| GTLP-16 | 16 | 49 | 5.5 | 12.5 | 5.5 | 3 |
| GTLP-25 | 25 | 49 | 7 | 12.5 | 5.5 | 3 |
| GTLP-35 | 35 | 49 | 8 | 12.5 | 6 | 4 |
| GTLP-50 | 50 | 52 | 9 | 15 | 7 | 5 |
| GTLP-70 | 70 | 56 | 11 | 17.5 | 8.5 | 6 |
| GTLP-95 | 95 | 62 | 12.5 | 21 | 9.7 | 7.5 |
| GTLP-120 | 120 | 62 | 13.7 | 21 | 9.7 | 7.5 |
