Overview
High-Performance Bimetallic Transition Lugs
These ATL bimetallic lugs are engineered for the critical transition connection between aluminum or aluminum alloy cables and copper electrical equipment terminals. By utilizing a friction-welded construction of high-purity aluminum and copper, they effectively eliminate galvanic corrosion in low-voltage applications. Each lug comes pre-filled with jointing compound and features clear barrel markings to ensure precise and reliable crimping every time.
Material & Construction
Material Composition
99.5 %
Aluminum Purity (Al)
99.9 %
Copper Purity (Cu)
Corrosion Protection
- Epoxy resin applied on copper-aluminum contact area
- Pre-filled with jointing compound
- Friction welding prevents galvanic oxidation
- Manufacturing Process
- Friction welded barrel with copper palm
Technical Specifications
- Application Range
- Low voltage transition for Al/Al-alloy cables to copper terminals
- Crimping Standard
- Compatible with DIN standard crimping dies

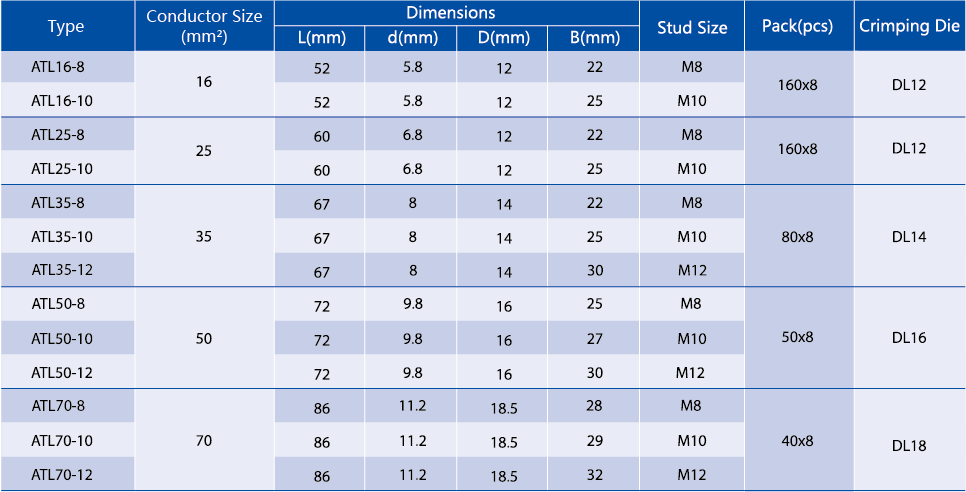

Product Range (Small to Medium)
Small to Medium Conductor Sizes
| Type | Conductor Size (mm²) | Stud Size | Length (mm) | Die Recommendation |
|---|---|---|---|---|
| ATL16-8/10 | 16 | M8/M10 | 52 | DL12 |
| ATL25-8/10 | 25 | M8/M10 | 60 | DL12 |
| ATL35-8/10/12 | 35 | M8/M10/M12 | 67 | DL14 |
| ATL50-8/10/12 | 50 | M8/M10/M12 | 72 | DL16 |
| ATL70-8/10/12 | 70 | M8/M10/M12 | 86 | DL18 |

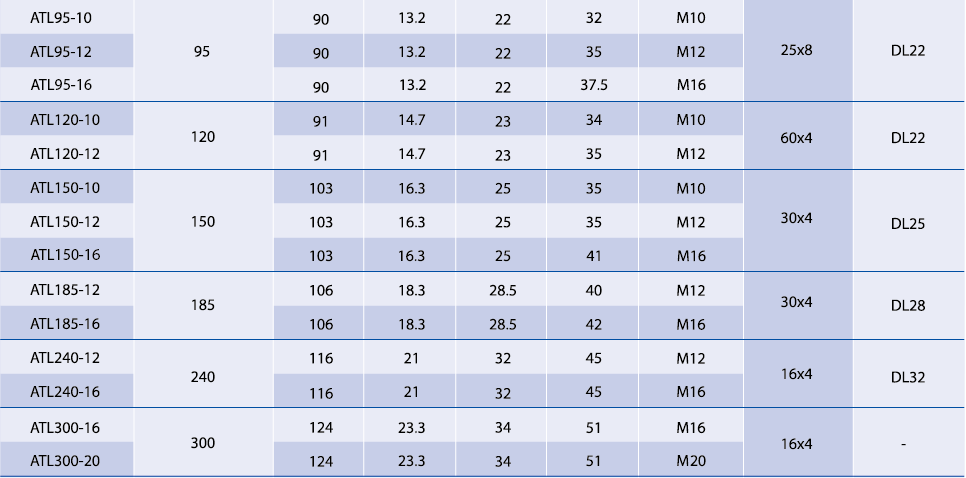

Product Range (Large)
Large Conductor Sizes
| Type | Conductor Size (mm²) | Stud Size | Inner Diameter (mm) | Die Recommendation |
|---|---|---|---|---|
| ATL95 | 95 | M10/M12/M16 | 13.2 | DL22 |
| ATL120 | 120 | M10/M12 | 14.7 | DL22 |
| ATL150 | 150 | M10/M12/M16 | 16.3 | DL25 |
| ATL185 | 185 | M12/M16 | 18.3 | DL28 |
| ATL240 | 240 | M12/M16 | 21 | DL32 |
| ATL300 | 300 | M16/M20 | 23.3 | N/A |
Installation Features
- Installation Features
- Clear Barrel MarkingsPre-filled CompoundDIN CompatibleEasy Alignment
