Bimetallic Lug Connector
These bimetallic lugs are used for transition connection of aluminum cable or aluminum alloy cable with copper end of electrical equipment in medium voltage. They feature an oil blocking structure and are friction welded.
Technical Specifications
Product Overview
High-Performance Bimetallic Transition Lugs
These bimetallic lugs are specifically designed for the transition connection between aluminum or aluminum alloy cables and copper ends of electrical equipment in medium voltage applications. Manufactured using a high-strength friction welding process, they ensure a reliable bond between the aluminum barrel and copper palm to prevent galvanic corrosion. Each unit comes pre-filled with jointing compound and features clear markings for precise crimping according to DIN standards.
Technical Standards
Manufacturing Standard
DIN 46329Germany Norm
Material Specifications
Material Purity
- Aluminum (Al) ≥ 99.5%
- Copper (Cu) ≥ 99.9%
Key Features
- Design & Construction
- Oil blocking structureFriction weldedPre-filled jointing compoundCrimp location markingsHigh conductivityCorrosion resistant
Application Range
Conductor Size Range
16 mm²
Min Conductor
400 mm²
Max Conductor

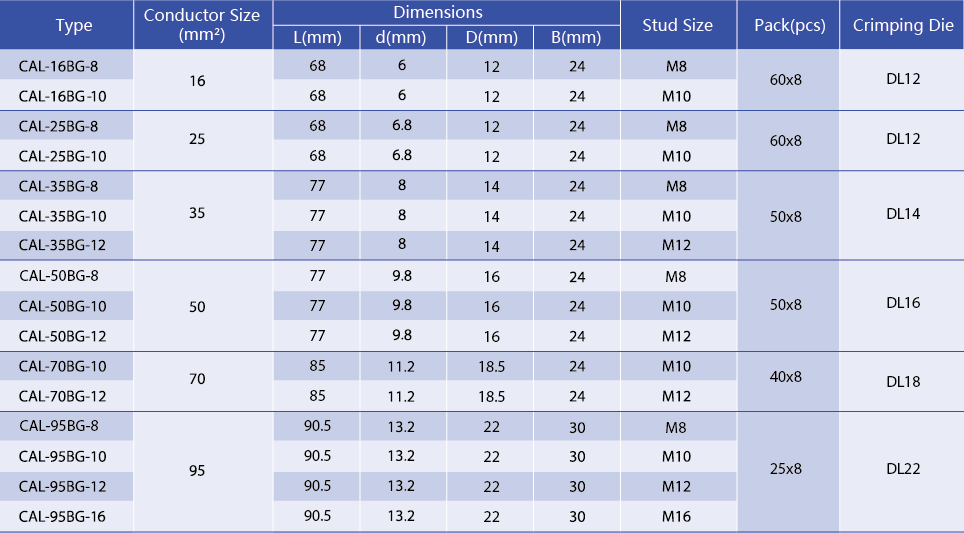

Dimensional Data (Small - Medium)
Specifications (16mm² - 95mm²)
| Type | Conductor (mm²) | Stud Size | L (mm) | Crimping Die |
|---|---|---|---|---|
| CAL-16BG-8 | 16 | M8 | 68 | DL12 |
| CAL-25BG-10 | 25 | M10 | 68 | DL12 |
| CAL-35BG-12 | 35 | M12 | 77 | DL14 |
| CAL-50BG-10 | 50 | M10 | 77 | DL16 |
| CAL-70BG-12 | 70 | M12 | 85 | DL18 |
| CAL-95BG-12 | 95 | M12 | 90.5 | DL22 |

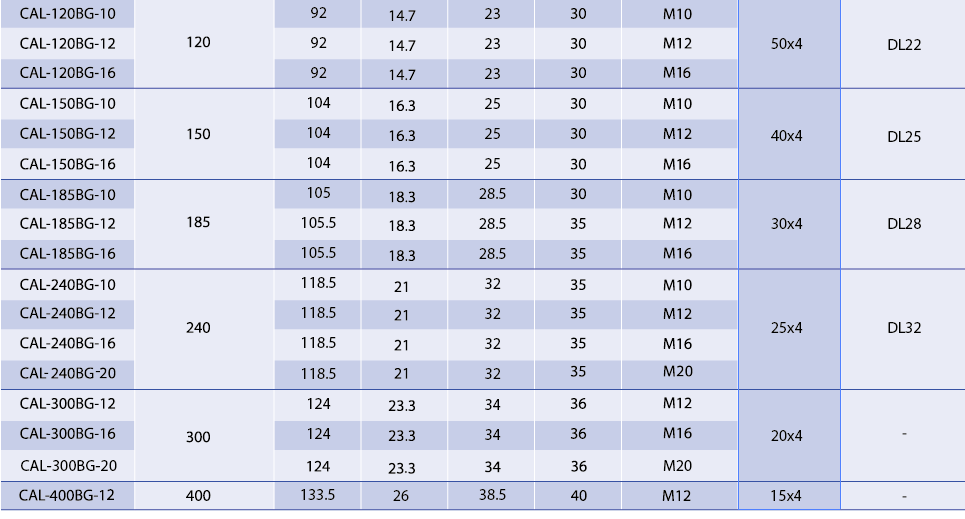

Dimensional Data (Large)
Specifications (120mm² - 400mm²)
| Type | Conductor (mm²) | Stud Size | L (mm) | Crimping Die |
|---|---|---|---|---|
| CAL-120BG-12 | 120 | M12 | 92 | DL22 |
| CAL-150BG-12 | 150 | M12 | 104 | DL25 |
| CAL-185BG-12 | 185 | M12 | 105.5 | DL28 |
| CAL-240BG-12 | 240 | M12 | 118.5 | DL32 |
| CAL-300BG-16 | 300 | M16 | 124 | DL34 |
| CAL-400BG-12 | 400 | M12 | 133.5 | DL38 |
