Bimetallic Lug Connector
Bimetallic lug connectors are used for connecting aluminum cables to copper ends of electrical equipment in low voltage applications. They feature clear markings for correct crimping and are prefilled with jointing compound.
Technical Specifications
Overview
High-Performance Bimetallic Termination
These bimetallic lugs are engineered for the transition connection of aluminum or aluminum alloy cables to copper electrical equipment terminals in low-voltage applications. They effectively prevent galvanic corrosion between dissimilar metals by utilizing a friction-welded copper palm and aluminum barrel. Prefilled with jointing compound and featuring clear crimping markings, they ensure a reliable, high-conductivity connection for power distribution and grounding systems.
Material Specifications
Aluminum Purity
99.5 %
Al Purity
Copper Purity
99.9 %
Cu Purity
Technical Features
Key Features
- Clear markings on barrel for precise crimping
- Compatible with DIN standard crimping dies
- Epoxy resin applied to copper-aluminum contact area
- Prefilled with jointing compound to prevent oxidation
- Application
- Transition connection of aluminum/aluminum alloy cables to copper ends in low voltage equipment.
Product Range

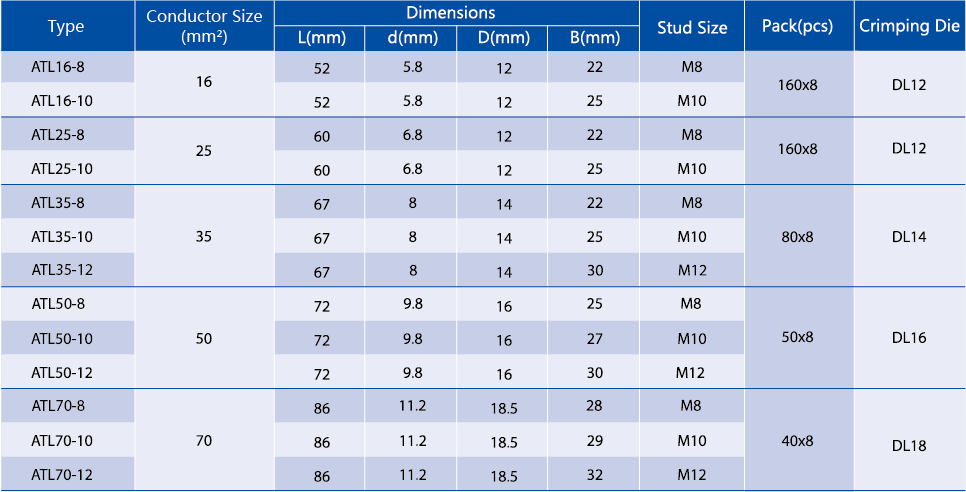

Dimensions (16mm² - 70mm²)
| Type | Conductor Size (mm²) | Stud Size | Length L (mm) | Die |
|---|---|---|---|---|
| ATL16-8 | 16 | M8 | 52 | DL12 |
| ATL25-10 | 25 | M10 | 60 | DL12 |
| ATL35-10 | 35 | M10 | 67 | DL14 |
| ATL50-12 | 50 | M12 | 72 | DL16 |
| ATL70-12 | 70 | M12 | 86 | DL18 |

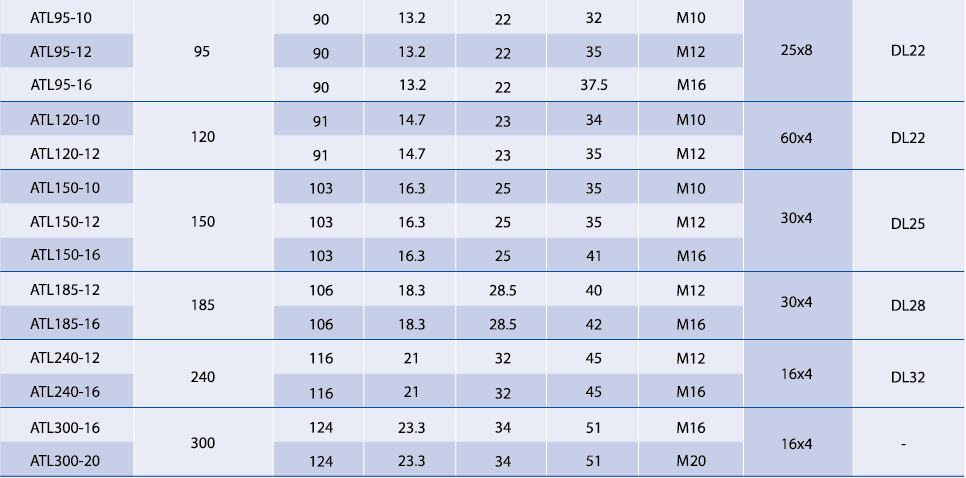

Dimensions (95mm² - 300mm²)
| Type | Conductor Size (mm²) | Stud Size | Length L (mm) | Die |
|---|---|---|---|---|
| ATL95-12 | 95 | M12 | 90 | DL22 |
| ATL120-12 | 120 | M12 | 91 | DL22 |
| ATL150-12 | 150 | M12 | 103 | DL25 |
| ATL185-16 | 185 | M16 | 106 | DL28 |
| ATL240-16 | 240 | M16 | 116 | DL32 |
| ATL300-20 | 300 | M20 | 124 | DL34 |
Standards & Compliance
- Standards Compliance
- DIN Standard CrimpingLow Voltage CompatibleBimetallic Transition
