Bimetallic Lug Connector
This bimetallic lug facilitates the connection of aluminum cables to copper ends in low-voltage electrical equipment. It features a friction-welded structure and a narrow palm design, making it suitable for equipment with limited contact space.
Technical Specifications
Overview
High-Performance Bimetallic Connection
The CALB-N series bimetal lugs are engineered for reliable transition connections between aluminum or aluminum alloy cables and copper electrical equipment terminals. Featuring a friction-welded construction, these lugs ensure a robust mechanical and electrical bond while preventing galvanic corrosion between dissimilar metals. The narrow palm design is specifically optimized for space-constrained installations such as MCCB and motor connections.
Key Features
Design Features
- Oil blocking structure to prevent leakage
- Friction welded joint for superior conductivity
- Narrow palm design for tight spaces
- Clear barrel markings for precise crimping
- Prefilled with jointing compound to prevent oxidation
Material Specifications
Material Purity
99.5 %
Aluminum Purity
99.9 %
Copper Purity
Compliance & Standards
Industry Standards
IEC61238-1:2003
Technical Specifications

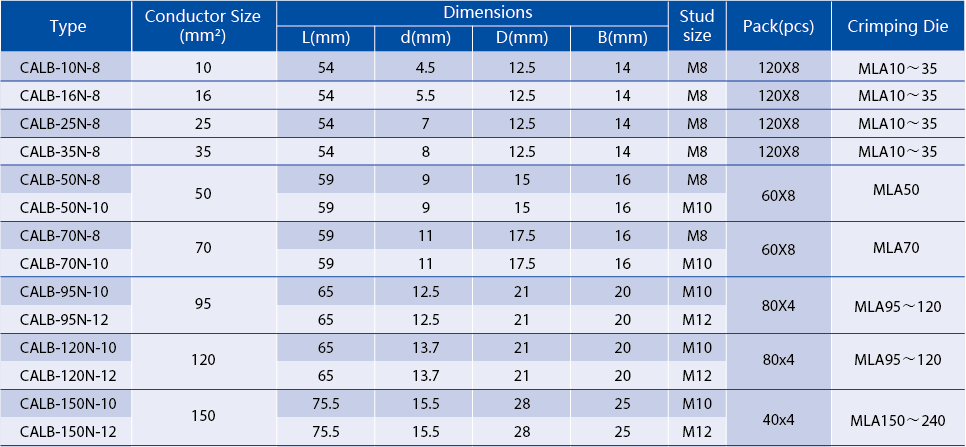

Small to Medium Range Specifications
| Type | Conductor Size (mm²) | Stud Size | Crimping Die |
|---|---|---|---|
| CALB-10N-8 | 10 | M8 | MLA10~35 |
| CALB-25N-8 | 25 | M8 | MLA10~35 |
| CALB-50N-10 | 50 | M10 | MLA50 |
| CALB-95N-12 | 95 | M12 | MLA95~120 |
| CALB-120N-12 | 120 | M12 | MLA95~120 |
| CALB-150N-12 | 150 | M12 | MLA150~240 |

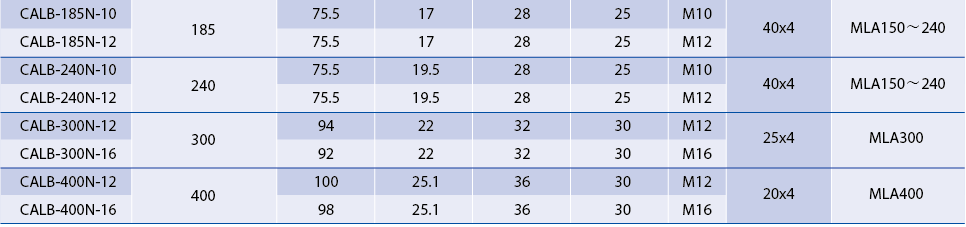

Large Range Specifications
| Type | Conductor Size (mm²) | Stud Size | Palm Width (mm) |
|---|---|---|---|
| CALB-185N-12 | 185 | M12 | 25 |
| CALB-240N-12 | 240 | M12 | 25 |
| CALB-300N-16 | 300 | M16 | 30 |
| CALB-400N-16 | 400 | M16 | 30 |
Application
- Primary Application
- Transition connection of aluminium or aluminium alloy cables to copper terminals in low voltage systems.
