Bimetallic Lug Connector
These bimetallic lugs are used for transition connections between aluminum or aluminum alloy cables and the copper ends of electrical equipment in low voltage applications. They feature an oil blocking structure and are friction welded and prefilled with jointing compound.
Technical Specifications
Product Overview
Bimetallic Lug Connector
The CAL-A Bimetallic Lug Connector is specifically engineered for the transition connection of aluminum or aluminum alloy cables to copper equipment terminals in low-voltage electrical systems. Utilizing a friction-welded construction, these connectors ensure a robust, reliable interface between dissimilar metals, minimizing resistance and preventing corrosion. Each unit is prefilled with jointing compound and incorporates an oil-blocking structure, making it an ideal solution for substations, switchgear, and critical power distribution installations.
Material & Construction
Material Composition
Key Features

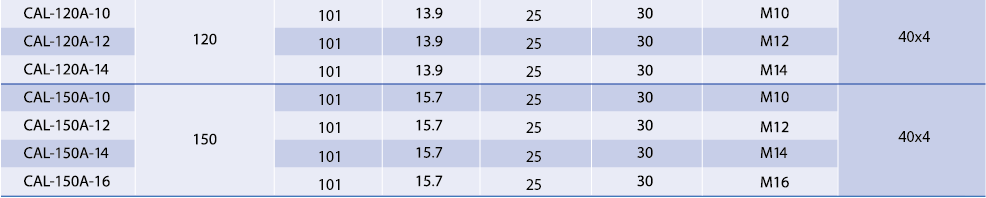

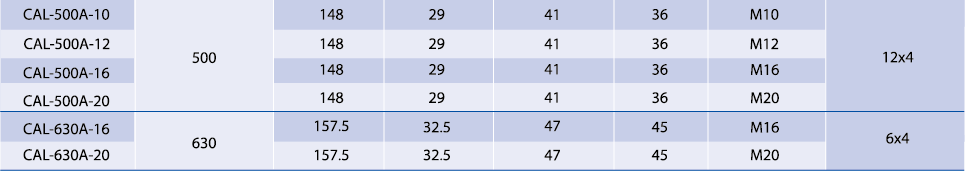

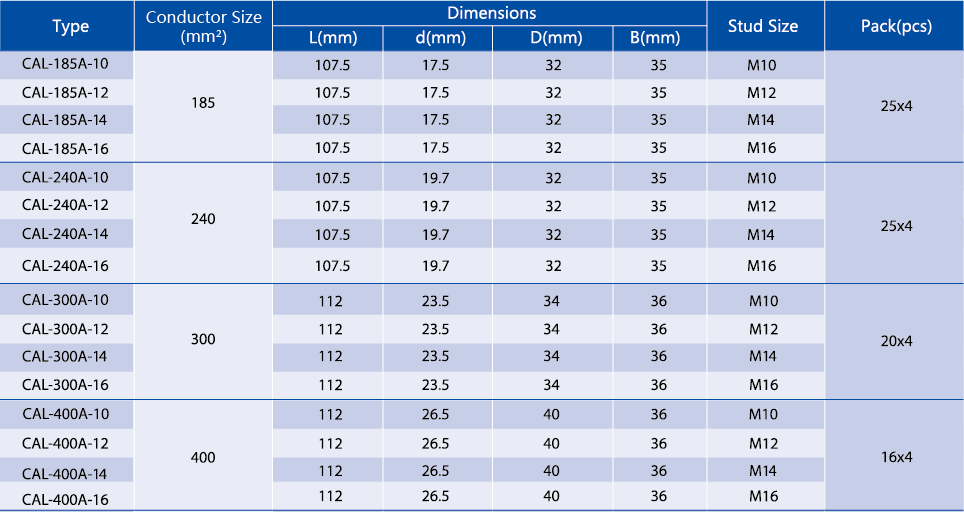

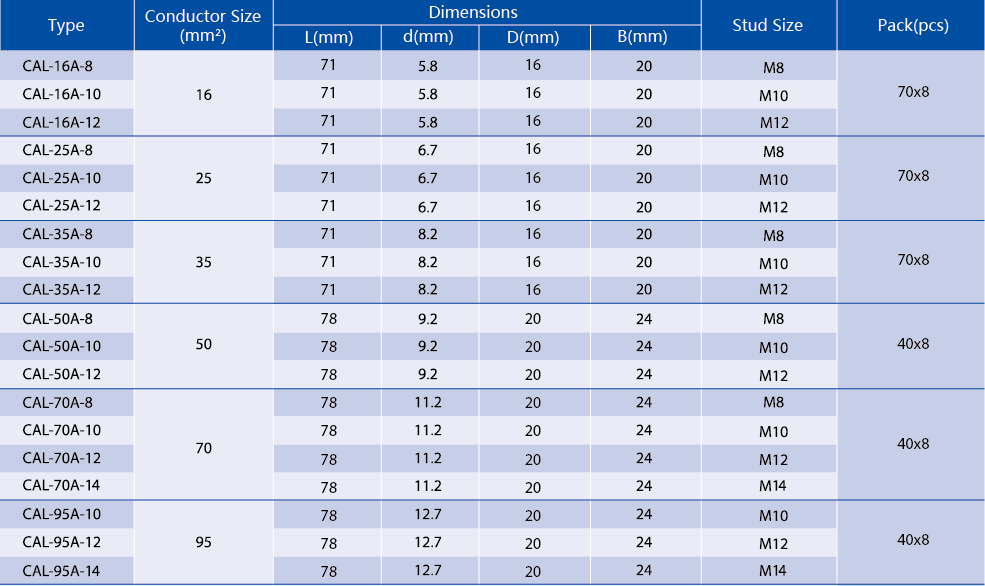

Technical Specifications
- Conductor Size Range
- 16mm² to 630mm²
- Compatible Stud Sizes
- M8M10M12M14M16M20
- Voltage Application
- Low Voltage
