Bimetallic Connector for Aluminum to Copper Cable Transition
These bimetallic connectors facilitate the transition between aluminum and copper cables in medium voltage applications. They are designed to prevent galvanic corrosion at the connection point.
Technical Specifications
Product Overview
Bimetallic Connector Overview
These bimetallic connectors are engineered for the reliable intermediate transition between aluminum or aluminum alloy cables and copper cables in medium voltage applications. Utilizing a high-strength friction welding process, they ensure optimal electrical conductivity and mechanical integrity. Each unit is prefilled with jointing compound to enhance longevity and performance in demanding electrical infrastructure.
- Materials & Compliance
- Al ≥ 99.5%Cu ≥ 99.9%DIN 46329 (Al)DIN 46235 (Cu)
Key Features
Core Features
- Oil blocking structure for enhanced safety
- Friction welded for superior strength
- Clear barrel markings for precise crimping
- Prefilled with jointing compound
Technical Specifications

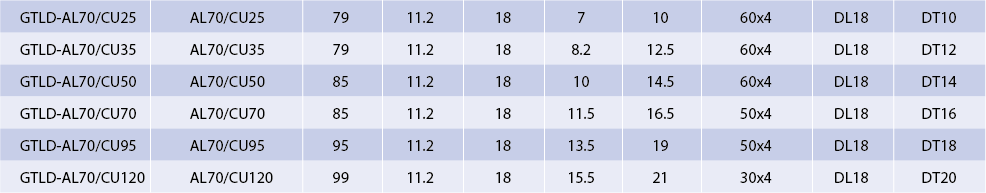

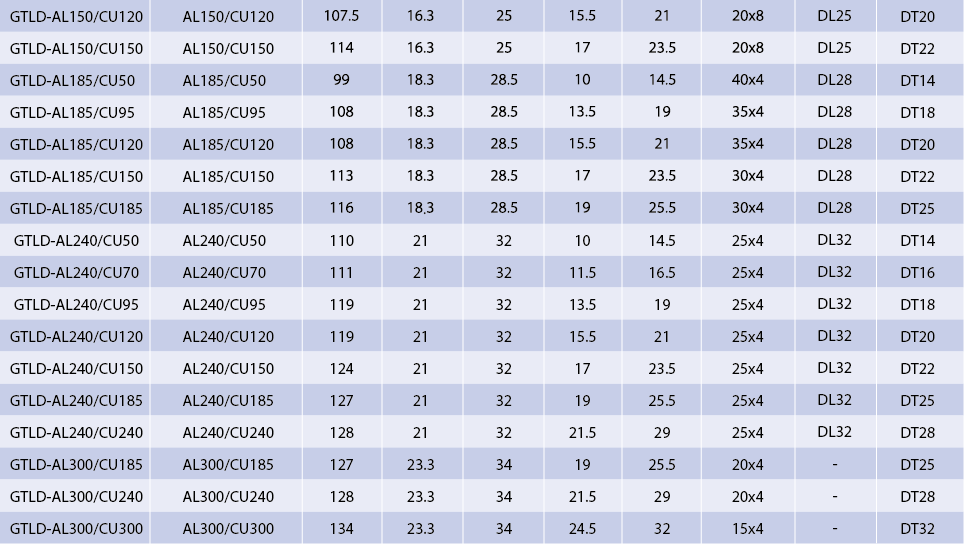

Connector Dimensions & Crimping Guide
| Type | Length (mm) | Al Crimping Die | Cu Crimping Die |
|---|---|---|---|
| GTLD-AL10/CU10 | 55 | DL10 | DT6 |
| GTLD-AL25/CU25 | 61 | DL12 | DT10 |
| GTLD-AL50/CU50 | 79.5 | DL16 | DT14 |
| GTLD-AL95/CU95 | 95 | DL22 | DT18 |
| GTLD-AL150/CU150 | 114 | DL25 | DT22 |
| GTLD-AL240/CU240 | 128 | DL32 | DT28 |
