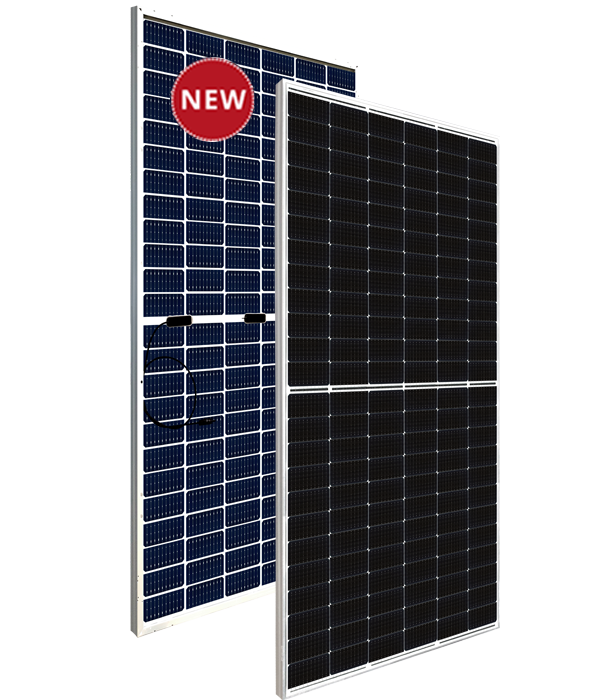

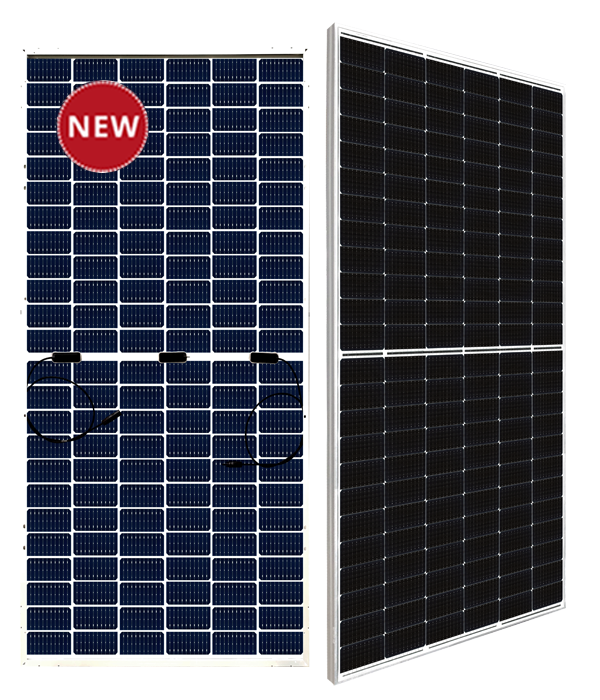

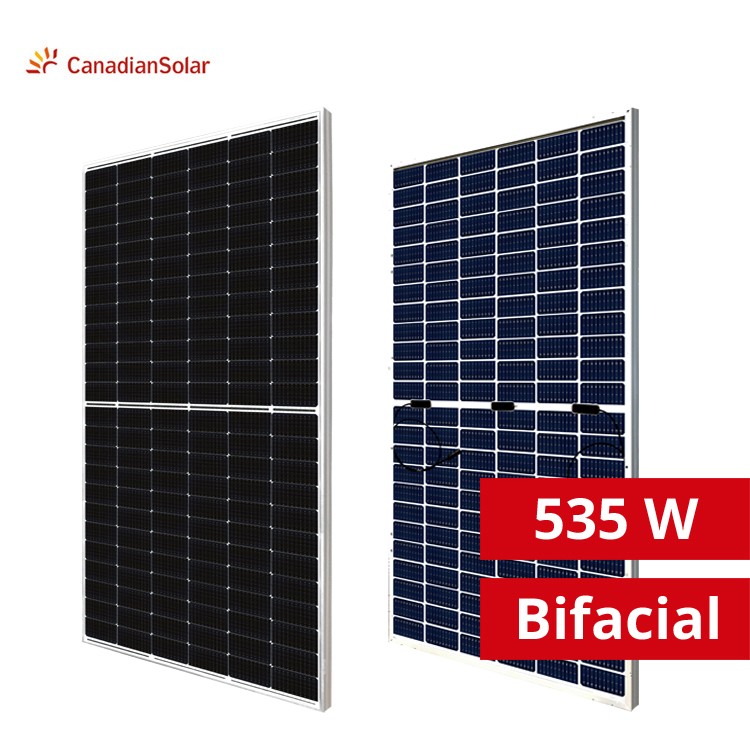

Bifacial High Power Mono PERC Solar Module
This bifacial high power module utilizes dual cell PERC technology. It achieves up to 30% more energy yield from the back side and operates at a low hot spot temperature.
Technical Specifications
Overview
High-Efficiency Bifacial Solar Technology
The BiHiKu6 is a high-power Mono PERC solar module designed to maximize energy yield by capturing sunlight from both the front and rear surfaces. Engineered for utility-scale and commercial installations, it features advanced dual-cell technology that significantly reduces the Levelized Cost of Energy (LCOE) and system costs. With enhanced shading tolerance and low hot spot temperatures, this module ensures reliable long-term performance in diverse environmental conditions.
- Module Type
- BifacialMono PERCDual CellHigh Power
Performance Highlights
Key Performance Metrics
550 W
Max Front Power
21.2 %
Max Efficiency
30 %
Bifacial Gain Up To
Electrical Specifications
Electrical Parameters
| Parameter | Value |
|---|---|
| Front Side Power Range | 520 ~ 550 W |
| Operating Temperature | -40°C ~ +85°C |
| Max. System Voltage | 1500V or 1000V (IEC/UL) |
| Module Fire Performance | CLASS C (IEC 61730) |
Mechanical Design
Mechanical Details
| Property | Specification |
|---|---|
| Dimensions | 2266 x 1135 x 35 mm |
| Weight | 32.2 kg |
| Cell Type | Mono-crystalline |
| Cell Arrangement | 144 [2 x (12 x 6)] |
| Wafer Size | 182 mm |
Junction Box Rating
IP68Split Design
Advanced Features
Technical Advantages
- Comprehensive LID / LeTID mitigation technology
- Up to 50% lower degradation rates
- Compatible with mainstream solar trackers
- IP68 split junction boxes for better heat dissipation
- Optimized cable length for reduced energy loss
- Low hot spot temperature for enhanced safety
