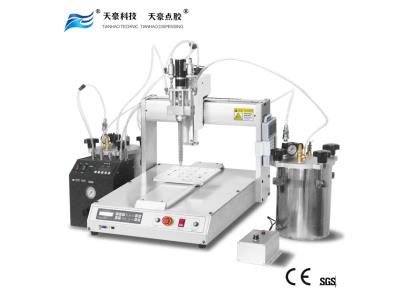

Benchtop Epoxy Resin Dispensing Robot with Automatic Cleaning
This automated benchtop dispensing robot is designed for the precise application of epoxy resin. It features a robotic arm for accurate dispensing, an integrated control system, and an automatic cleaning function.
Technical Specifications
Overview
Precision Benchtop Dispensing System
This benchtop dispensing robot is engineered for the precise application of epoxy resins and two-component adhesives. It features an integrated automatic cleaning function to minimize downtime and ensure consistent nozzle performance. Designed for industrial efficiency, the system supports complex dispensing patterns including 3D lines, circles, and arcs with high repeatability.
System Performance
Dispensing Capabilities
10,000 cps
Max Viscosity
1 1:1
Min Mixing Ratio
3 1:3
Max Mixing Ratio
- Supported Materials
- Epoxy ResinAB GlueAB AdhesiveTwo-Component Adhesives
Technical Specifications
Model Comparison
| Model | Working Range (mm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| TH-2004D-300 | 300 x 300 x 100 | 500 x 580 x 610 | 34 |
| TH-2004D-400 | 400 x 400 x 100 | 600 x 680 x 610 | 39 |
| TH-2004D-500 | 500 x 500 x 100 | 700 x 780 x 610 | 46 |
Motion Control
- Precision micro-stepper motor drive
- Timing belt transmission
- Precision linear guides
- 800/350 mm/axis speed
- Maximum Load
- 10 kg
Operation & Control
- Programming Interface
- Handheld Programmer with LCD display
- Program Memory
- 9999
- I/O Signals
- 4 Inputs / 4 Outputs
- Dispensing Patterns
- 3D LinesCirclesArcsContinuous PathsXYZ Simultaneous
Compliance & Environment
Certifications
CE Approved
- Operating Environment
- 0-40°C Temperature, 20-90% Relative Humidity (no condensation)
