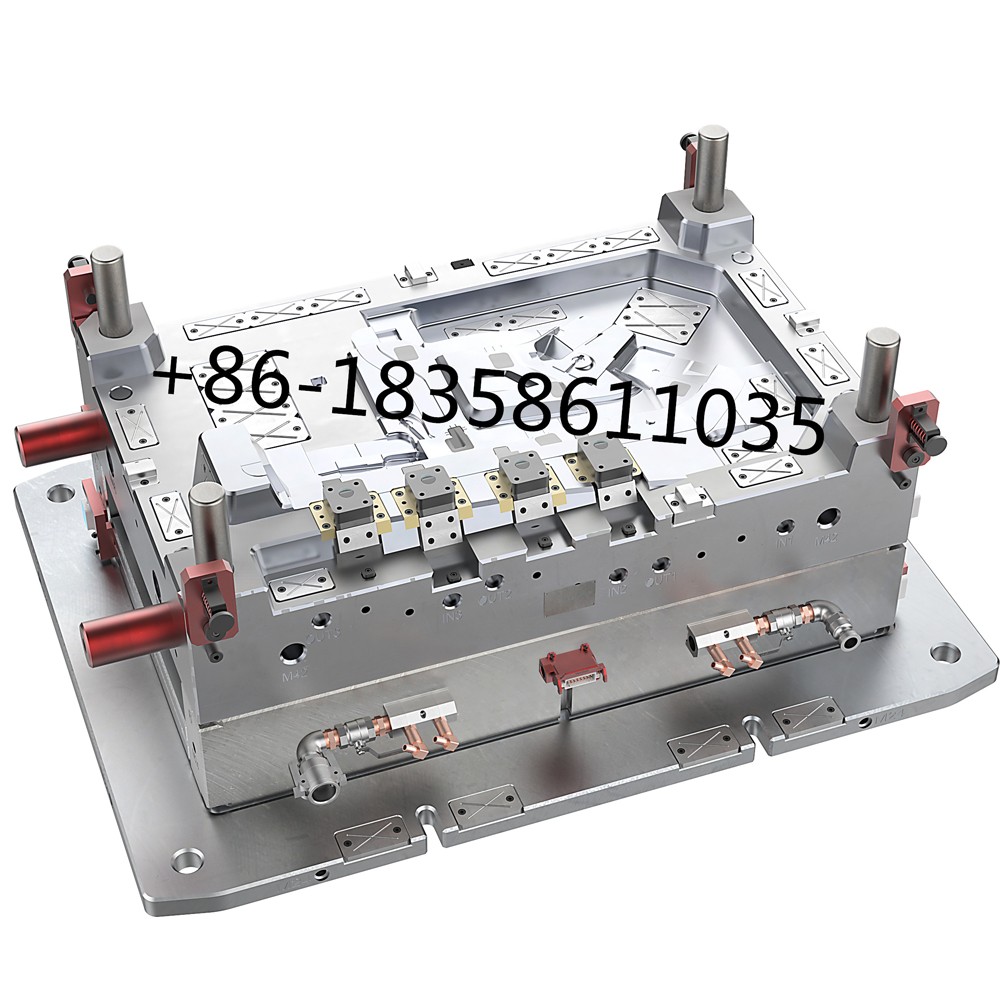

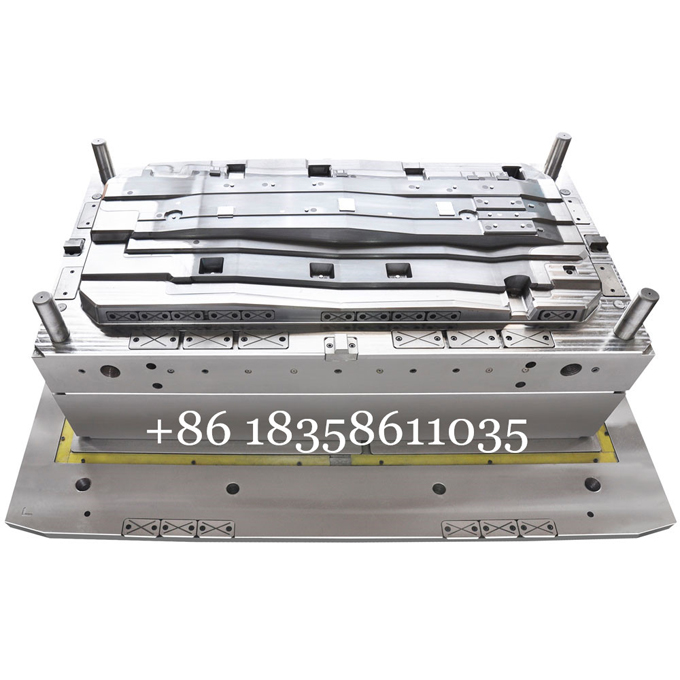

Automotive Part Injection Mold
Precision-engineered injection mold designed for manufacturing automotive parts. The multi-cavity configuration and advanced cooling channels ensure efficient production and consistent part quality.
Technical Specifications
Overview
Precision Automotive Injection Mold
This high-performance injection mold is engineered for the efficient production of complex automotive plastic components. Constructed from premium tool steel, it offers exceptional durability with a service life of up to 500,000 shots, ensuring reliability in high-volume manufacturing environments. Featuring advanced hot runner systems and precision valve gating, this mold is designed to optimize cycle times and maintain rigorous quality standards.
Technical Specifications
Supported Design Software
- UG
- PROE
- CAD
- CAXA
- Mold Steel Options
- 718P202738NAK80S136
- Compatible Plastic Materials
- PVCPCPPPEABS
Performance Metrics
Key Performance Indicators
500,000 shots
Max Mold Life
70 days
Max Delivery Time
Configuration & Build
Mold Configuration Details
| Feature | Specification |
|---|---|
| Mold Base | S50C |
| Cavity | Single |
| Runner System | Yudo Hot Runner |
| Gate Type | 2 Points Valve Gate |
Compliance & Logistics
Certifications
ISO9001:2008
- Accepted Payment Terms
- T/TL/C
