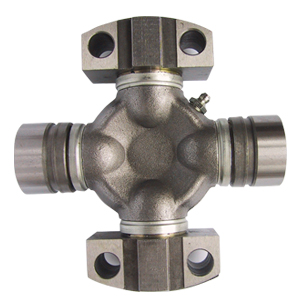

Automotive Compound Universal Joint
This compound U-joint is a critical component in automotive transmissions, designed to transmit torque and allow for angular misalignment between rotating shafts. It features a robust construction with a central cross-shaped element and four yokes for connecting to the shafts.
Technical Specifications
Product Overview
Automotive Compound Universal Joint
This compound universal joint is a critical component in automotive transmissions, engineered to transmit torque while allowing for angular misalignment between rotating shafts. Featuring a robust construction with a central cross-shaped element, it is designed for reliable power transfer in demanding conditions. The unit is built from hardened steel to ensure durability, wear resistance, and an extended service life in both standard and heavy-duty vehicles.
Technical Specifications
Construction Material
Hardened Steel
- Trunnion Diameter Range
- Φ14.8 - Φ99
- Span Range
- 43.5 - 278
- Application Compatibility
- Automotive TransmissionStandard VehiclesHeavy-Duty Vehicles
Key Features
Performance Highlights
1 High
Torque Transmission Capability
1 High
Wear Resistance
Maintenance & Design
- Grease fittings for lubrication
- Central cross-shaped element
- Four-yoke connection design
- Precision-engineered fit
