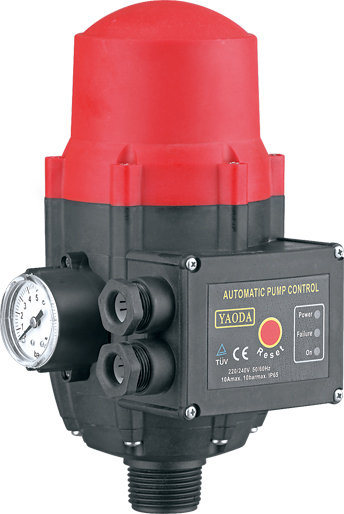

Automatic Water Pump Pressure Controller
This automatic pressure controller is designed for water pumps. It features adjustable starting pressure and includes indicator lights for power, failure, and operation status.
Technical Specifications
Product Overview
Intelligent Water Pump Control
This automatic water pump pressure controller is designed to optimize water piping systems by automating pump operation. It detects pressure drops when taps are opened to start the pump and stops it when flow ceases, replacing complex traditional systems like five-way connectors and pressure tanks. The unit also features an automatic shut-off function during water shortages, ensuring system protection and reliability for both drinking and non-potable water applications.
Technical Specifications
Starting Pressure Options
- 1.5 bar
- 2.2 bar
IP Rating
IP65
- Rated Voltage
- 220-240V
- Rated Current
- 10 A
- Maximum Pressure
- 10 bar
- Connector Size
- G1"
Key Features
- System Capabilities
- Automatic Start/StopDry Run ProtectionIntegrated Pressure GaugeEasy InstallationMaintenance Friendly
Customization & Accessories
Available Options
| Category | Description |
|---|---|
| Appearance | Customizable product color |
| Cabling | Power or motor cable options |
| Connectors | R1" Plastic Quick Connector |
| Components | Electronic board / Plastic parts |
