Automatic Water Pressure Booster Pump 175W
This automatic water pressure booster pump is designed to increase water pressure in residential and light commercial applications. It incorporates an automatic pressure switch to start and stop the pump based on water demand, ensuring consistent water pressure.
Technical Specifications
Product Overview
Reliable Water Pressure Solution

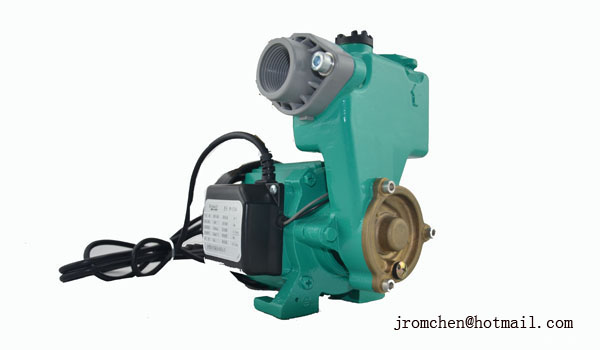

The PW-175 automatic water pressure booster pump is designed for consistent performance in residential and light commercial settings. Featuring a durable cast iron body and corrosion-resistant components, this pump ensures stable water delivery for various applications. Its compact design and automatic pressure switching make it an efficient and low-maintenance choice for improving water flow in heating, cooling, and supply systems.
Technical Specifications
Output Power
175 W
Output Power
300 W
Input Power
- Electrical Requirements
- 220V / 50Hz
Performance Metrics
Flow Capacity
33 L/min
Max Flow
18 L/min
Rated Flow
Pressure Head
30 m
Max Head
10 m
Rated Head
- Max Pressure
- 4 bar
Physical Construction
Materials
| Component | Material |
|---|---|
| Body | Cast Iron |
| Impeller | Copper |
| Shaft | Stainless Steel |
| Mechanical Seal | Graphite & Ceramic |
Weight and Port Size
- Weight: 8 kg
- Inlet Size: 25 mm
- Outlet Size: 25 mm
Operating Conditions
Operating Limits
- Max Temperature: 60°C
- Max Suction: 8 m
- Protection Rating: IP44
Product Features
- Highlights
- Automatic Pressure SwitchStable PerformanceCompact DesignEasy Maintenance
Product Applications
Common Applications
- Water tower supply
- Groundwater pumping
- Solar energy systems
- Boiler feed water
- Home HVAC
