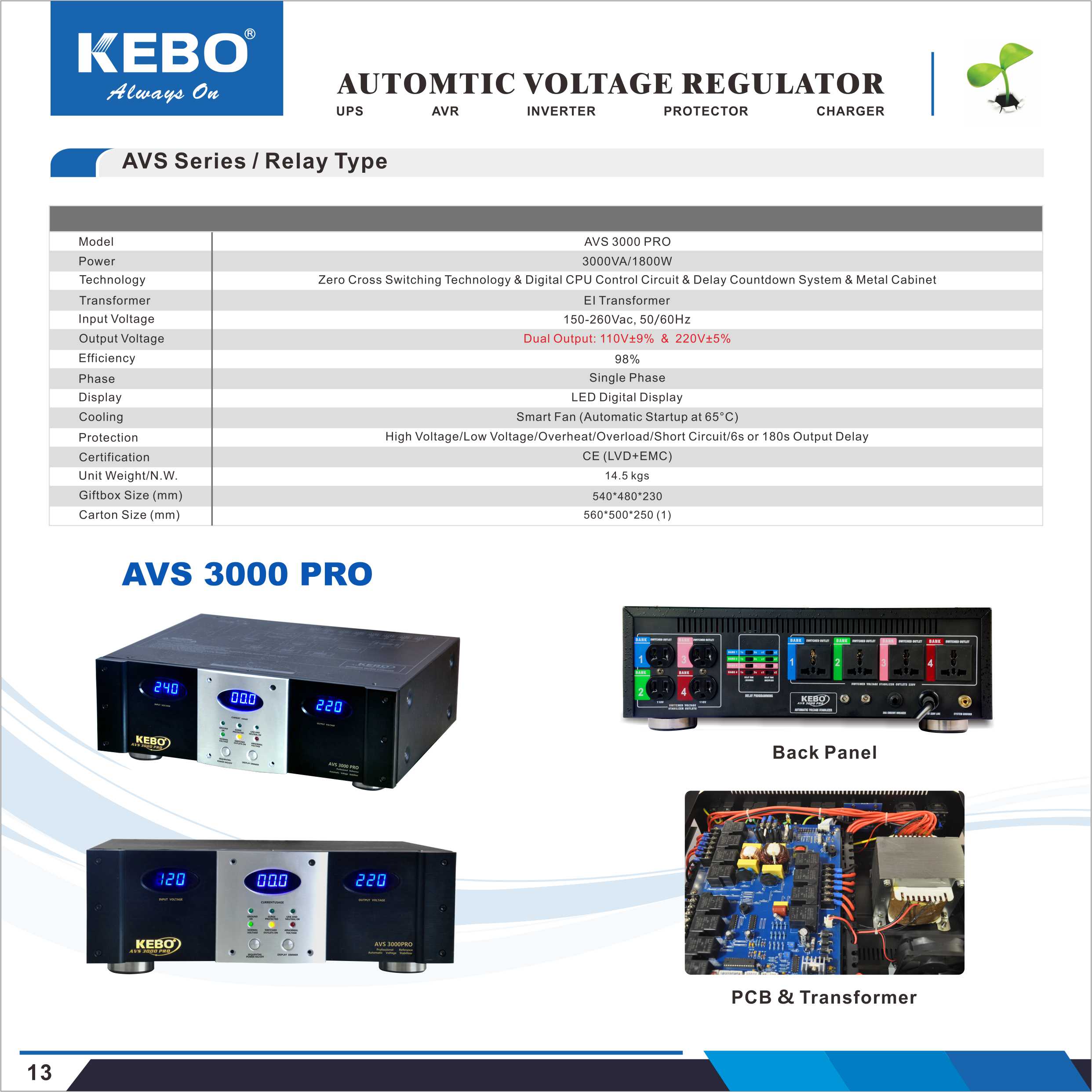

Technical Specifications
Product Overview
Professional Voltage Stabilization

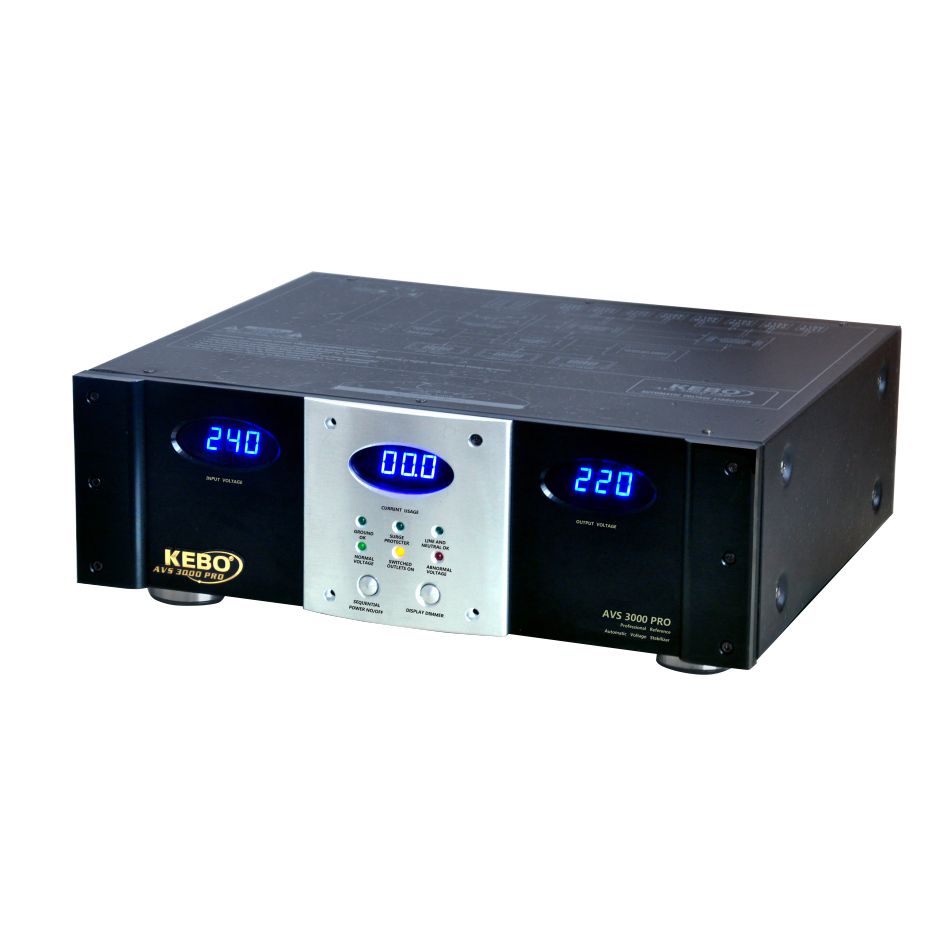

This automatic voltage stabilizer is engineered to provide reliable, stable power for sensitive equipment, including Hi-Fi systems. It features advanced zero-cross switching technology and digital CPU control to ensure consistent performance. Housed in a durable, full-metal cabinet, the unit includes comprehensive protection features and a buzzer alarm to alert users to power abnormalities.
Performance Metrics
Capacity
3,000 VA
Apparent Power
1,800 W
Active Power
Electrical Specifications
Output Voltages
| Output Type | Tolerance |
|---|---|
| 110V | ±9% |
| 220V | ±5% |
- Input Voltage Range
- 150-260Vac
- Frequency
- 50 Hz
- Efficiency
- 98 %
Features & Protection
Output Delay Options
- 6 seconds
- 180 seconds
- Protection Features
- High VoltageLow VoltageOverheatOverloadShort Circuit
- Cooling System
- Smart fan (automatic startup at 65°C)
Physical & Certification
Certifications
CELVDEMC
Dimensions & Weight
| Metric | Value |
|---|---|
| Net Weight | 14.5 kg |
| Giftbox Size | 540 x 480 x 230 mm |
| Carton Size | 560 x 500 x 250 mm |
