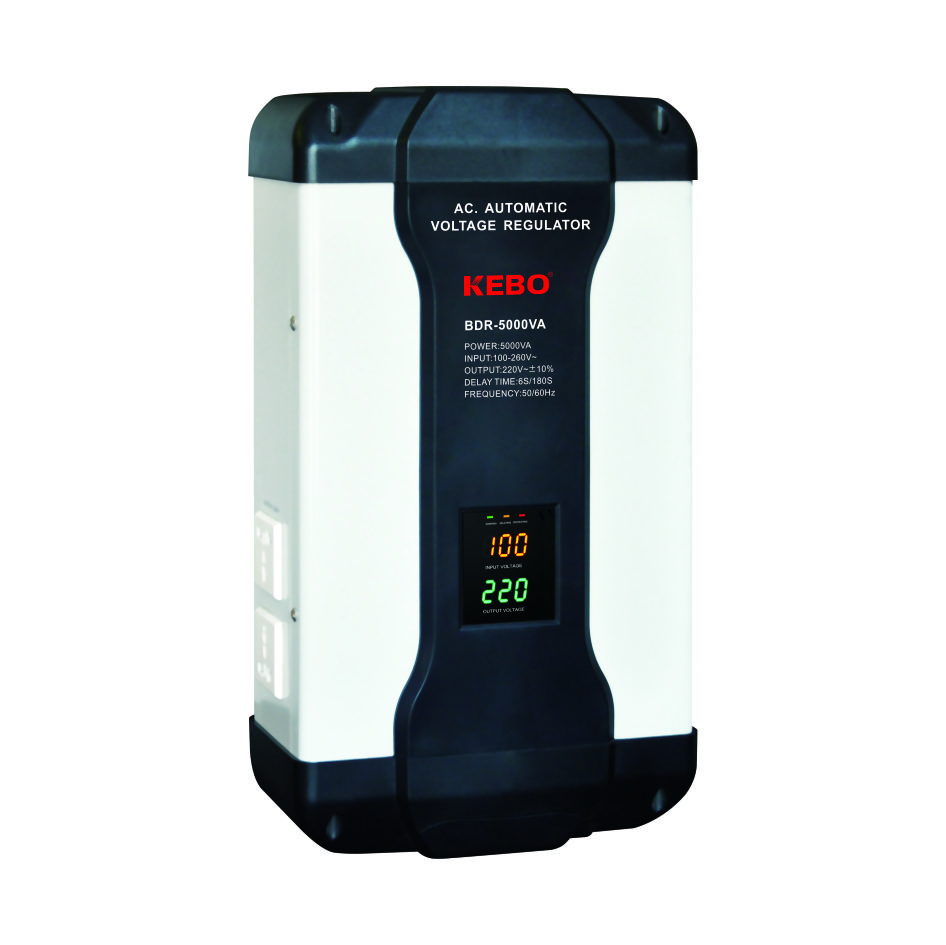

Automatic Voltage Regulator with Wide Input Range
This automatic voltage regulator features a wide input voltage range and full protection. It has an integrated display and is suitable for various applications requiring stable power.
Technical Specifications
Overview
High-Performance Voltage Stabilization
This series of Automatic Voltage Regulators (AVR) is engineered to provide a stable and reliable power supply for sensitive electronic equipment, effectively protecting against harmful voltage fluctuations. Featuring advanced zero-cross switching technology and a digital CPU control circuit, these units ensure high efficiency and precision. The robust metal cabinet and wall-mounted design make them ideal for both industrial and domestic environments where space and durability are priorities.
Key Performance Metrics
Performance Highlights
98 %
Efficiency
5,000 VA
Max Capacity
220 V
Output Voltage

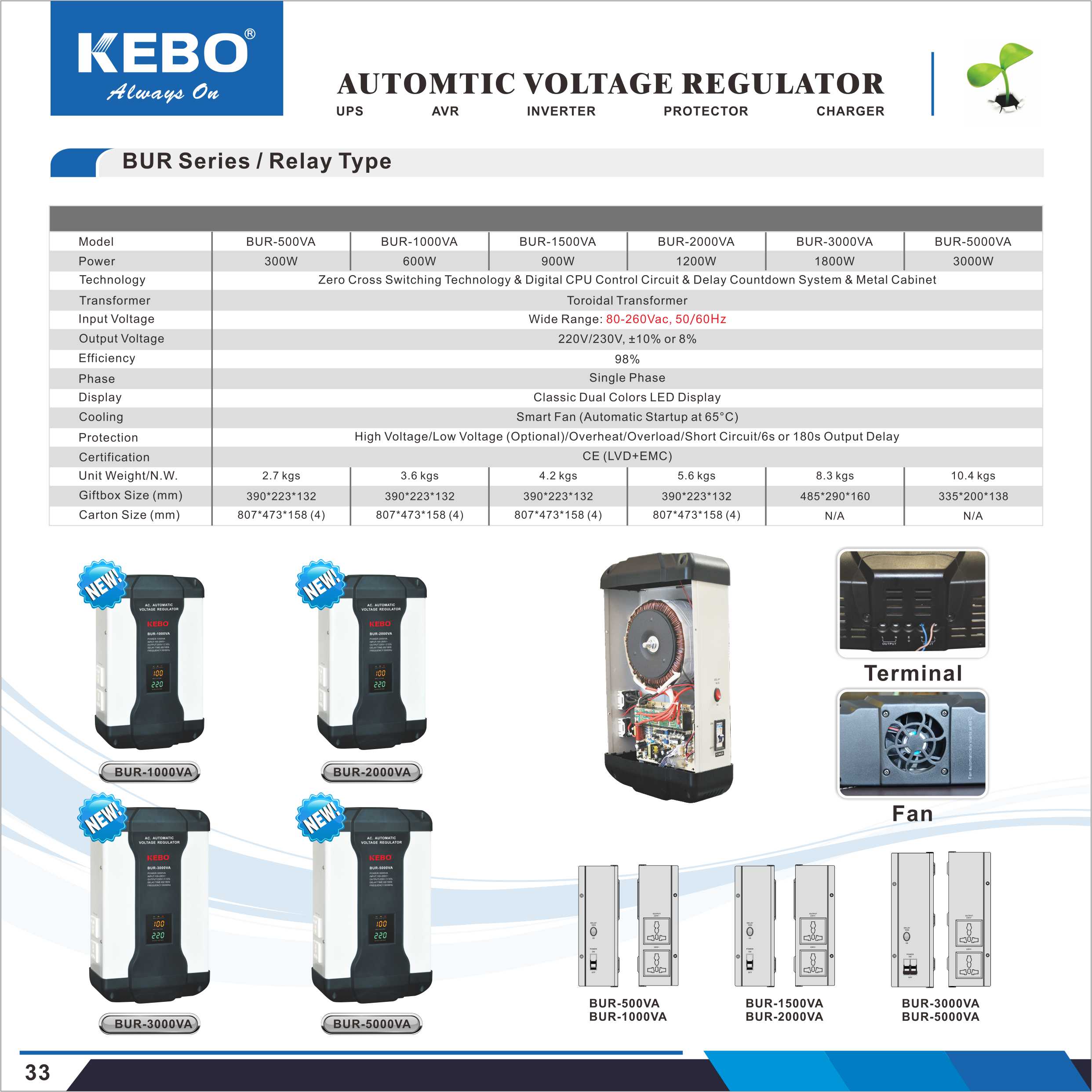

Technical Specifications
- Input Voltage Range
- 80-260Vac / 100-260Vac / 140-260Vac (Selectable)
- Output Precision
- ±8% or ±10%
- Frequency
- 50/60Hz
- Phase
- Single Phase

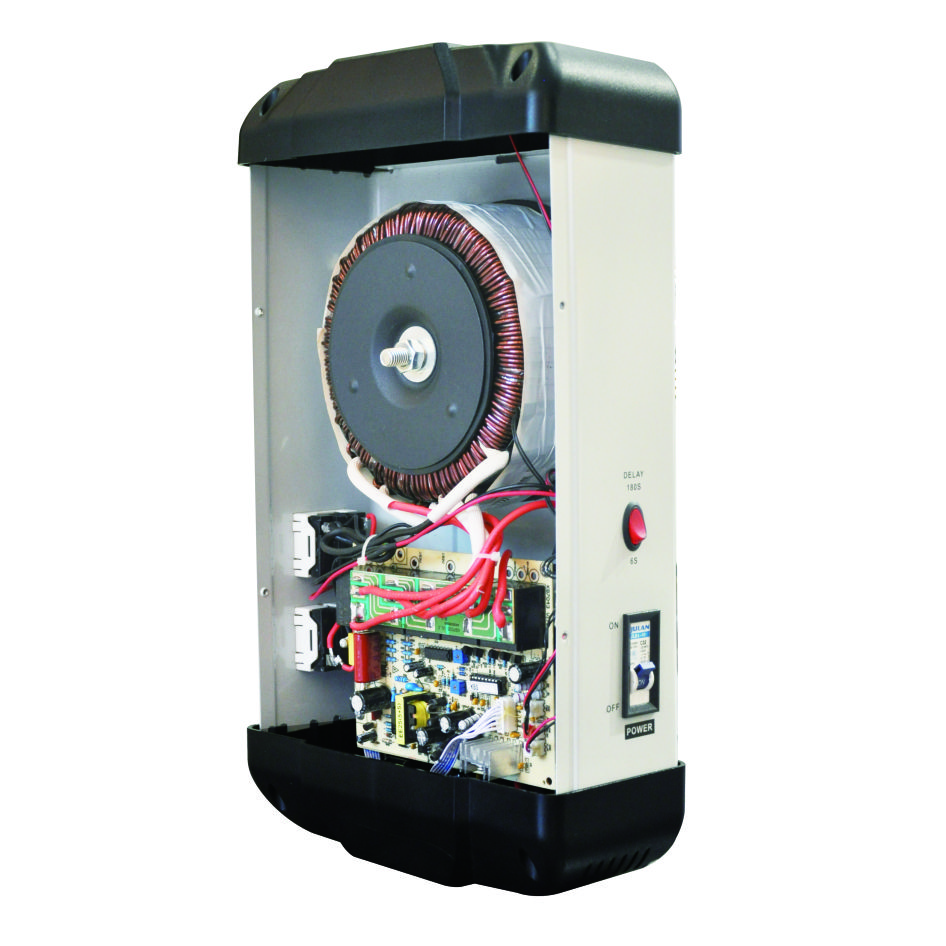

- Transformer Technology
- Toroidal Transformer
Control & Interface
Output Delay Timer
- 6 Seconds (Short Delay)
- 180 Seconds (Long Delay)
- Display
- Multifunctional Integrated Colorful LED Digital Display
Protection Systems
- Safety Protections
- High VoltageLow VoltageOverheatOverloadShort CircuitBuzzer Alarm
- Cooling Method
- Smart Fan (Automatic startup at 65°C)

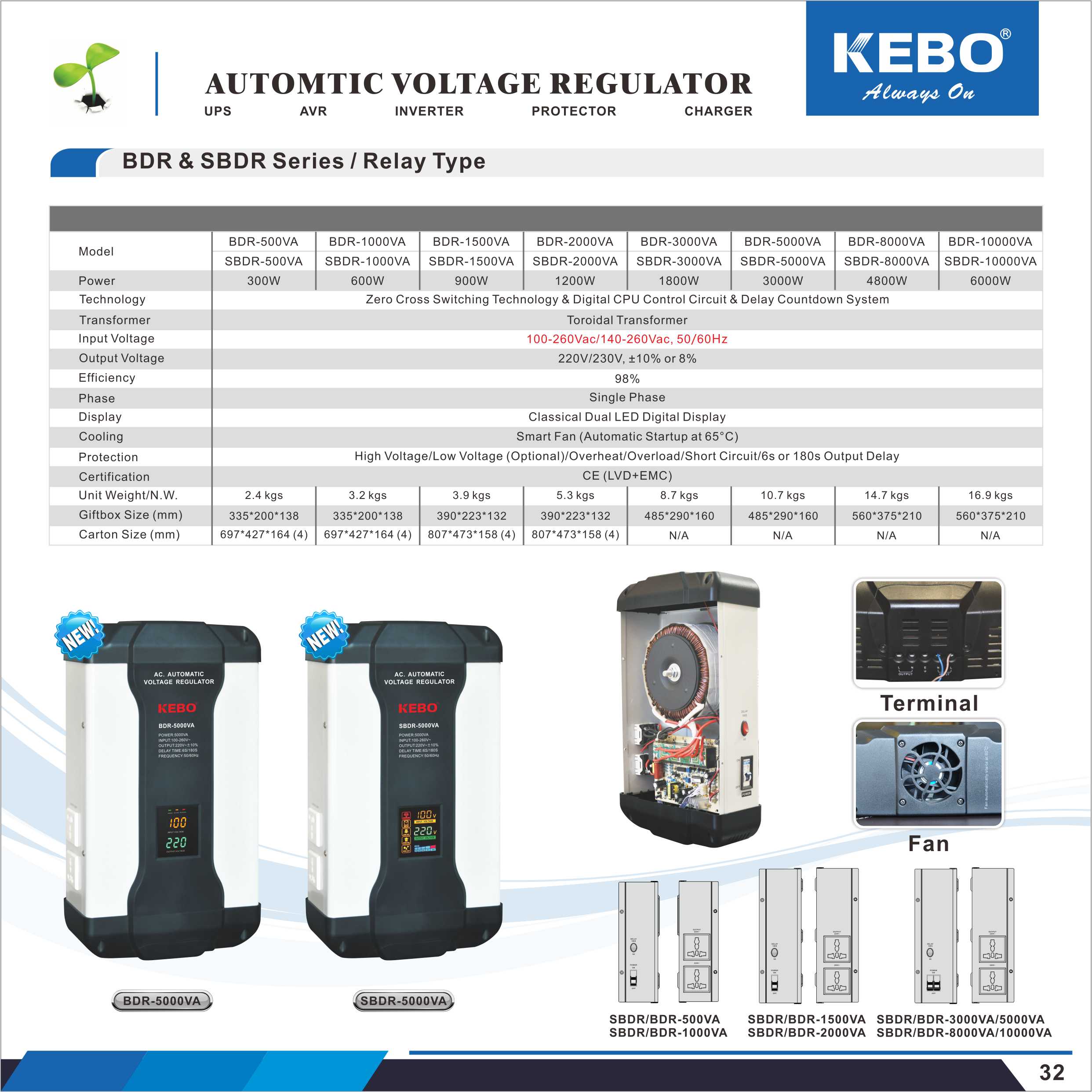

Model Comparison
Series Power Ratings
| Model Capacity | Power Rating (W) | Net Weight (kg) |
|---|---|---|
| 500VA | 300 | 2.4 |
| 1000VA | 600 | 3.2 |
| 2000VA | 1,200 | 5.3 |
| 3000VA | 1,800 | 8.7 |
| 5000VA | 3,000 | 10.7 |
| 10000VA | 6,000 | 16.9 |
Compliance
Certifications
CELVDEMC
Physical Design
Enclosure Features
- Full Metal Cabinet
- Wall Mounted Design
- Optimized MCU for Welding Machines
