Technical Specifications
Product Overview
Reliable Voltage Stabilization for Sensitive Electronics
This wall-mounted automatic voltage regulator features a durable plastic cabinet and advanced zero-cross switching technology for seamless power management. Equipped with an optimized MCU circuit and a comprehensive buzzer alarm system, it provides robust protection against voltage fluctuations. Designed for professional environments, it ensures a stable 220V/230V output to safeguard your critical electrical equipment.
Key Performance Metrics
Key Performance Metrics
98 %
Efficiency
10 ±%
Output Precision
160 Vac
Min Input Voltage
Technical Specifications
- Technology
- Relay Type with Zero Cross Switching
- Transformer
- EI Transformer
- Input Voltage Range
- 160-260Vac
- Frequency
- 50/60Hz
- Phase
- Single Phase
Protection & Safety
Selectable Output Delay
- 6 seconds
- 180 seconds
- Protection Systems
- High VoltageLow VoltageOverheatOverloadShort CircuitBuzzer Alarm
Control & Interface
- Display
- LED Digital Display
- Control Circuit
- Digital CPU Control with Delay Countdown System
Model Variants

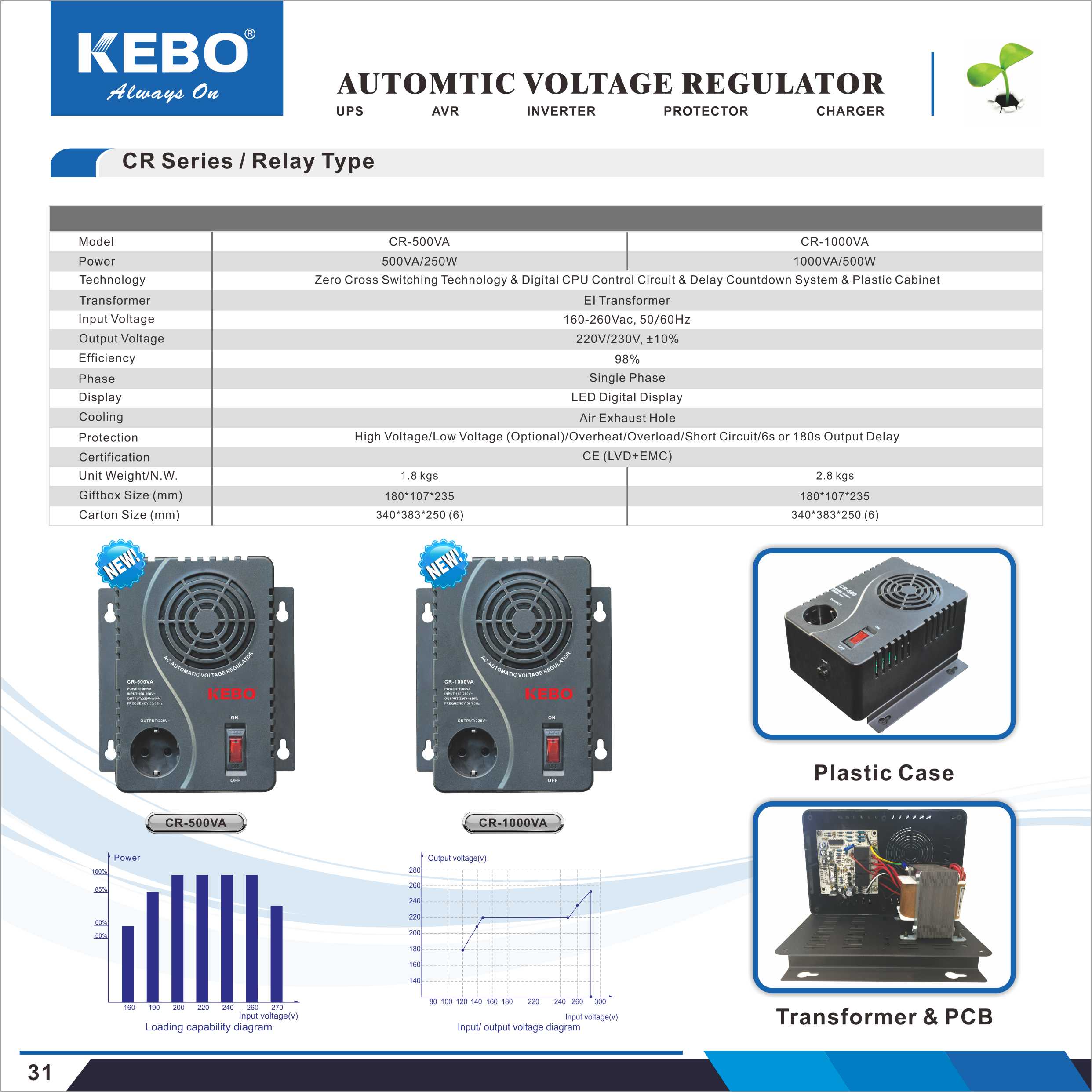

CR Series Model Comparison
| Model | Power Rating | Net Weight |
|---|---|---|

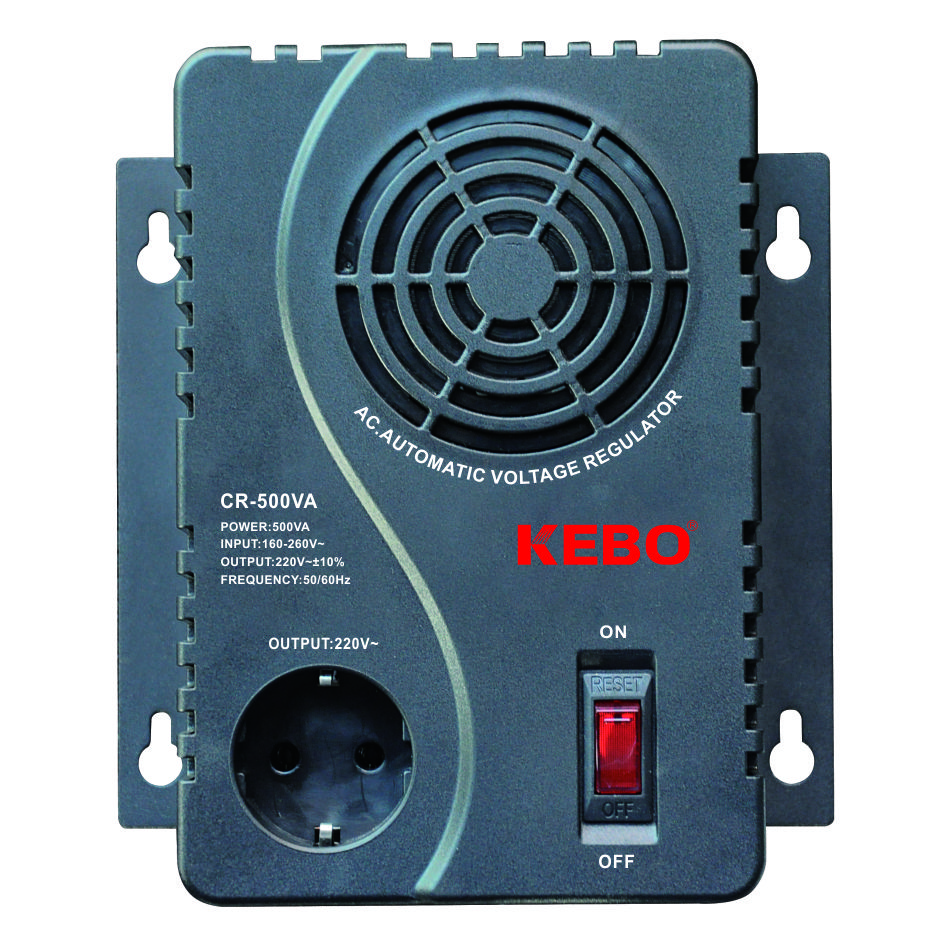

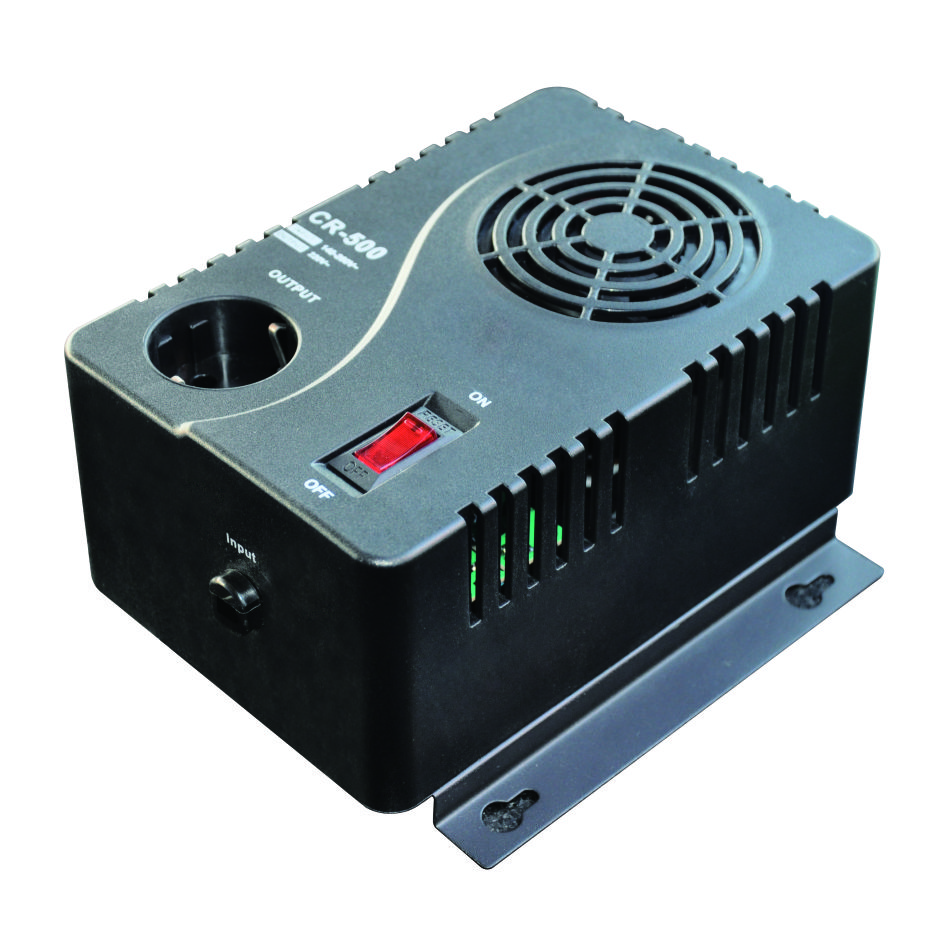

| CR-500VA | 500VA / 250W | 1.8 kgs |
| CR-1000VA | 1000VA / 500W | 2.8 kgs |

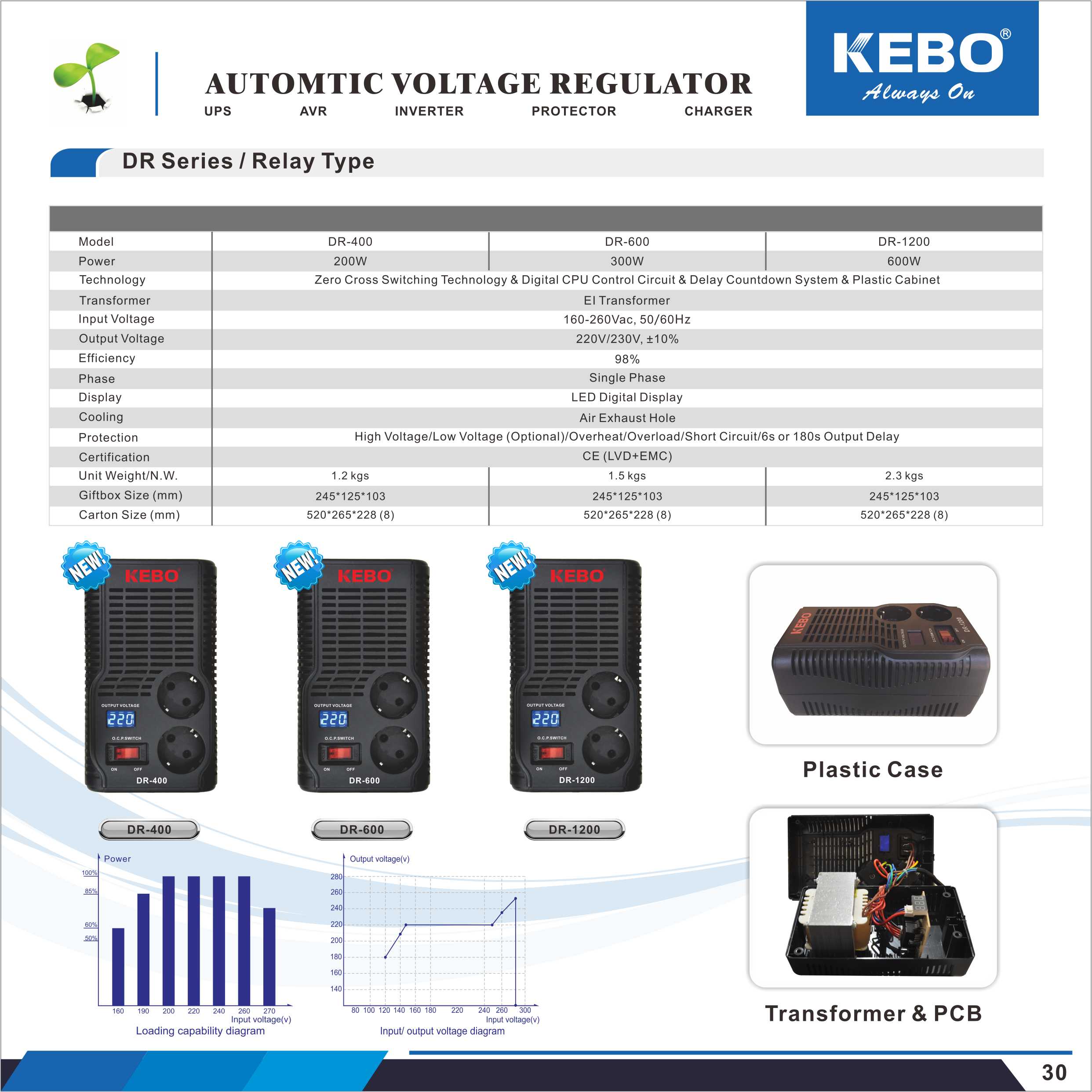

DR Series Model Comparison
| Model | Power Rating | Net Weight |
|---|---|---|
| DR-400 | 200W | 1.2 kgs |
| DR-600 | 300W | 1.5 kgs |
| DR-1200 | 600W | 2.3 kgs |
Certifications
Compliance
CE (LVD+EMC)
Physical Construction
- Cabinet Material
- Plastic
- Cooling System
- Air Exhaust Hole / Cooling Fan
