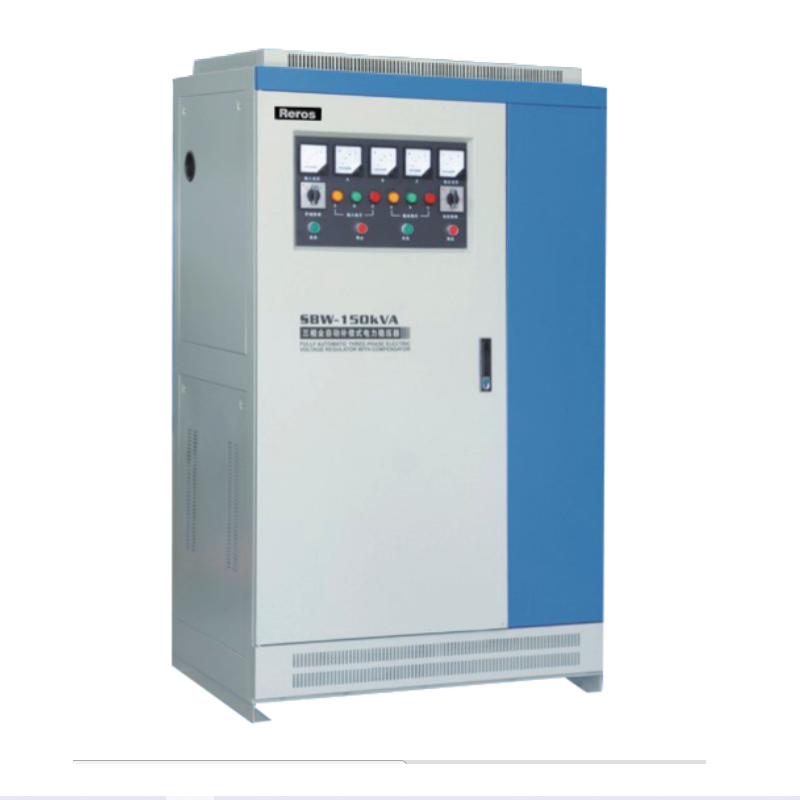

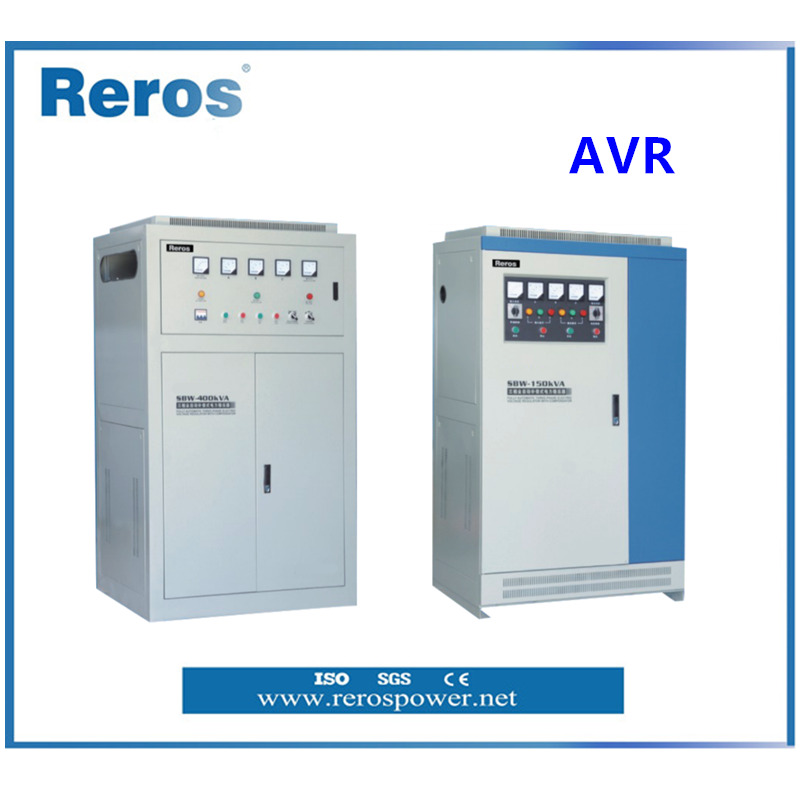

Automatic Voltage Regulator AVR 10-1000KVA
This automatic voltage regulator (AVR) provides high efficiency and no waveform distortion. It features a wide input voltage range and strong overload capability.
Technical Specifications
Overview
Automatic Voltage Regulator (AVR) Overview
This high-efficiency Automatic Voltage Regulator (AVR) is engineered to provide stable, reliable voltage output for critical electrical systems. Designed to operate continuously without intervention, it features robust protection mechanisms against voltage fluctuations and phase issues. It is an ideal solution for industrial, transportation, and telecommunication sectors requiring precise power control.
Key Features
Suitable Applications
- Transportation Systems
- Medium-sized Industrial Facilities
- Railway Stations
- Telecommunication Infrastructure
- Key Advantages
- High EfficiencyNo Waveform DistortionWide Input Voltage RangeStrong Overload CapabilityHigh Reliability
Performance Metrics
Efficiency
98 %
Efficiency
Safety & Protection
Over Voltage ProtectionLack of Phase ProtectionPhase Sequence ProtectionFilteringShort Circuit Protection
Technical Specifications
Series Comparison
| Feature | DBW/SBW Series | MSZW Series |
|---|---|---|
| Capacity | 10-1000KVA | 10-2000KVA |
| Regulation Accuracy | ±2.5% | ±1% / ±3% / ±5% |
| Response Time | ≤1.6S | ≤10MS |
| Frequency | 50/60Hz | 50/60Hz |
- Insulation Resistance
- ≥2MΩ
- Cooling Method
- Forced Cooling
- Operation Mode
- Long-term continuous operation
