Automatic Voltage Protector with Overload Protection
This automatic voltage protector safeguards electrical appliances from voltage fluctuations. It provides protection against high voltage, low voltage, overload, overheat, short circuit, and surges.
Technical Specifications
Product Overview
Comprehensive Power Protection
This automatic voltage protector is designed to safeguard sensitive electrical appliances from common power hazards, including high and low voltage fluctuations, overloads, and short circuits. It effectively mitigates damage caused by surges and spikes, ensuring a stable power supply for connected equipment. With user-configurable settings for delay times and voltage thresholds, this device offers flexible protection tailored to various operational requirements.
Technical Specifications
Delay Time Settings
- 1s
- 6s
- 300s
- Input Voltage Range
- 140-280Vac ±5Vac
- Output Frequency
- 50/60Hz
Protection Features
Safety Standards
CE (LVD)CE (EMC)
- Protection Coverage
- High VoltageLow VoltageOverloadShort CircuitSurgeSpike

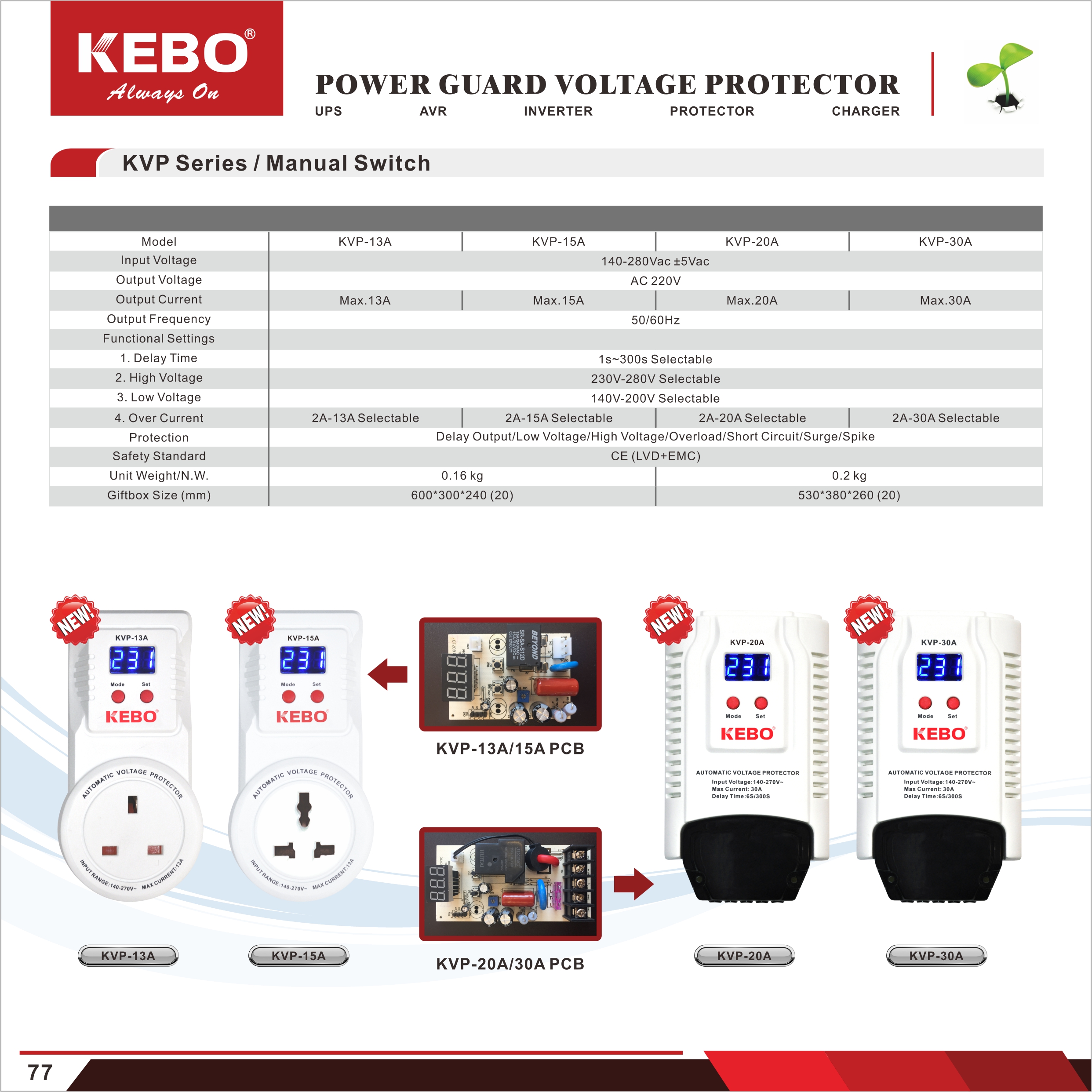

Model Comparison
Model Specifications
| Model | Max Current | Over Current Protection |
|---|---|---|
| KVP-13A | 13A | 2A-13A |
| KVP-15A | 15A | 2A-15A |
| KVP-20A | 20A | 2A-20A |
| KVP-30A | 30A | 2A-30A |
Adjustable Parameters
Configurable Thresholds
230 V - 280V
High Voltage Range
140 V - 200V
Low Voltage Range
