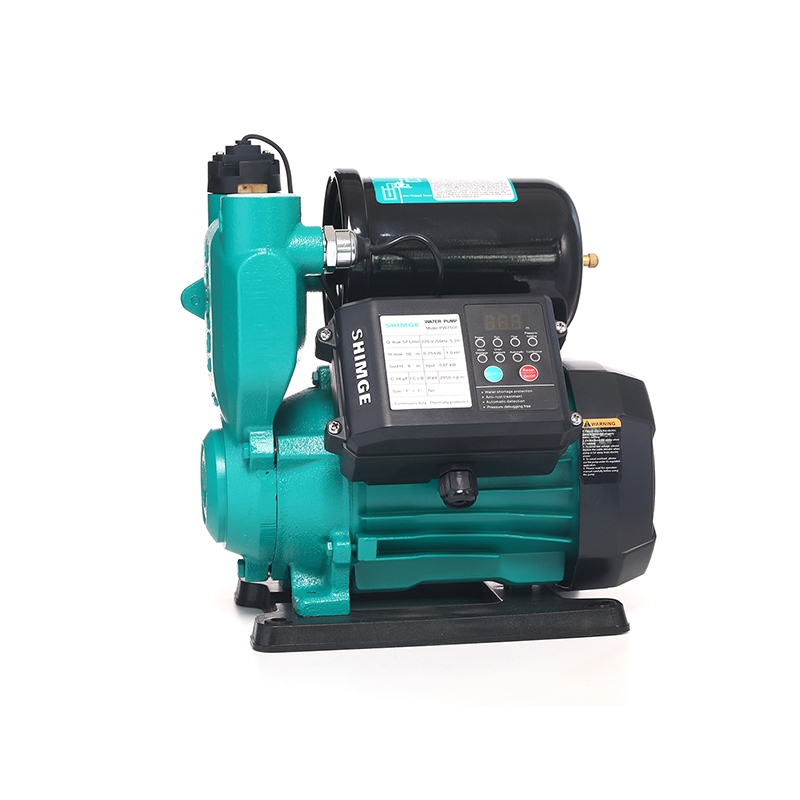

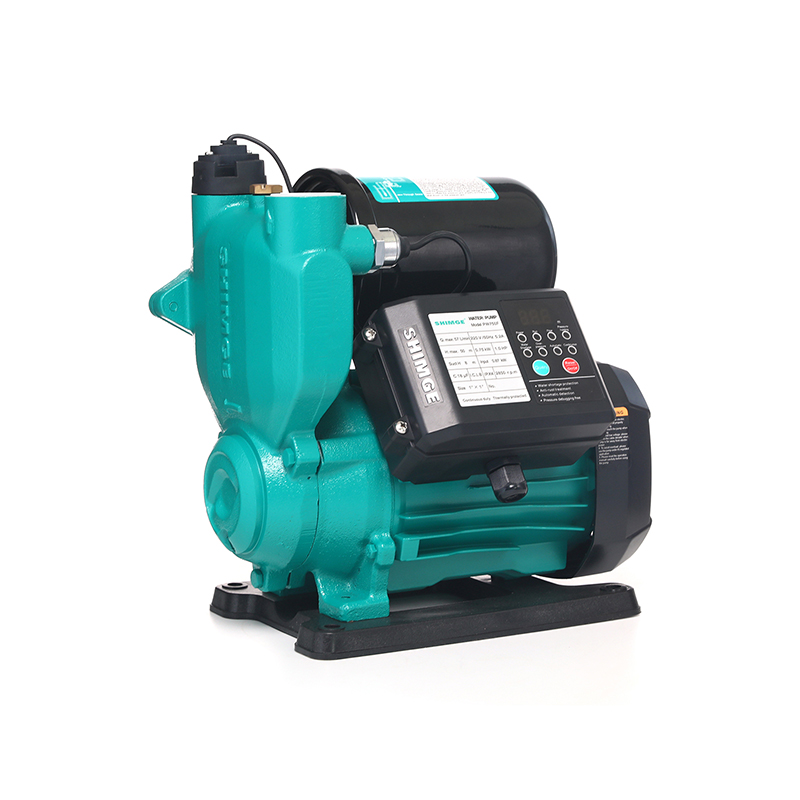

Automatic Self-Priming Water Pump
This automatic self-priming water pump is designed for domestic water supply and boosting applications. It features automatic start/stop operation based on water demand.
Technical Specifications
Overview
High-Efficiency Automatic Water Solution
This automatic self-priming water pump is engineered for reliable domestic water supply and pressure boosting applications. It utilizes an integrated electronic control system with flow and pressure sensors for seamless, on-demand operation. Designed for continuous duty, the unit features advanced protection against water shortages and thermal overload, ensuring long-term durability in residential and light commercial environments.
Performance Metrics
Flow Rate vs. Head Performance
| Flow (L/min) | Head (m) |
|---|---|
| 5 | 45 |
| 15 | 40 |
| 30 | 30 |
| 45 | 15 |
Key Operating Specifications
50 L/min
Max Flow Rate
50 m
Max Head
8 m
Suction Lift
0.75 kW
Motor Power
Technical Specifications
Electrical Requirements
- Voltage: 220-240V
- Frequency: 50/60Hz
- Continuous Duty Rated
- Thermally Protected
Protection Class
IPX4Water Shortage ProtectionAutomatic Detection
- Inlet/Outlet Size
- 1 inch x 1 inch
