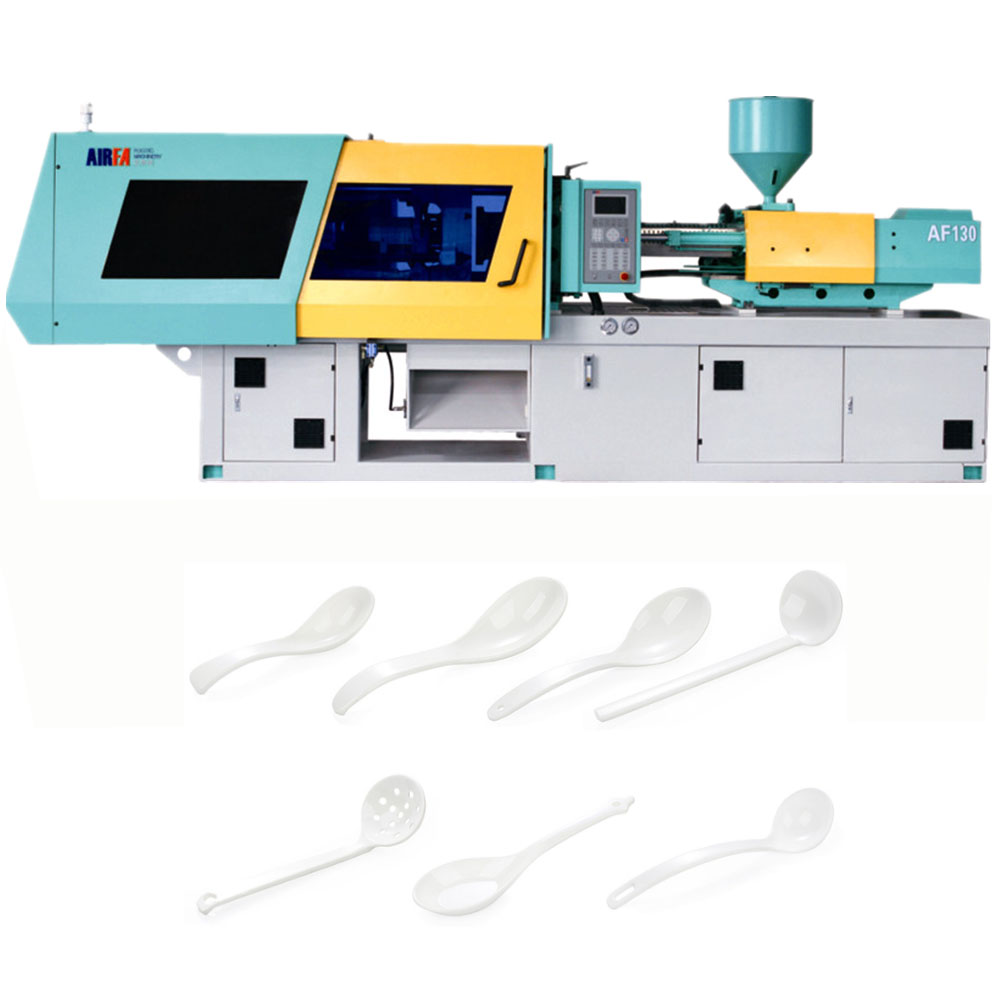

Automatic Plastic Spoon Injection Molding Machine
This automatic plastic injection molding machine is designed for high-volume production of plastic spoons. It features a fixed-pump hydraulic system for consistent and reliable operation.
Technical Specifications
Overview
High-Efficiency Automatic Injection Molding
This automatic plastic spoon injection molding machine is engineered for high-volume production with a focus on precision and energy efficiency. It features a double linear motion guide system and a robust hydraulic setup to ensure consistent part quality and reduced cycle times. Designed for demanding industrial environments, it offers a user-friendly interface and versatile platen layouts to accommodate various mold types.
Key Performance Metrics
Performance Highlights
0.3 %
Repeatability Precision
0.5 sec
Response Time
80 %
Max Energy Saving

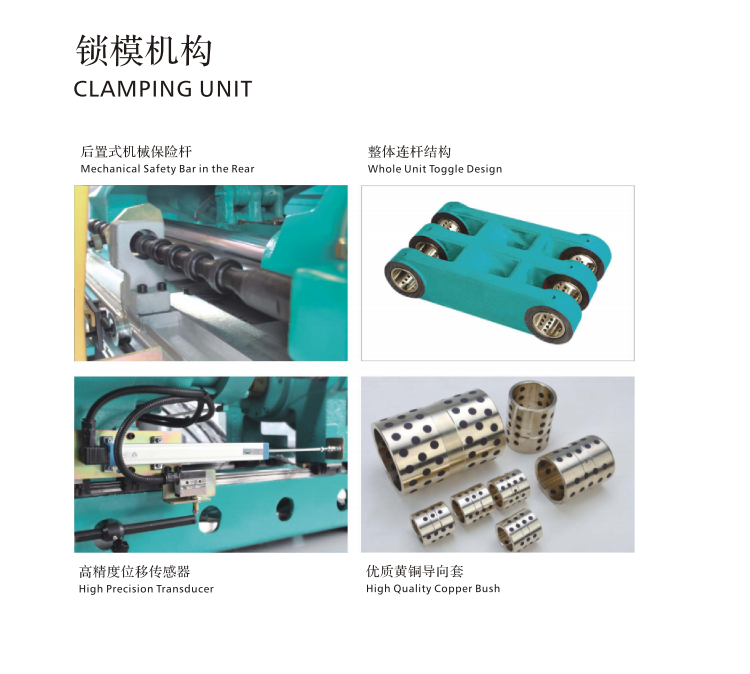

Clamping Unit
Clamping System Features
- Optimized platen design with high rigidity
- Euromap-based platen layout with T-slots and tap holes
- New ejection system with longer stroke and better rigidity
- Hydraulic driven gear-type mold height adjustment
- Mechanical safety interlock relocated for easier operation
- Linkage structure for front connecting rod for increased accuracy

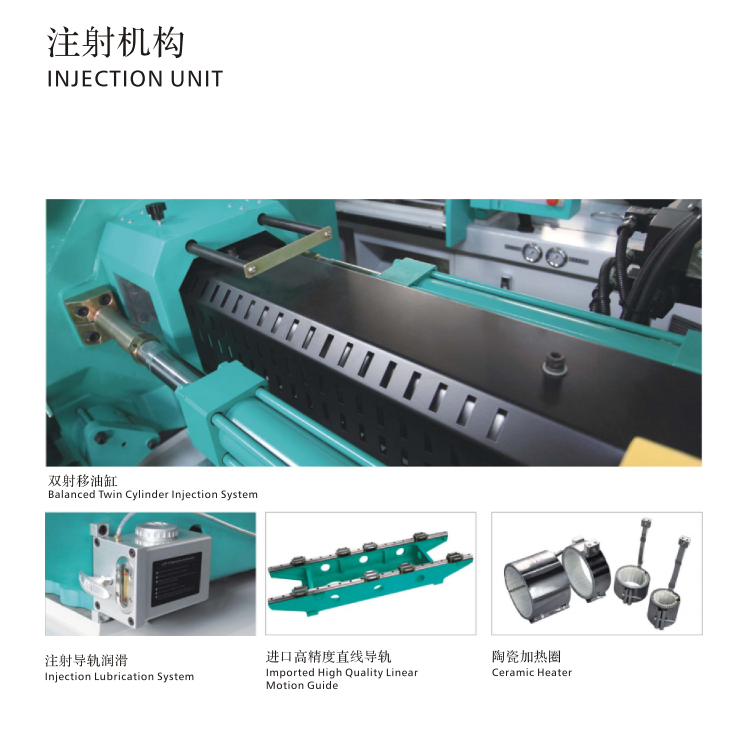

Injection Unit
Injection System Components
- High-quality linear motion guides for smooth process
- High speed and pressure injection structure
- Twin nozzle cylinder for stable structure
- Specialized screw barrel design
- Ceramic heaters for efficient heating

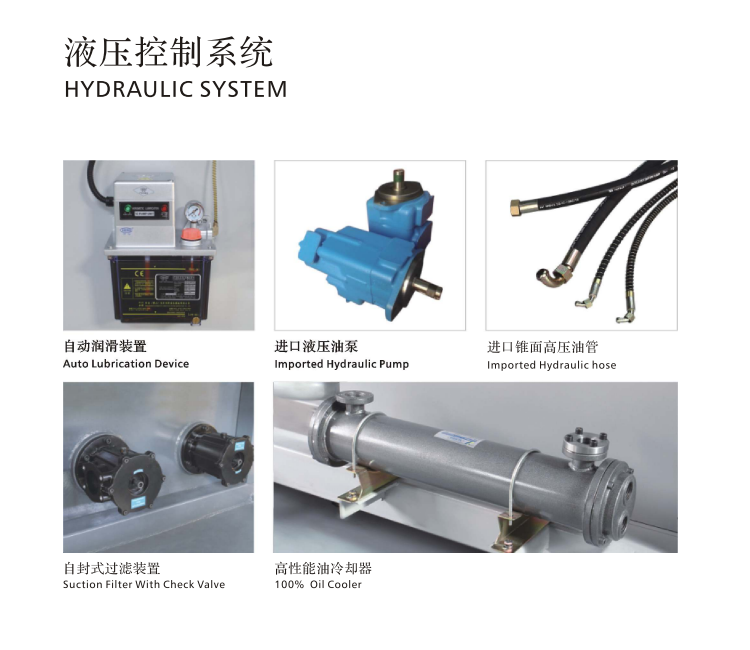

Hydraulic System
Hydraulic Control
- Double proportional compound valve for pressure and flow control
- Low noise imported high-quality pump
- Precise feedback control for accurate repeatability
- Low pressure mold protection system
- Independent grease and lubrication oil system
- High-performance oil cooler

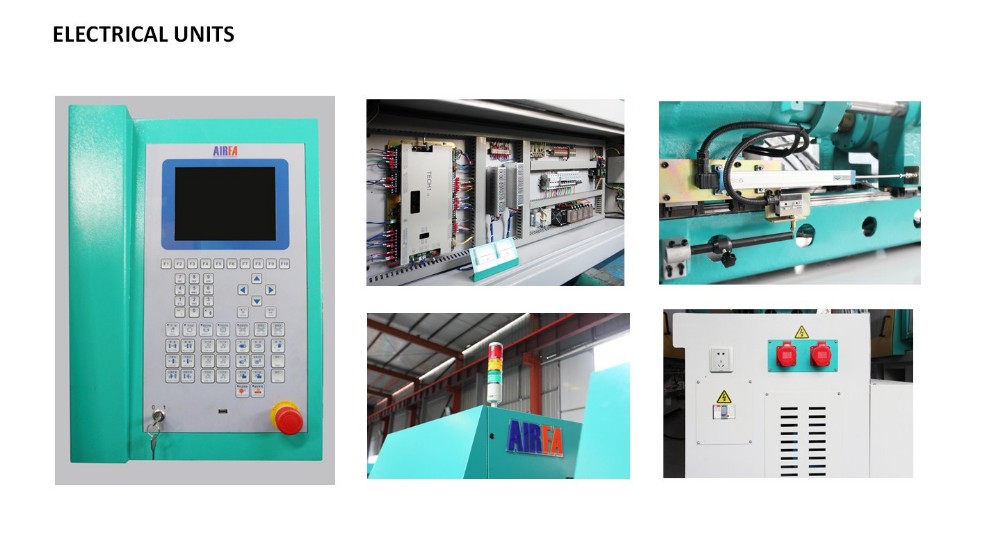

Electrical Control
Control System Specifications
| Feature | Specification |
|---|---|
| Display Size | 8.4 inch Screen |
| Resolution | 800 x 600 |
| CPU Type | Double CPU (X86 300MHz + RISC 140MHz) |
| Connectivity | USB 2.0 and Ethernet (100-base T) |
| I/O Points | 32 Points (Extendable) |
| Transducer Resolution | 1/65535 |
| Parameter Storage | 120 Technological Parameters |

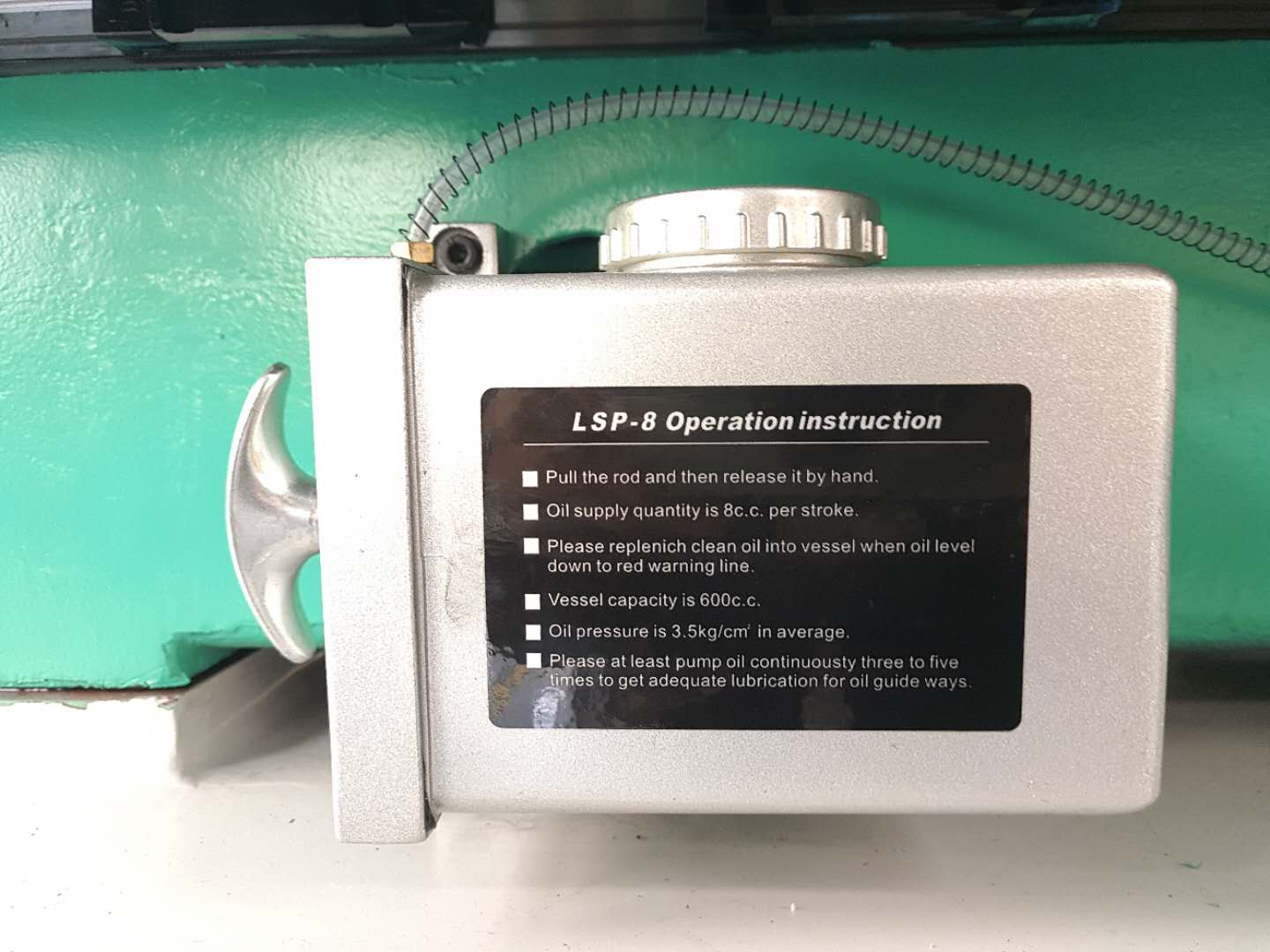

Lubrication System
Manual Lubrication Pump
| Parameter | Value |
|---|---|
| Oil Supply Quantity | 8 c.c. per stroke |
| Vessel Capacity | 600 c.c. |
| Average Oil Pressure | 3.5 kg/cm² |
Operational Benefits
- Operational Advantages
- Energy SavingLow NoiseWater Cooling SavingHigh SensitivityDustless Workshop Compatible
